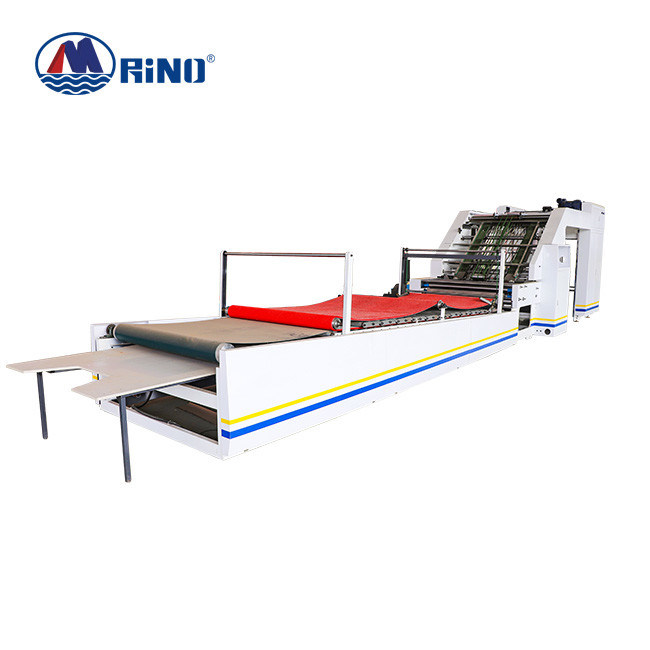

High Speed Flute Laminating Machine 13000 Pcs/H Max

Product Details:
Place of Origin: China
Brand Name: RINO
Certification: CE
Model Number: HF-H1450
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiation
Packaging Details: Wrapped with film or in wooden case
Delivery Time: 40-60 Working Days After Deposit
Payment Terms: L/C, T/T
Supply Ability: 20 Set/Month
  • Detail Information
  • Product Description

Detail Information

Name: High Speed Flute Laminating Machine Laminator 13000 Pcs/H Price Maximum Paper Size: 1450*1450mm
Minimum Paper Size: 450*450mm Maximum Speed: 13000 Pcs/H
Machine Dimension: 13500Lx2450Wx2600H Total Weight: 6.5Ton
Total Power: 22KW Laminate Precision (mm): ≤±1.5
High Light:

Flute Laminating Machine High Speed


13000 Pcs/H Flute Laminating Machine


13000 Pcs/H Flute Laminator Machine

Product Description

High Speed Flute Laminating Machine Laminator 13000 Pcs/H Price

Flute Laminatng Machine Introduction

Flute laminating machine is used for gluing top printed paper with corrugated board together,which is widely used in carton boxes and color boxes manufacturing in home and abroad.


This series of automatic paper laminating machine is the latest model, which has the advantages of high speed, convenient operation, reliable work, convenient maintenance, low noise and high precision. It will provide customers with better and more reliable equipment and help you obtain competitive quality in the market.

Main Parameter







Maximum size(mm) 1450*1450 1650*1650 1900*1650


Minimum size(mm) 450*450 450*450 450*500 450*500
Top feeding paper thickness 200g/m2-500g/m2 200g/m2-500g/m2 200g/m2-500g/m2 200g/m2-500g/m2
Bottom feeding paper thickness 0.5~10mm 0.5~10mm 0.5~10mm 0.5~10mm
Laminate precision (mm) ≤±1.5 ≤±1.5 ≤±1.5 ≤±1.5





Overall dimension





Total weight(t)


7.5 8.5 9.5
Total power 22KW 23KW 25KW 25KW

Main Units

High Speed Flute Laminating Machine 13000 Pcs/H Max 0

Top paper feeding unit
4 suckers for picking up paper and 4 suckers for conveying paper to ensure stable and fast paper feeding.

High Speed Flute Laminating Machine 13000 Pcs/H Max 1

Bottom paper feeding unit
Imported brand belt, good suction ability for the bottom sheet feeding.The bottom paper feeding adopts a widened and elongated bottom paper feeding belt, which is stable in paper feeding with Yaskawa servo control system, and the paper is fed with stability and precision with high-power suction fan. Each belt is tightened separately, (others have been changed to overall tightening in order to reduce costs).

Our Factory
High Speed Flute Laminating Machine 13000 Pcs/H Max 2
