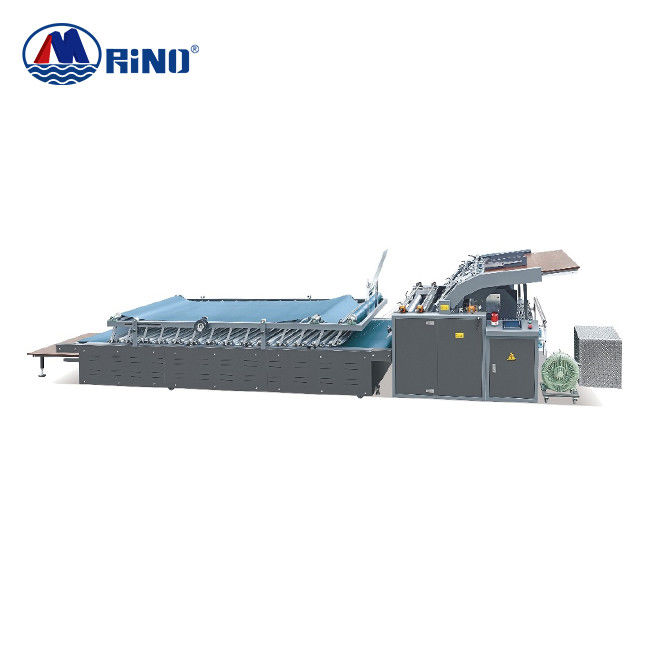

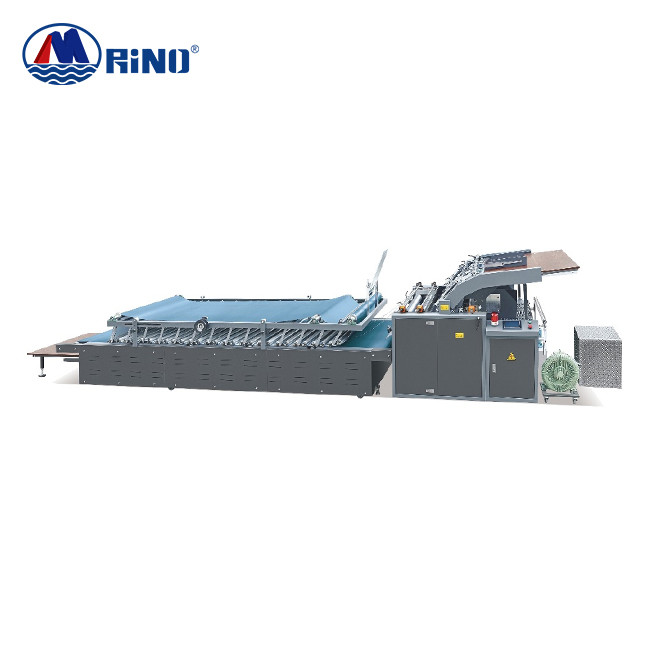

Corrugated Cardboard Semi Auto Flute Laminator Machine 80pcs/Min

Product Details:
Place of Origin: China
Brand Name: RINO
Certification: CE
Model Number: HF-S1600
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiation
Packaging Details: Wrapped with film or in wooden case
Delivery Time: 40-60 Working Days After Deposit
Payment Terms: T/T, L/C
Supply Ability: 50 Set/Month
  • Detail Information
  • Product Description

Detail Information

Maximum Size: 1600×1250mm Minimum Size: 360×360mm
Laminate Precision: ±1mm Speed: 80pcs/min
Total Power: 6kw Overall Dimension: 8.8×2.25×1.5m
Total Weight: 3500kg Voltage: 220V/380V
Name: Economic Corrugated Semi Automatic Paper Flute Laminator Machine
High Light:

semi auto flute laminator machine


80pcs/Min Flute Laminator Machine


Cardboard Flute Laminator Machine

Product Description

Semi Automatic Paper Flute Laminating Machine For Corrugated Cardboard
Performance of Flute Laminating Machine


The semi automatic paper flute laminating machine for corrugated cardboard is used to paste the paper and corrugated board togetther to make 3 ply board, 5 ply board. It is a convenient and useful machine in packing industry.
1.The new type servo laminator machie adopt double frequency conversion at the front and back of the machine.
2. The machine is automatic gluing and automatic washing gears, the glue is common type glue, it is easy to find, also we can provide you the proportion for the glue.
3. It is photoelectric alignment, screw attached pressing, to make the facial paper/label paper and bottom paper synchronous, to reduce error.
4. The bottom paper is vacuum suction feeding, the label paper/facial paper is feeding manually.
5. Transfer platform is stainless steel tube bridge stander.
6. Wheelbase adjustment bar adopts pressure bearing, worm wheel adjustment transmission shaft is double dis double bearing and balance processing.
7. All the main equipment parts are famous brand, such as Schneider, Delta, Omron, it has long using life, good stability, to ensure the realiability of the electric components during the using process. For the bearing, we use Chinese famous brand. Also we can use the brand as you request.
Parameter of Flute Laminating Machine







Maximum size 1300×1100mm 1400×1250mm 1500×1250mm 1600×1250mm
Minimum size 360×360mm 360×360mm 360×360mm 360×360mm
Laminate precision ±1mm ±1mm ±1mm ±1mm
Speed 80/min 80/min 80/min 80/min
Total power 6kw 6kw 6.5kw 6.5kw
Overall dimension 8.8×1.95×1.5m 8.8×2.05×1.5m 8.8×2.15×1.5m 8.8×2.25×1.5m
Total weight 3t 3t 3.5t 3.5t

Main Units


Corrugated Cardboard Semi Auto Flute Laminator Machine 80pcs/Min 0

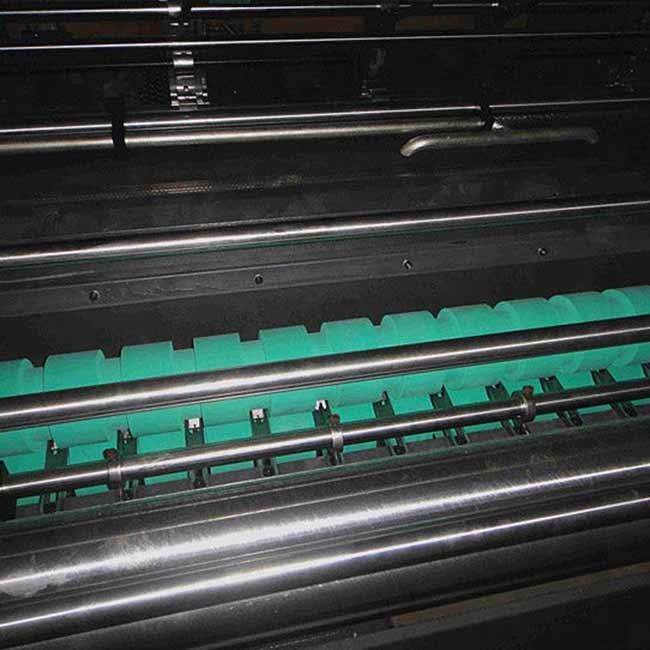

Gluing unit

The gluing roller is stainless steel anilox roller. The coating is uniform and the operation is stable. About 25-35 grams of glue per square meter, the amount of glue used is reduced by 50% .
Corrugated Cardboard Semi Auto Flute Laminator Machine 80pcs/Min 1

Electrical unit

Most of our electrical components are imported from Japan, France, Germany and other developed countries, which can ensure machine quality and extend the service life.



Our Factory
 Corrugated Cardboard Semi Auto Flute Laminator Machine 80pcs/Min 2

Corrugated Cardboard Semi Auto Flute Laminator Machine 80pcs/Min 3
