Product Details:
|
|
| Place of Origin: | China |
|---|---|
| Brand Name: | RINO |
| Certification: | CE |
| Model Number: | HF-S1500 |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 1 Set |
| Price: | Negotiation |
| Packaging Details: | Wrapped with film or in wooden case |
| Delivery Time: | 40-60 Working Days After Deposit |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 50 Set/Month |
|
Detail Information |
|||
| Maximum Size: | 1500×1250mm | Minimum Size: | 360×360mm |
|---|---|---|---|
| Laminate Precision: | ±1mm | Speed: | 80pcs/min |
| Total Power: | 6.5kw | Overall Dimension: | 8.8×2.15×1.5m |
| Total Weight: | 3.5t | Voltage: | 220V/380V |

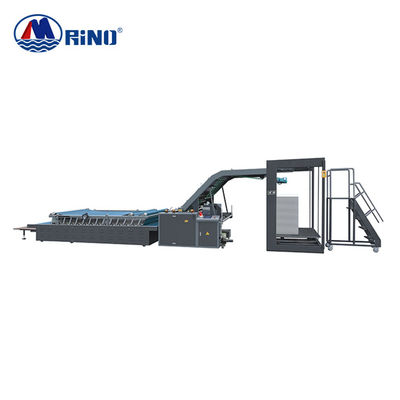

| Name: | Semi Automatic Corrugated Board Flute Laminating Machine With Lifting Platform | ||
| High Light: | 1500×1250mm Cardboard Laminating Machine,6.5kw Cardboard Laminating Machine,Semi Auto Paper Board Lamination Machine |
||
Product Description

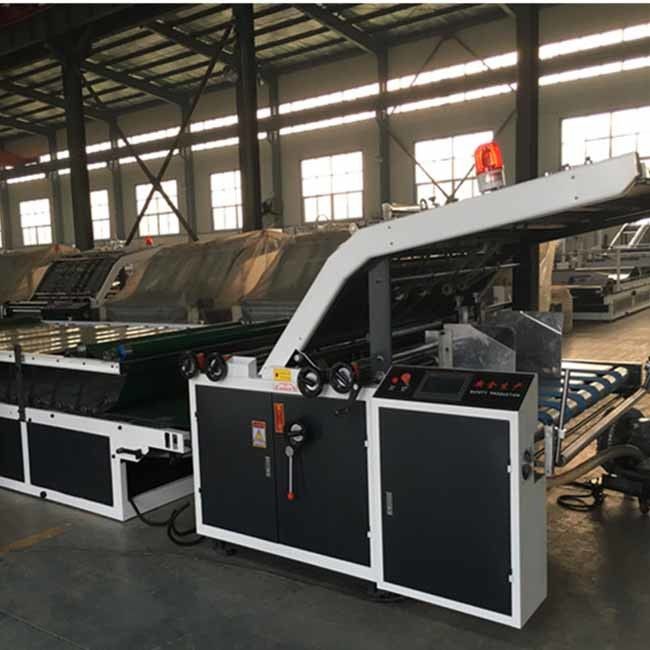

Semi Automatic Paper Flute Laminating Machine For Corrugated Cardboard
Performance of Flute Laminating Machine
Semi-automatic flute laminating machine is suitable for the production of small batch orders, small-scale factories or auxiliary equipment for small orders in large factories. The speed is about 2000-3000 sheets per hour, and the thicker paperboard with serious deformation can be laminated, the speed of the machine is adjusted quickly, and the operation is simple. Compared with fully automatic, the laminating accuracy is not high, the stability is not strong, and the speed is limited. But It can be equipped with an automatic lifting platform. The facial paper can be stacked 1.5m at a time, saving time and labor.
Parameter of Flute Laminating Machine
| Model |
HF-S1300 |
HF-S1400 |
HF-S1500 |
HF-S1600 |
| Maximum size | 1300×1100mm | 1400×1250mm | 1500×1250mm | 1600×1250mm |
| Minimum size | 360×360mm | 360×360mm | 360×360mm | 360×360mm |
| Laminate precision | ±1mm | ±1mm | ±1mm | ±1mm |
| Speed | 80/min | 80/min | 80/min | 80/min |
| Total power | 6kw | 6kw | 6.5kw | 6.5kw |
| Overall dimension | 8.8×1.95×1.5m | 8.8×2.05×1.5m | 8.8×2.15×1.5m | 8.8×2.25×1.5m |
| Total weight | 3t | 3t | 3.5t | 3.5t |
Main Units
|
|
Gluing unit
Automatic circulation glue supply system, equipped with liquid level detection needle, so the glue can be recycled while avoiding waste of glue.
|
|
|
Electrical unit
Most of our electrical components are imported from Japan, France, Germany and other developed countries, which can ensure machine quality and extend the service life.
|
