Product Details:
|
|
| Place of Origin: | China |
|---|---|
| Brand Name: | RINO |
| Certification: | CE |
| Model Number: | HF-S1400 |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 1 Set |
| Price: | Negotiation |
| Packaging Details: | Wrapped with film or in wooden case |
| Delivery Time: | 40-60 Working Days After Deposit |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 50 Set/Month |
|
Detail Information |
|||
| Maximum Size: | 1400×1250mm | Minimum Size: | 360×360mm |
|---|---|---|---|
| Laminate Precision: | ±1mm | Speed: | 80pcs/min |
| Total Power: | 6kw | Overall Dimension: | 8.8×2.05×1.5m |
| Total Weight: | 3000kg | Voltage: | 220V/380V |
| Name: | Semi Automatic Paper Flute Laminating Machine For Corrugated Cardboard | ||
| High Light: | Paper Flute Laminating Machine,6kw flute laminating machine,Cardboard semi automatic flute laminator |
||
Product Description

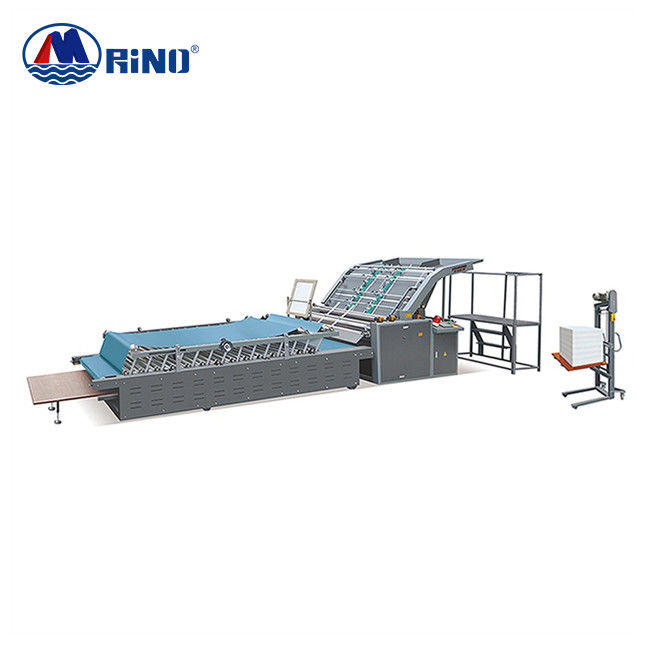

Semi Automatic Paper Flute Laminating Machine For Corrugated Cardboard
Performance of Flute Laminating Machine
1. Adopt the bottom paper push the rules walk paper of way, insure the fixed position more accurate.
2. The adoption imports the electric appliances component, safe credibility.

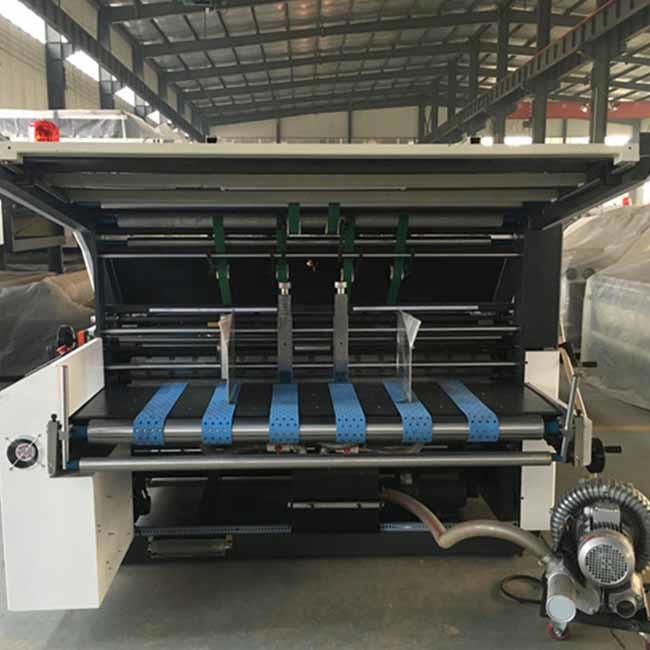

3. Adopt the bottom paper absorbs the breeze leather belt to transport, succeeding to solve the corrugated arch hard nut to crack.
4. Apply to face the paper gram heavy>200gs/m2, the bottom paper>250gs/m2, the ABCEF corrugated paper and carton.
Parameter of Flute Laminating Machine
| Model |
HF-S1300 |
HF-S1400 |
HF-S1500 |
HF-S1600 |
| Maximum size | 1300×1100mm | 1400×1250mm | 1500×1250mm | 1600×1250mm |
| Minimum size | 360×360mm | 360×360mm | 360×360mm | 360×360mm |
| Laminate precision | ±1mm | ±1mm | ±1mm | ±1mm |
| Speed | 80/min | 80/min | 80/min | 80/min |
| Total power | 6kw | 6kw | 6.5kw | 6.5kw |
| Overall dimension | 8.8×1.95×1.5m | 8.8×2.05×1.5m | 8.8×2.15×1.5m | 8.8×2.25×1.5m |
| Total weight | 3t | 3t | 3.5t | 3.5t |
Main Units
|
|
Gluing unit
The gluing roller is stainless steel anilox roller. The coating is uniform and the operation is stable. About 25-35 grams of glue per square meter, the amount of glue used is reduced by 50% .
|
|
|
Electrical unit
Most of our electrical components are imported from Japan, France, Germany and other developed countries, which can ensure machine quality and extend the service life.
|
Our Factory
