Product Details:
|
|
| Place of Origin: | China |
|---|---|
| Brand Name: | RINO |
| Certification: | CE |
| Model Number: | HF-A1500 |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 1 Set |
| Price: | Negotiation |
| Packaging Details: | Wrapped with film or in wooden case |
| Delivery Time: | 40-60 Working Days After Deposit |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 10 Set/Month |
|
Detail Information |
|||
| Name: | Automatic Corrugated Paper Cardboard Flute Laminating Machine Flute Laminator | Maximum Size: | 1500mm×1250mm |
|---|---|---|---|
| Minimum Size: | 400mm×400mm | Design Speed: | 8000pcs/h |
| Working Speed: | 6000pcs/h | Laminate Precision: | ≤±1.5mm |
| Total Power: | 12kw | Size: | 13.5m×2.25m×2.4m |
| High Light: | 6000pcs/H Flute Lamination Pasting Machine,12kw Flute Lamination Pasting Machine |
||
Product Description

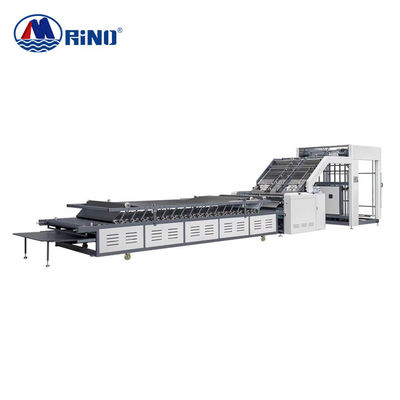

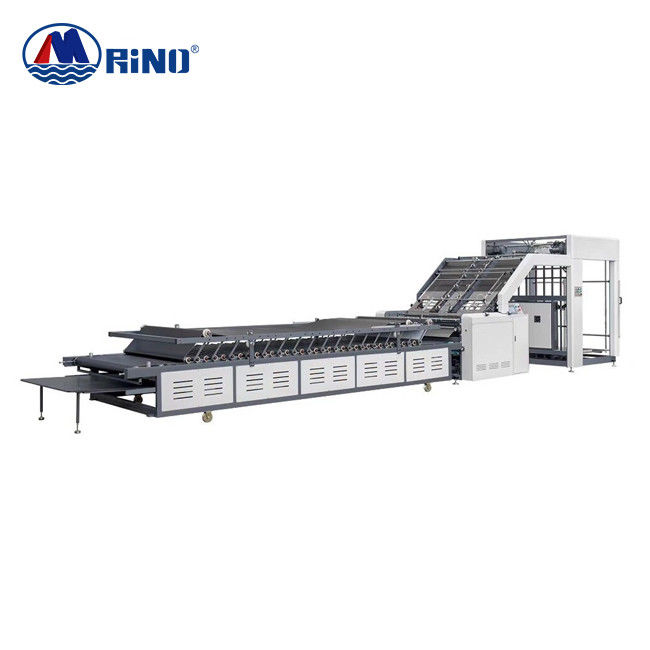

Automatic Corrugated Paper Cardboard Flute Laminating Machine Flute Laminator
Basic Configuration of Flute Laminating Machine
1. Measure roller line-speed design scientifically, avoid glue fly out when the speed is high.

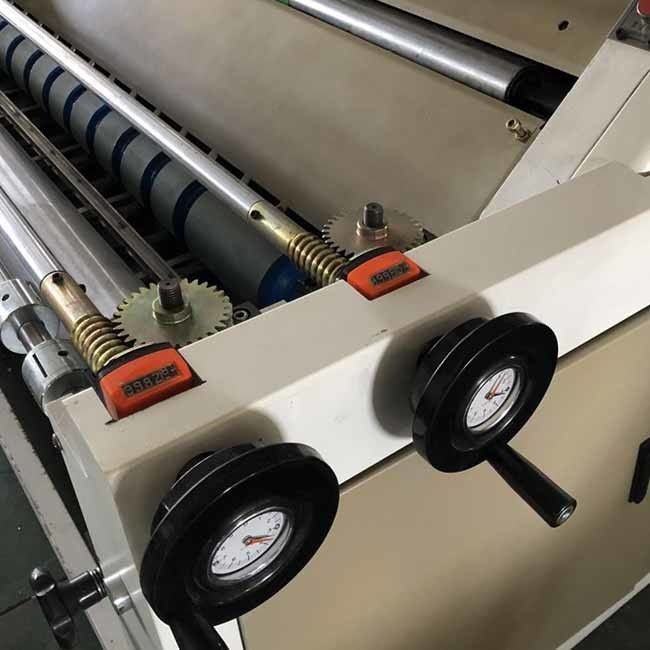

2. Pressure rollers adopt unilateral adjustment, convenient and fast.
3. Cleaning type : bottom roller is extruded by rubber roller to clean the bottom laminating pressure roller, ensure the cleaner on the reverse of the bottom paper . Make glue etc. foreign matter after washing direct subside in tank. At the same time , adopting the gear and chain to control the lifting of tank, can take out the tank easily and convenient to wash .
4. he pressure conveyor adopt floating movable structure , total length 5m , equipped with 28 paper pressing rollers , make the cardboard uniform bearing strength in pressing process.
5. Counter designs scientifically, easy recording the amount you have been worked.
6. Small pressure table (optional) . length 2.5m , big pressure table length 5m.
Main Parameter of Flute Laminating Machine
| Model | HL-A1300 |
HF-A1400 |
HF-A1500 |
HF-A1600 |
| Max laminating size | 1300mm×1250mm | 1400mm×1250mm | 1500mm×1250mm | 1600mm×1250mm |
| Min laminating size | 400mm×400mm | 400mm×400mm | 400mm×400mm | 400mm×400mm |
| Economic speed | 0-100sheets/min | 0-100sheets/min | 0-100sheets/min | 0-100sheets/min |
| Laminating precision | ±1.5 | ±1.5 | ±1.5 | ±1.5 |
| Power | 10kw | 12kw | 12kw | 12kw |
| Size | 13.5m×2m×2.4m | 13.5m×2.05m×2.4m | 13.5m×2.15m×2.4m | 13.5m×2.25m×2.4m |
| Weight | About 4.8t | About 5t | About 5.2t | About 5.4t |
| Bottom paper thickness | A/B/C/E/F flute,2/ 3/4/5/7/ layer , less than 12mm thickness | |||
| Surface paper gram weight | 150-600 g/m2 | |||
Main Units
|
|
Top feeding unit
|
|
|
Gluing unit
|
Factory of Flute Laminating Machine
