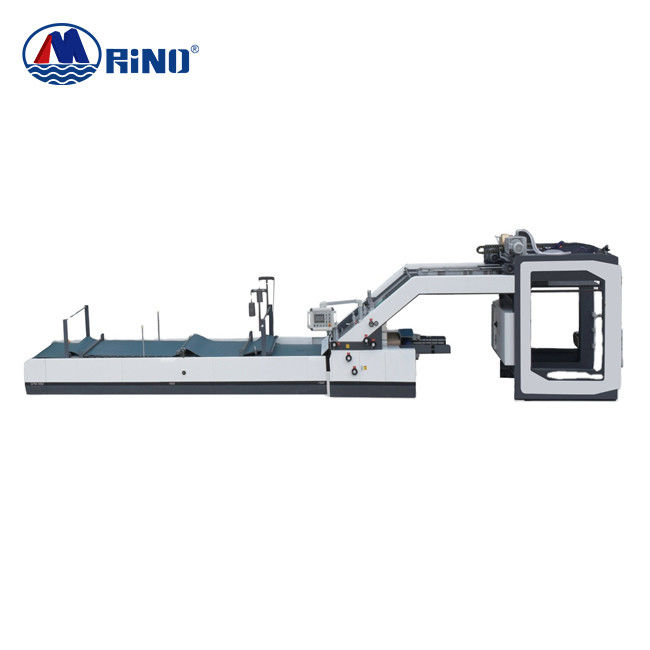

High Accuracy Automatic Flute Laminator 1400×1250mm Non Stop Feeding

Product Description

High Accuracy Optional Non-Stop Feeding Automatic Laminator Flute Laminating Machine

 Basic Configuration of Flute Laminating Machine

1. Advanced automatic tracking technology, automatically adjust the relevant parameters according to the paper size, so that the machine is always running in the best condition
2. Unique pre-positioning system, the accuracy and the bottom paper will never exceed the standard; the top paper can be adjusted beyond the limit
3. Equipped with high-precision and high-speed automatic paper feeder, enhanced paper feeding device, smooth paper feeding
4. Using the principle of offset printing machine side positioning, error correction of the left and right top paper stacks and paper feeding process
5. The bottom paper is automatically fed by suction, the wind force can be adjusted in the touch screen, and it is equipped with a belt humidification function
6. The spare stacking table can stack paper without stopping the machine, and enter the elevator along the guide rail, which has high working efficiency.
7. Imported electrical components to ensure the stability of the circuit system. PLC tracking technology, automatic fault alarm
8. Fully automatic glue filling system, which can automatically make up the loss of glue volume and cooperate with glue recovery
9. The independent water tank controls the circulation to ensure the backing of the bottom paper is dry, and at the same time clean the drum, the glue tank, and the glue tank
10. The pressure of the roller is adjusted on one side, and equipped with a dial indicator, the bottom paper can be replaced in one step


Main Parameter of Flute Laminating Machine




Main Units

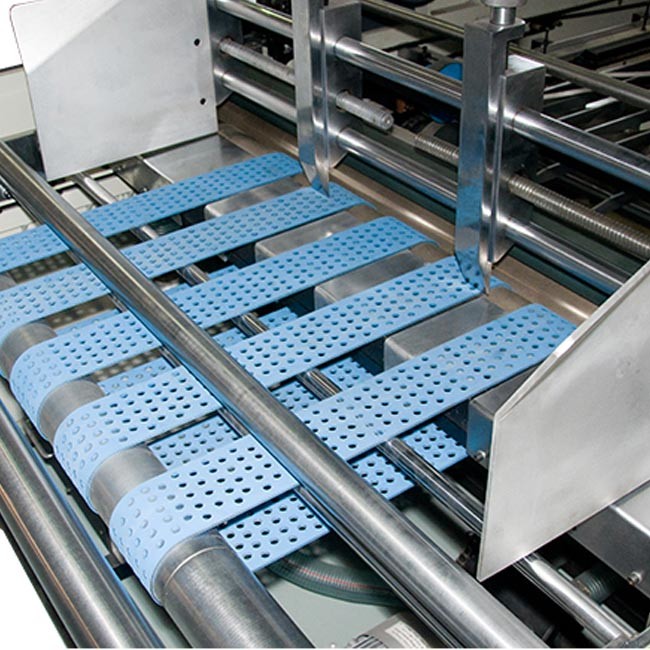

Top feeding unit 1.High precision high speed feeder , make the feeding smooth . 2.Strengthen type feeder device , the suction mouth angle can be adjustable , according to different kinds of surface paper .

Gluing unit Stainless steel material roller,never rust, guarentee the amount of glue is even.

Factory of Flute Laminating Machine
