Product Details:
|
|
| Place of Origin: | China |
|---|---|
| Brand Name: | RINO |
| Certification: | CE |
| Model Number: | HF-H1300 |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 1 Set |
| Price: | Negotiation |
| Packaging Details: | Wrapped with film or in wooden case |
| Delivery Time: | 40-60 Working Days After Deposit |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 20 Set/Month |
|
Detail Information |
|||
| Name: | Corrugated Cardboard High Speed Automatic Flute Laminating Machine 13000 Pcs | Maximum Paper Size: | 1100*1300mm |
|---|---|---|---|
| Minimum Paper Size: | 400*400mm | Maximum Speed: | 12000 Pcs/Hour |
| Machine Overall Dimension: | 13600×2050× 2600mmmm | Total Weight: | 8Ton |
| Total Power: | 16.6KW | Laminate Precision (mm): | ≤±1.5 |
| High Light: | 12000 Pcs/Hour Flute Laminating Machine,16.6KW Flute Laminating Machine,5 layer Flute Laminating Machine |
||
Product Description

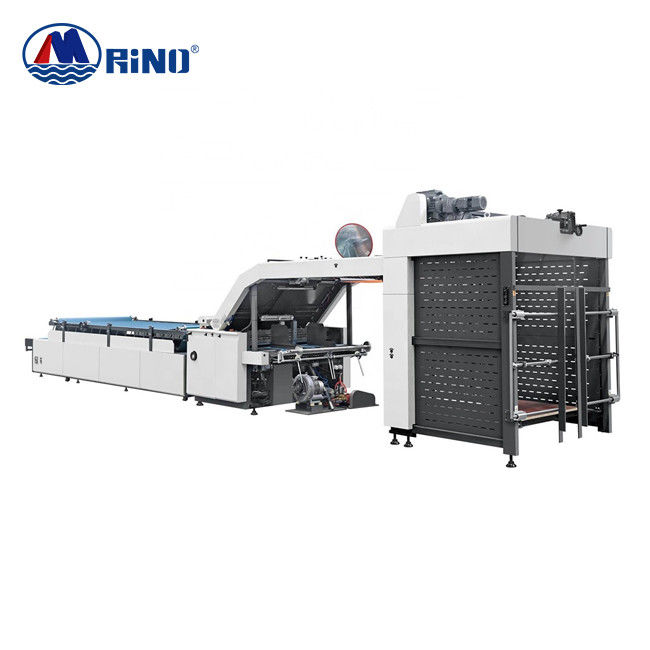

Corrugated Cardboard High Speed Automatic Flute Laminating Machine 13000 Pcs
Flute Laminatng Machine Introduction
1. With memory function, intelligent operation, quick change of production.
2. Intelligent automatic adjustment structure, automatic adjustment according to the input paper size.
3. The servo motor compensates for positioning to ensure the accuracy of the front register and fits; the heavy-duty structure ensures high-speed operation and long life of the machine.
4. Cardboard and cardboard composite, cardboard and corrugated cardboard composite, also suitable for cardboard, heavy corrugated and thick cardboard, a machine with multiple uses, saving purchase costs.
5. Remote control, fast and convenient.
6. Paper feeding without stopping, continuous production without stopping. Sheet can be flanged or without flanging function, one key adjustment
Main Parameter
| Model |
HF-H1300 |
|
Maximum size (W*L)(mm) |
1100*1300 |
|
Minimum size (W*L)(mm) |
400*400 |
| Top feeding paper thickness | 200g/m2-1100g/m2 |
| Bottom feeding paper thickness | 0.5-10mm |
| Laminate precision (mm) | ≤±1.5 |
| Max.Speed (p/hour) | 13000 |
| Overall dimension |
13600×2050× 2600mm |
| Total weight | 8000kg |
| Total power | 16.6KW |
Main Units
|
|
Top paper feeding unit
Equipped with high speed auto dedicated feeder, both paper lifting and feeding nozzle can freely adjust angle to the paper, to ensure that whether thick or thin paper can be delivered rapidly and smoothly.
|
|
|
Bottom paper feeding unit
The unique suction belt paper feeding mechanism can realize the smooth and accurate conveying of cardboards of more than 300 grams and A, B, C, E, F corrugated cardboard.
|
|
|

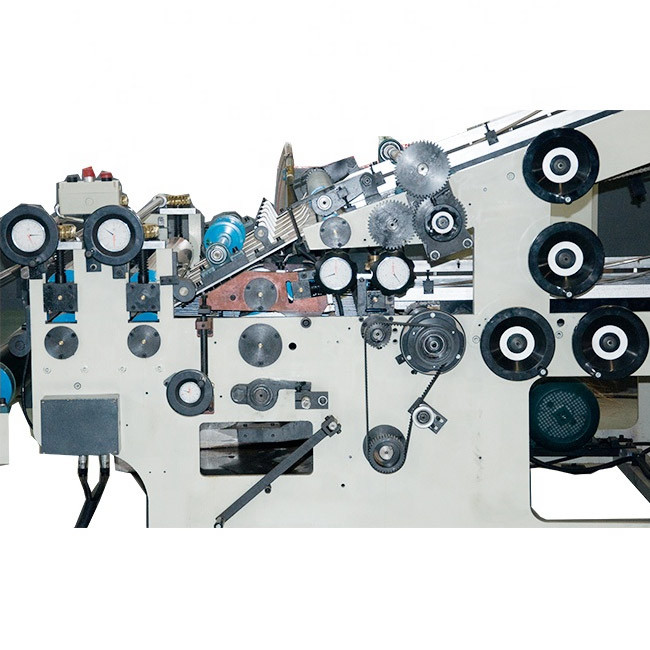

Transmission system
Imported synchronous belt is used as the transmission part, which is soft, strong, durable, wear-resistant, tensile-resistant and heat-resistant. It guarantees synchronization accuracy with the synchronous pulley. The lamination error can be controlled within ±1.5mm, and the paper damage rate can be reduced.
|
