Product Details:
|
|
| Place of Origin: | China |
|---|---|
| Brand Name: | RINO |
| Certification: | CE |
| Model Number: | HF-M1600 |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 1 Set |
| Price: | Negotiation |
| Packaging Details: | Wrapped with film or in wooden case |
| Delivery Time: | 40-60 Working Days After Deposit |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 20 Set/Month |
|
Detail Information |
|||
| Name: | 5 Ply Multi-Layer Flute Laminator Corrugated Board Automatic Flute Laminating Machine | Maximum Paper Size: | 1600*1100mm |
|---|---|---|---|
| Minimum Paper Size: | 400*400mm | Max. Speed: | 5000Pcs/H |
| Overall Length: | 14.3m | Total Weight: | 10.5T |
| Total Power: | 16KW | Laminate Precision (mm): | ≤±1.5 |
| High Light: | 1600*1100mm Flute Laminating Machine,5000Pcs/H 5 Ply Flute Laminator,5 Ply Flute Laminator |
||
Product Description

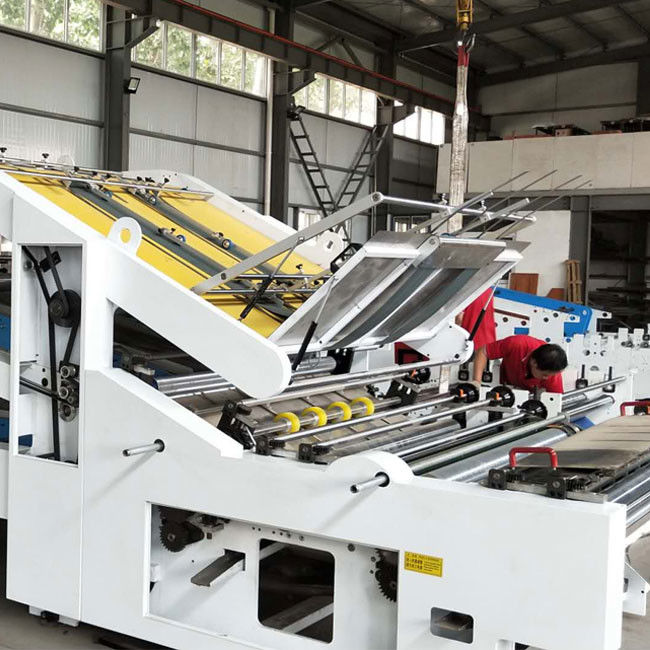

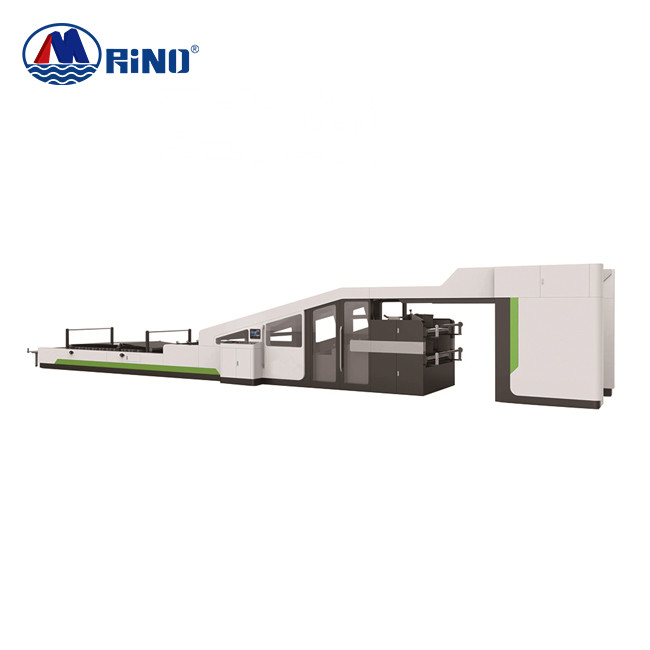

5 Ply Multi-Layer Flute Laminator Corrugated Board Automatic Flute Laminating Machine
Flute Laminatng Machine Introduction
Our company specializes in the production of fully automatic paper laminating machines, used in the printing and packaging industry for cardboard + corrugated paper + corrugated paper. Applicable corrugations are A, B, C, E, F, N, three-layer, five-layer, and seven-layer. It can work normally, the laminated paper has good flatness and high precision, which reduces the customer's purchase cost.
The main parts and components of the whole machine adopt original products from well-known domestic manufacturers, with long life and good stability. The electrical part adopts world-renowned brands, and the bearings of the whole machine are imported bearings. The drums of the whole machine have been corrected for dynamic and static balance, ensuring the stable performance of the whole machine.
The whole machine has the advantages of good stability, accurate mounting, easy operation, low wear, time saving, labor saving, and easy maintenance.
Main Parameter
| Model | HF-M1300 | HF-M1450 | HF-M1600 |
| Maximum paper size L*W(mm) | 1300*1100 | 1450*1100 | 1600*1100 |
| Minimum paper size L*W (mm) | 400*400 | 400*400 | 400*400 |
| Bottom paper Min(g/m²) | 300 | 300 | 300 |
| Bottom paper Max(g/m²) | 800 | 800 | 800 |
| Max.thickness(mm) | 10 | 10 | 10 |
| Bottom paper Min(g/m²) | 180 | 180 | 180 |
| Bottom paper Max(g/m²) | 800 | 800 | 800 |
| Precision | ±1.5mm | ±1.5mm | ±1.5mm |
| Total power(KW) | 14 | 15 | 16 |
| Speed(pcs/min) | 0-100 | 0-100 | 0-100 |
| Total length(m) | 13.8 | 14 | 14.3 |
| Weight(t) | 8 | 9.5 | 10.5 |
Main Units
|
|
Top paper feeding unit
Adopt the uniquely designed paper feed head, which can suck the air forcefully, feed the paper smoothly, and stably.
|
|
|
Bottom paper feeding unit
Use imported Servo motor electric controlling system, with Japan suction belt to make suction power inverter, and belt cleaned by water roller, Patented technology to ensure corrugate and cardboard goes out smoothly and simple operation.
|
