Product Details:
|
|
| Place of Origin: | China |
|---|---|
| Brand Name: | RINO |
| Certification: | CE |
| Model Number: | HF-H2100 |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 1 Set |
| Price: | Negotiation |
| Packaging Details: | Wrapped with film or in wooden case |
| Delivery Time: | 40-60 Working Days After Deposit |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 20 Set/Month |
|
Detail Information |
|||

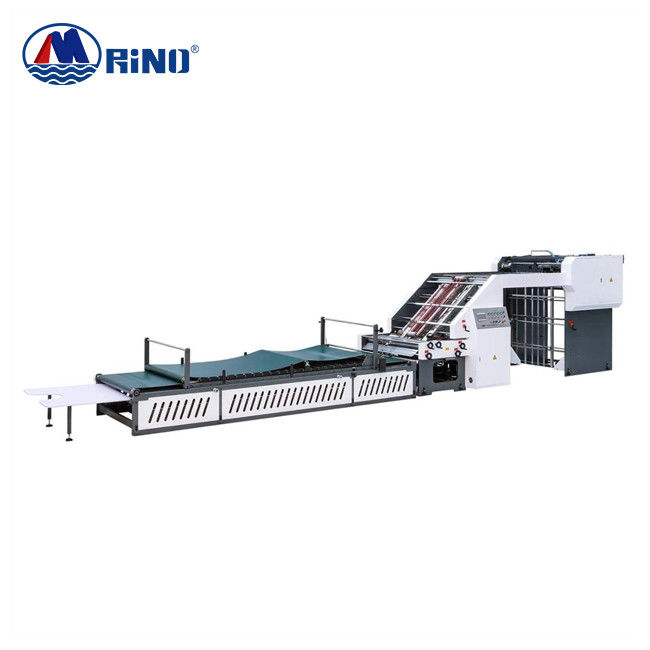

| Name: | Automatic High Speed 2100mm Flute Laminating Machine Flute Laminator Machine | Maximum Paper Size: | 2100×1650mm |
|---|---|---|---|
| Minimum Paper Size: | 450*500mm | Max. Speed: | 200 P/M |
| Overall Dimension: | 13900Lx3100Wx2600H | Total Weight: | 9.5T |
| Total Power: | 25KW | Laminate Precision (mm): | ≤±1.5 |
| High Light: | 200 P/M Auto Flute Laminator,2100mm Auto Flute Laminator,CE Auto Flute Laminator |
||
Product Description
1. To achieve high efficient and stable operation, main parts of equipment all imported
2. Top sheet feeding mechanism: equipped with high speed auto dedicated feeder, both paper lifting and feeding nozzle can freely adjust angle to the paper, to ensure that whether thick or thin paper can be delivered rapidly and smoothly
3. Top sheet lifting table: adopting large ratio of high strength turbine reducer to make sure the instant speed stability
4. Top sheet pilling table: Unique idea E-type with double gaps device design can allow sheet to be pushed directly by hand forklift, shorten paper stacking time and improve the efficiency, and also can be installed the orbit type auxiliary pile board
5. Bottom paper drive: Use imported Servo motor electric controlling system to guarantee high sensitivity and high speed operation
6. Bottom paper feeding: Patented technology to ensure corrugate and cardboard goes out smoothly and simple operation
7. Glue roller: Stainless steel roller, never rust, after narrowly grinding, guaranteed the minimum amount glue coated evenly
Main Parameter
| Model |
HF-H1450 |
HF-H1650 |
HF-H1900 |
HF-H2100 |
| Maximum size(mm) | 1450*1450 | 1650*1650 | 1900*1650 |
2100×1650
|
| Minimum size(mm) | 450*450 | 450*450 | 450*500 | 450*500 |
| Top feeding paper thickness | 200g/m2-500g/m2 | 200g/m2-500g/m2 | 200g/m2-500g/m2 | 200g/m2-500g/m2 |
| Bottom feeding paper thickness | 0.5~10mm | 0.5~10mm | 0.5~10mm | 0.5~10mm |
| Laminate precision (mm) | ≤±1.5 | ≤±1.5 | ≤±1.5 | ≤±1.5 |
| Max.Speed |
150m/min
|
150m/min
|
150m/min
|
150m/min
|
| Overall dimension |
13500Lx2450Wx2600H
|
13900Lx2700Wx2600H
|
14500Lx2950Wx2600H |
13900Lx3100Wx2600H
|
| Total weight(t) |
6.5
|
7.5 | 8.5 | 9.5 |
| Total power | 22KW | 23KW | 25KW | 25KW |
Main Units
|
|

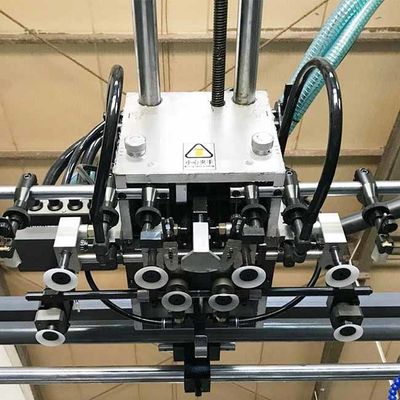

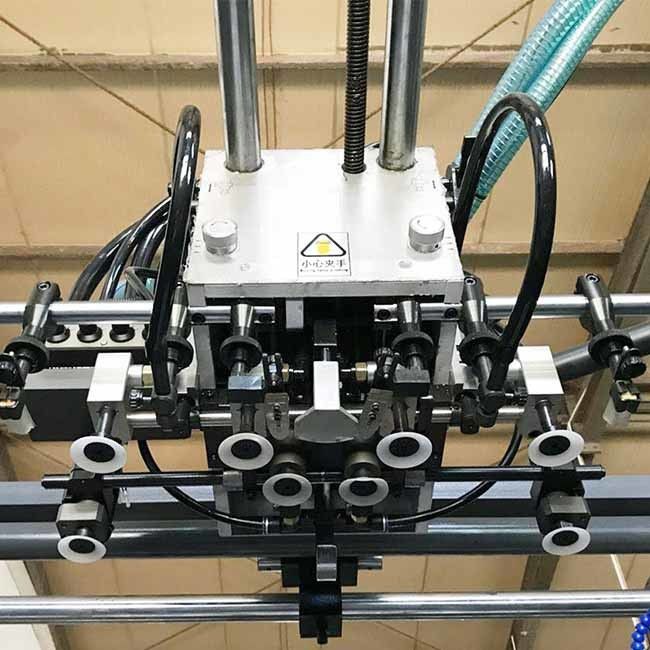

Top paper feeding unit
Top sheet feeding mechanism: equipped with high speed auto dedicated feeder, both paper lifting and feeding nozzle can freely adjust angle to the paper, to ensure that whether thick or thin paper can be delivered rapidly and smoothly.
|
|
|
Bottom paper feeding unit
Bottom paper feeding: Use imported Servo motor electric controlling system, with suction belt to make suction power inverter, and belt cleaned by water roller; Patented technology to ensure corrugate and cardboard goes out smoothly and simple operation.
|
|
|
Positioning unit
Left and right side synchronous block complete the accurate positioning, both top sheet and bottom paper are equipped with accurate positioning device on left and right.
|

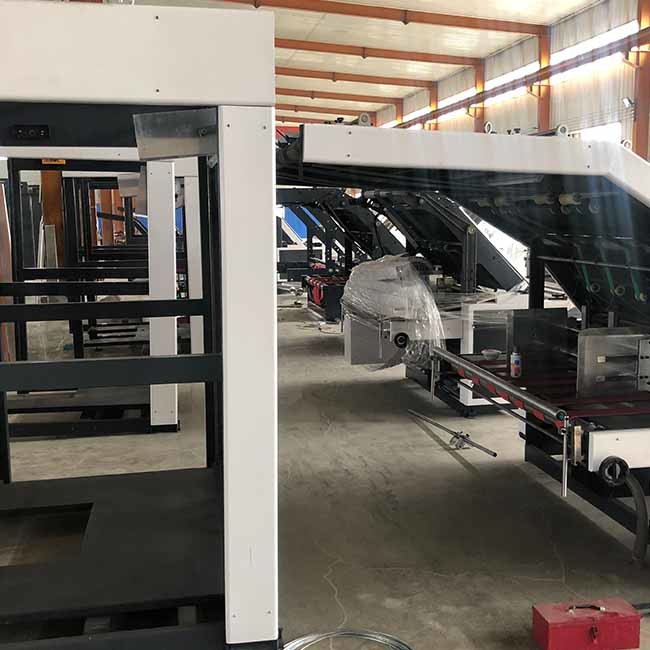

Our Factory
