Product Details:
|
|
| Place of Origin: | China |
|---|---|
| Brand Name: | RINO |
| Certification: | CE |
| Model Number: | HF-H1900 |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 1 Set |
| Price: | Negotiation |
| Packaging Details: | Wrapped with film or in wooden case |
| Delivery Time: | 40-60 Working Days After Deposit |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 20 Set/Month |
|
Detail Information |
|||

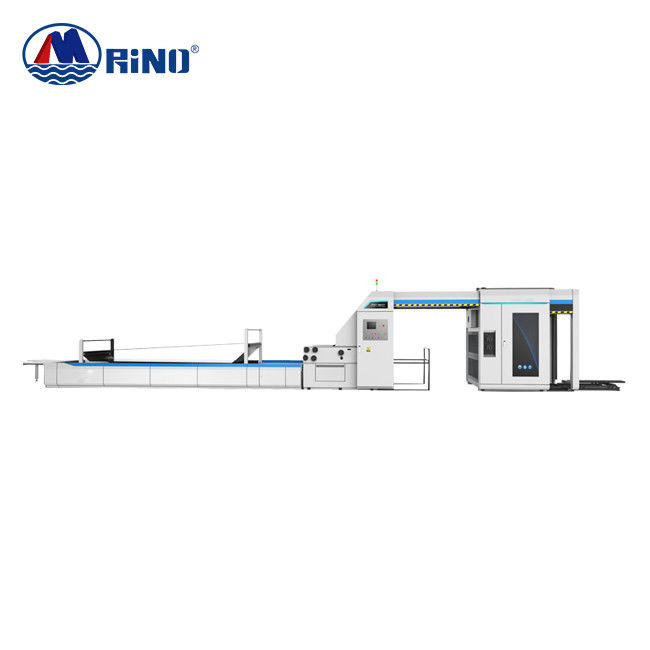

| Name: | 1900mm Automatic High Speed Flute Laminating Machine Flute Laminator Machine | Maximum Paper Size: | 1900*1650mm |
|---|---|---|---|
| Minimum Paper Size: | 450*500mm | Max. Speed: | 200 Pcs/M |
| Overall Dimension: | 14500Lx2950Wx2600H | Total Weight: | 8.5T |
| Total Power: | 25KW | Laminate Precision (mm): | ≤±1.5 |
| High Light: | 1900mm Flute Laminating Machine,Flute Corrugated Laminating Machine,8.5T Flute Laminating Machine |
||
Product Description
The high speed flute laminating machine is suitable for the stick of paper and corrugated board. The motion control system is perfectly integrated with the servo correction system. Using the relative position of multiple sets of photoelectric induction paper, the servo motor on both sides of the control paper is independently compensated, and the position of the bottom paper is tracked by the paper. Make the paper and the bottom paper accurately positioned. The machine is easy to operate and simply input the size of the paper, the machine will be adjusted by itself.
Main Parameter
| Model | HF-H1450 | HF-H1650 | HF-H1900 | HF-H2100 |
| Maximum size(mm) | 1450*1450 | 1650*1650 | 1900*1650 | 2100×1650 |
| Minimum size(mm) | 450*450 | 450*450 | 450*500 | 450*500 |
| Top feeding paper thickness | 200g/m2-500g/m2 | 200g/m2-500g/m2 | 200g/m2-500g/m2 | 200g/m2-500g/m2 |
| Bottom feeding paper thickness | 0.5~10mm | 0.5~10mm | 0.5~10mm | 0.5~10mm |
| Laminate precision (mm) | ≤±1.5 | ≤±1.5 | ≤±1.5 | ≤±1.5 |
| Max.Speed | 150m/min | 150m/min | 150m/min | 150m/min |
| Overall dimension | 13500Lx2450Wx2600H | 13900Lx2700Wx2600H | 14500Lx2950Wx2600H | 13900Lx3100Wx2600H |
| Total weight(t) | 6.5 | 7.5 | 8.5 | 9.5 |
| Total power | 22KW | 23KW | 25KW | 25KW |
Main Units
|
Top paper feeding unit |
|
Bottom paper feeding unit |
|
Positioning unit |
