1300mm 3 Layer Flute Laminating Machine For Cardboard 6000pcs/H

Product Description

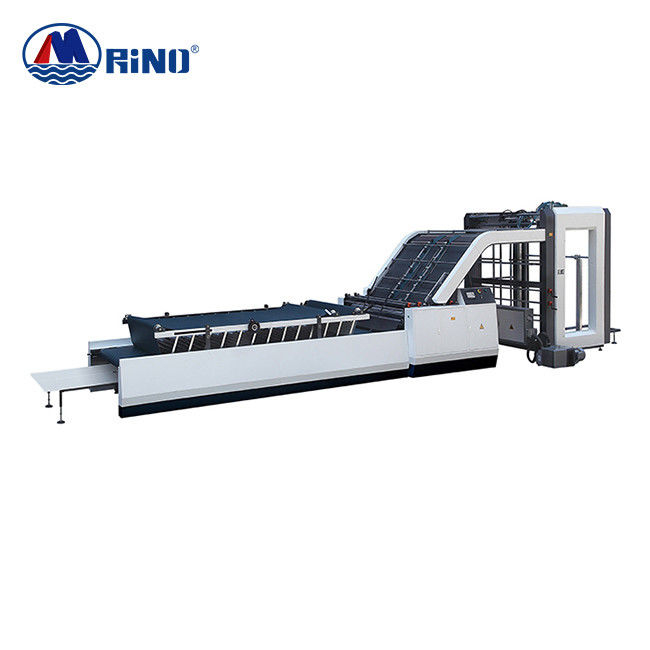

1300 Automatic Front Gauge Flute Laminating Machine For Corrugated Board


Basic Configuration of Flute Laminating Machine

1. Automatic flute laminating machine are designed for laminating cardboard and corrugated board (Flute shape A, B, C, E, F and N), 3 layer corrugated paperboard all can be laminated smoothly and accurately. Electrical components of internationally known brands are adopted to ensure reliability of running. This machine features stability, high precision, easy operation, saver of time and labour, maintenance of convenience, etc.
2.Automatic flute laminating machine adopts chain pusher and back registration system together with spring blade side lay and vacuum sucking conveying system which make this machine fit a wide range of paper and have high precision.
3.The glue roller adopts high design, match with reticulated roller which improve the coating uniformity and reduce the production cost.
4.The machine adopts automatic glue supply and recyclable glue circulating system.
5.This machine is suitable for A,B,C,E,F corrugated board.

Main Parameter of Flute Laminating Machine



Main Units

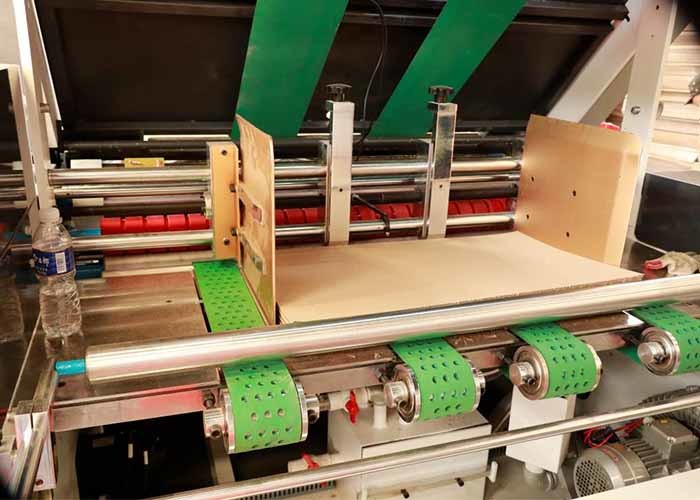

Top feeding unit   1. High precision high speed automatic feeder, feeding smoothly. 2.Put the paperboard on the flat plate, this unit automatically up to the designated location, 3.eeder deliver the paperboard by vacuum absorption.

Gluing unit   1. The glue roller is made of stainless steel and anilox roller ,it can reduce the quantity of the glue and improve the intensity of the cartons. Deft design keep the carton perfect.   2. Automatic glue supplementary system, automatically added the loss glue amount. And match the recycling of the glue, avoid the waste of glue consumption 3. Metering roller linear velocity scientific design, ensure uniform glue quantity ,at the same time to avoid rejection glue when high speed running.


Factory of Flute Laminating Machine
