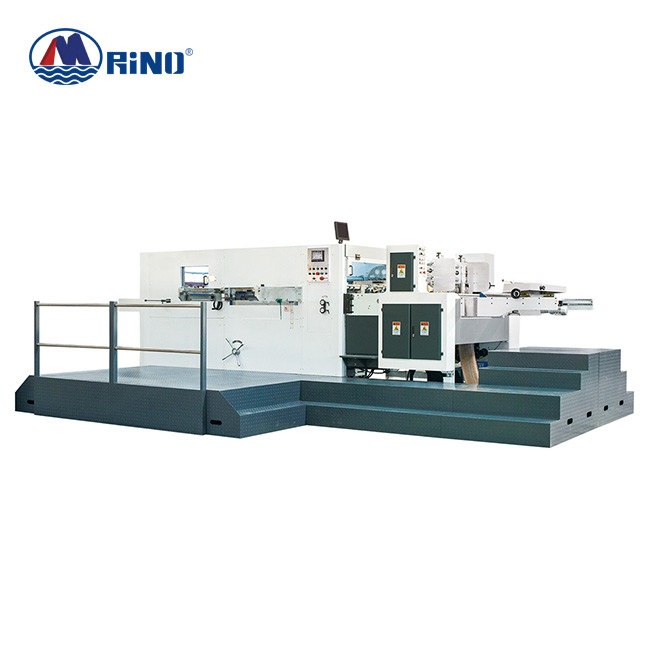

Automatic Carton Box Die Cutting Machine With Lead Edge Feeding

Product Details:
Place of Origin: Shandong,China
Brand Name: RINO
Certification: CE
Model Number: HD-L1500
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiation
Packaging Details: Wrapped with film or in wooden case
Delivery Time: 40-60 Working Days After Deposit
Payment Terms: L/C, T/T
Supply Ability: 10 Set/Month
  • Detail Information
  • Product Description

Detail Information

Name: Automatic Carton Box Die-Cutting And Creasing Machine With Lead Edge Feeding Maximum Paper Feeding Size: 1510mm×1100mm
Minimum Paper Feeding Size: 550mm×550mm Die Cutting Accuracy: ±0.4mm
Maximum Speed: 4500pcs/h Total Power: 30KW
Total Weight: 23T Minimum Front Scrap Size: ≥8mm
High Light:

30KW Carton Box Die Cutting Machine


1500mm Carton Box Die Cutting Machine


Lead Edge Feeding Die Cutting Machine

Product Description

1500mm Automatic Carton Box Die-Cutting And Creasing Machine With Lead Edge Feeding


Carton Box Die Cutting Machine Introduction


Fully automatic die-cutting and creasing machine (without stripping) is a special equipment for high-grade corrugated boxes and cardboards combined with similar products at home and abroad. Adopt high-strength clamping rod and advantage clamping structure; can be applied to all kinds of cardboard and corrugated cardboard. Front/back and side registration mechanisms ensure high die-cutting accuracy. Other parts adopt high-precision intermittent mechanism, quick-action air clutch, pneumatic locking mechanism, programmable controller and human-machine interface; the interface can display various digital information of the machine, such as working speed, number of sheets processed and total running time . According to the troubleshooting display, it is easy to troubleshoot. The main engine is controlled by frequency converter, with stepless speed change and stable operation. The machine has many sensors and safety devices to keep the operator and the environment safe. The positive and negative die-cutting pressure can be adjusted separately, the manual wheel is easy to operate, and the machine can also complete die-cutting without a fixture.


Carton Box Die Cutting Machine Parameter


Model HD-L1500
Paper processed cardboard E,C,B,AB The maximum thickness shall not exceed 8mm
Max. paper size 1510mm×1100mm
Min. paper size 550mm×550mm
Max. Die-cutting size 1480mm×1080mm
Feeding paper pile height 400mm
Delivery paper pile height 980mm
Size inside the plate frame 1510mm×1130mm
Die cutting plate size 1515mm×1120mm
Die cutting pressure 300T
Max. working speed 4500sheets/h
Processable paper carton board 1-8mm
Total power 30KW
Voltage 380V
Weight 23T
Dimensions 10000mm×6000mm×2580mm


Main Units


Automatic Carton Box Die Cutting Machine With Lead Edge Feeding 0

Paper feeding unit


The machine is suitable for different kinds of corrugated paper, and has strong applicability. The leading edge servo feeding system can adapt to the requirements of different thickness corrugated paper from F to 5 layers, overcome the temperature, humidity and paper weight differences caused by paper warping, and ensure smoother feeding of warp paper or thick paper. Install the side-beating baffle device, which ensures that the position of the paper stack is basically correct when feeding paper. Just input the length of the paper, and the paper wheel can completely send the paper out.


Automatic Carton Box Die Cutting Machine With Lead Edge Feeding 1

Die cutting unit


The die-cutting plate is fastened with four-jaw nuts to ensure that the large-size paper die is always smooth, and has a pneumatic locking device, which is more effective when changing plates.
The steel plate is made of hardened manganese alloy steel and has a long service life. Pneumatic suspension device, easy to operate. Die-cutting pressure is adjusted electrically, which is more convenient and quicker. 300 tons of die-cutting pressure, whether it is cardboard, corrugated paper, thick paper can be easily die-cut. Abnormal automatic control such as die-cut paper or waste paper falling, realize humanization and automation of mechanical operation. Turbine, crank, toggle link type high-precision lower die-cutting table. Upper die-cutting table, static, high precision. Equipped with a multi-piece cam intermittent drive mechanism, 6 high-precision imported clamping bars, each with 11 clamping jaws (imported spring sheets) and matching pillows. The clamp bar is reserved to ensure that the step distance is correct and consistent. Sensors are installed on both the paper inlet and the paper outlet to detect the paper position and paper size. Centerline system for fast and accurate centering of cuts and strips. Equipped with electronic fault display and speed display device. High-speed rotary joint for longer service life.


Automatic Carton Box Die Cutting Machine With Lead Edge Feeding 2

Delivery unit


Linear bearings are used for paper delivery and paper uniformity, with simple structure and perfect paper feeding. The machine can complete the delivery process without downtime. The take-up take-up reel allows quick and easy stack transfer, ensuring that the printed paper is latte-free.


Finished Products


Automatic Carton Box Die Cutting Machine With Lead Edge Feeding 3


Main Electrical Appliances


No Name Brand Remark
1 Frequency converter Yaskawa Japan
2 PLC Siemens Germany
3 Electrical switches Omron/Schneider Japan/France
4 Touch screen Siemens Germany
5 Wallboard Chuanban China
6 Upper and lower platform Ductile iron China
7 Tooth row Aviation aluminum China
8 Tooth row chain TYC Taiwan
9 Double-row chain Renold Britain
10 Cam divider (intermittent box) Taiwan Taiwan
11 Die-cut steel plate 75Cr1 China
12 Main bearings NSK Japan
13 Worm gear Wear-resistant tin copper worm gear China
14 Pneumatic clutch OMPI s.r.l Italy
15 Knife plate liner 75Cr1 China


Our Factory


Automatic Carton Box Die Cutting Machine With Lead Edge Feeding 4

Automatic Carton Box Die Cutting Machine With Lead Edge Feeding 5
