Product Details:
|
|
Place of Origin: | China |
---|---|
Brand Name: | RINO |
Certification: | CE |
Model Number: | HD-F1060 |
Payment & Shipping Terms:
|
|
Minimum Order Quantity: | 1 Set |
Price: | Negotiation |
Packaging Details: | Wrapped with film or in wooden case |
Delivery Time: | 40-60 Working Days After Deposit |
Payment Terms: | L/C, T/T |
Supply Ability: | 10 Set/Month |
Detail Information |
|||
Name: | Automatic Die Cutting Machine For Paper Carton Box Corrugated Board Die Cutter | Maximum Paperboard Feeding Size: | 1060×760mm |
---|---|---|---|
Minimum Paperboard Feeding Size: | 400×370mm | Maximum Speed: | 7500 Sheets/h |
Total Weight: | 14.5MT | Power Supply: | 18KW |
Vlotage Supply: | 220V/380V | Maximum Die Cutting Size: | 1060×760mm |
High Light: | 1060×760mm Corrugated Box Die Cutting Machine,380V Corrugated Box Die Cutting Machine,220V automatic die cutter machine |
Product Description

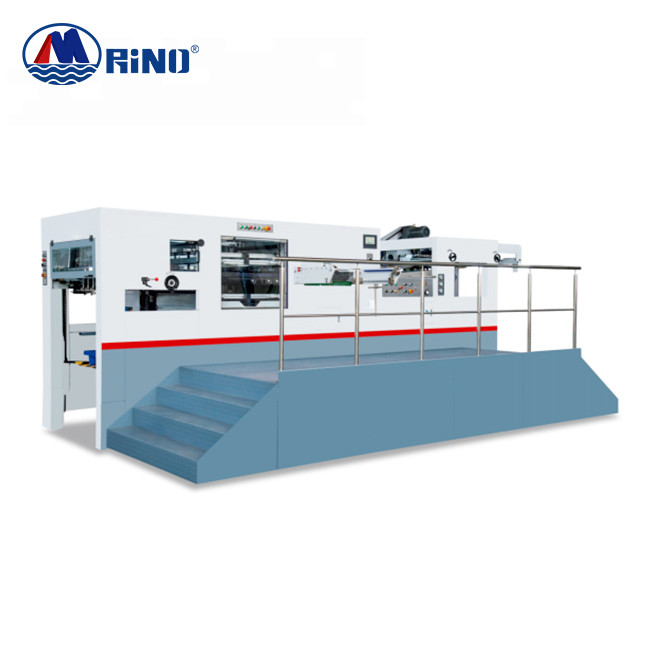

Automatic Die Cutting Machine For Paper Carton Box Corrugated Board Die Cutter
Carton Box Die Cutting Machine Introduction
The automatic die-cutting machine can process cardboard and corrugated cardboard (>250g, <7mm), and is suitable for die-cutting and pressing of cartons and cartons. Especially skilled in die-cutting table board. The worm gear drives the crankshaft connecting rod, and the fixed paper feeder is adopted. Customers have a variety of choices according to the product structure. The central PLC controller can automatically feed paper, die cutting, paper delivery, display faults, test, etc. The main motor adopts frequency conversion control, stepless speed change, and works normally. normal work. Use imported chains. The main drive bearing, frequency converter and electric switch are imported from Europe, America and Japan, which have the characteristics of excellent performance, accuracy and long life.
Parameter of Die Cutting Machine
Model | HD-F1060 |
Max feeding cardboard size | 1060×760mm |
Min feeding cardboard size | 400×370mm |
Max die cutting size | 1060×760mm |
Max die cutting pressure | 300T |
Cardboard thickness | Die-cutting and embossing flat corrugated paper, suitable for die-cutting, embossing and cold embossing of cartons, paper trademarks, PVC films, cardboard 0.1-2.5mm, corrugated paper ≤ 4mm |
Max die cutting speed | 7000 sheets/h |
Weight | 14.5Ton |
Total power | 18KW |
Dimension | 6800×3990×2300mm |
Main Units
![]() |
Feeder feeding unit
Paper feeding will slow down when the paper is about to reach front lays to achieve a more accurate paper orientation.
|
![]() |
Die cutting unit
The die cutter bottom pate and the cutter mold are designed securely.They can be easily moved and returned,which can help the user to assemble the printing plate quickly and easily.The pneumatic locker can accurately firm the upper printing plate.It will help the user save much time in doing so.
|

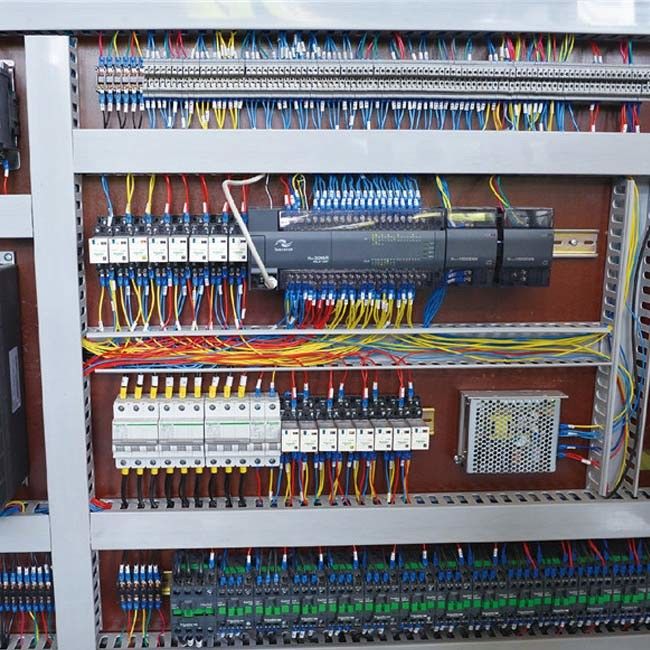

Main Electrical device
Name | Model | Brand |
Breaker | 3P040 | LG |
Breaker | 3PD16 | LG |
Breaker | 2PD16 | LG |
Breaker | 1PD6 | LG |
Air switch | NSC60E3060N | Schneider |
PLC programmable controller | CP1W-M60DT-D | Omron |
Expand | CP1W-40EDT | Omron |
Expand | CP1W-20EDT | Omron |
Communication card | CP1W-CIF11 | Omron |
AC contactor | LC1D32 | Schneider |
AC contactor | LC1D12 | Schneider |
AC contactor | LC1D09 | Schneider |
AC contactor | LC1D50 | Schneider |
Switching power supply | DR-120-24 | MIWE |
Transformer | 380V-220V 670V | TENGEN |
Swim suppressor | LAD4RCU | Schneider |
Interlock connector | LAD9R1V | Schneider |
