Product Details:
|
|
| Place of Origin: | China |
|---|---|
| Brand Name: | RINO |
| Certification: | CE |
| Model Number: | HD-F1100 |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 1 Set |
| Price: | Negotiation |
| Packaging Details: | Wrapped with film or in wooden case |
| Delivery Time: | 40-60 Working Days After Deposit |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 10 Set/Month |
|
Detail Information |
|||
| Name: | Fully Automatic Carton Box Die Cutting Machine With Waste Stripping Feeder Feeding | Maximum Paper Size: | 1100×780mm |
|---|---|---|---|
| Mininimum Paper Size: | 400×350mm | Maximum Speed: | 7000 Sheets/h |
| Total Weight: | 18T | Total Power Supply: | 18KW |
| Vlotage Supply: | 220V/380V | Maximum Die Cutting Size: | 1080×760mm |
| High Light: | 18 Ton Cardboard Box Die Cutting Machine,RINO Cardboard Box Die Cutting Machine |
||
Product Description

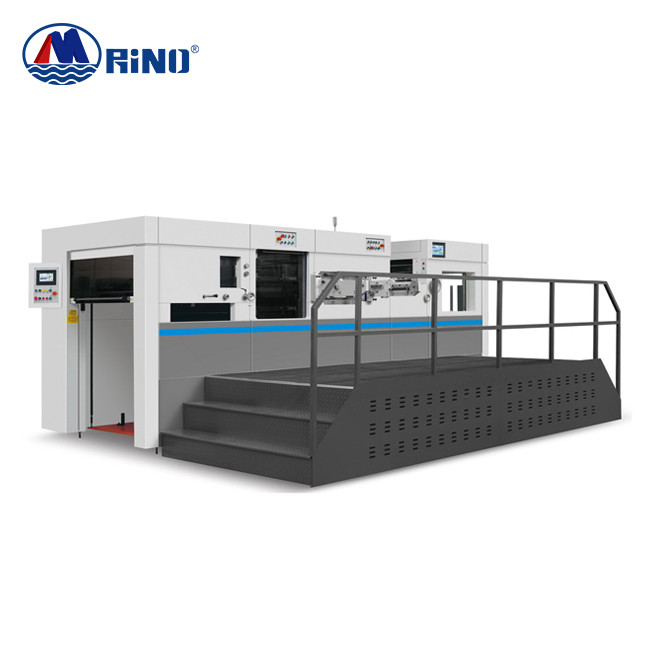

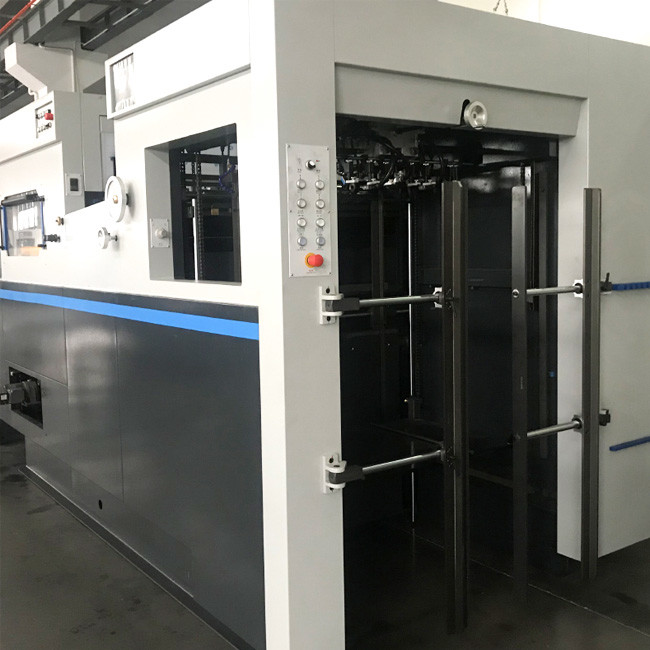

Fully Automatic Carton Box Die Cutting Machine With Waste Stripping Feeder Feeding
Carton Box Die Cutting Machine Introduction
1. Complete design, accurate installation, high stability, high safety and low noise.
2. Die cutting machine adopts worm, worm gear and crankshaft to drive, high cutting pressure and durable.
3. High-precision intermittent mechanism, high cutting precision and stable operation.
4. The paper feeder adopts European technology, the suction is adjustable, stable and accurate, and the paper has good applicability.
5. Non-stop feeding, pre-stacking and conveying devices can shorten auxiliary time and improve efficiency.
Parameter of Die Cutting Machine
| Model | HD-F1100 |
| Max feeding cardboard size | 1100×780mm |
| Min feeding cardboard size | 400×350mm |
| Max die cutting size | 1080×760mm |
| Max die cutting pressure | 300T |
| Cardboard thickness | Die-cutting and embossing flat corrugated paper, suitable for die-cutting, embossing and cold embossing of cartons, paper trademarks, PVC films, cardboard 0.1-2.5mm, corrugated paper ≤ 4mm |
| Max die cutting speed | 7000 sheets/h |
| Weight | 18Ton |
| Total power | 18KW |
| Dimension |
7300*2170*2245mm |
Main Units
|
|
Feeder feeding unit
Automatic feeding device: This device adopts powerful suction head of European technology. The function of 4 suction and 5 feed can be adjusted smoothly and stably. It can be adjusted according to the paper style and different bending angles to obtain a wide range of applications. 2 sets of laser control devices to avoid collision, with non-stop feeding system, improve work efficiency.
|
|
|
Die cutting unit
The casting adopts high-strength resin sand technology, and the air clutch drives the high-precision worm and worm gear to ensure small deformation when subjected to die-cutting stress and stable high-speed operation. The high-speed intermittent device drives the German chain, the special aluminum alloy process, and the double-station to ensure accuracy.
|
Main Electrical device
| Name | Model | Brand |
| Breaker | 3P040 | LG |
| Breaker | 3PD16 | LG |
| Breaker | 2PD16 | LG |
| Breaker | 1PD6 | LG |
| Air switch | NSC60E3060N | Schneider |
| PLC programmable controller | CP1W-M60DT-D | Omron |
| Expand | CP1W-40EDT | Omron |
| Expand | CP1W-20EDT | Omron |
| Communication card | CP1W-CIF11 | Omron |
| AC contactor | LC1D32 | Schneider |
| AC contactor | LC1D12 | Schneider |
| AC contactor | LC1D09 | Schneider |
| AC contactor | LC1D50 | Schneider |
| Switching power supply | DR-120-24 | MIWE |
| Transformer | 380V-220V 670V | TENGEN |
| Swim suppressor | LAD4RCU | Schneider |
| Interlock connector | LAD9R1V | Schneider |
