Product Details:
|
|
Place of Origin: | China |
---|---|
Brand Name: | RINO |
Certification: | CE |
Model Number: | HD-S1300 |
Payment & Shipping Terms:
|
|
Minimum Order Quantity: | 1 Set |
Price: | Negotiation |
Packaging Details: | Wrapped with film or in wooden case |
Delivery Time: | 40-60 Working Days After Deposit |
Payment Terms: | L/C, T/T |
Supply Ability: | 10 Set/Month |
Detail Information |
|||
Name: | Semi Automatic Carton Box Die Cutting Machine Corrugated Baord Die Cutter | Maximum Feeding Cardboard Size: | 1310×980mm |
---|---|---|---|
Minimum Feeding Cardboard Size: | 350×350mm | Maximum Die Cutting Size: | 1300×970mm |
Maximum Die Cutting Pressure: | 300T | Die Cutting Accuracy: | ±0.5mm |
Cardboard Thickness: | Corrugated Board Thickness ≤8mm | Maximum Die Cutting Speed: | 4500 Sheets/h |
High Light: | Semi Automatic Carton Box Die Cutting Machine,1310×980mm Carton Box Die Cutting Machine,4500Sheets/H semi automatic die cutting machine |
Product Description

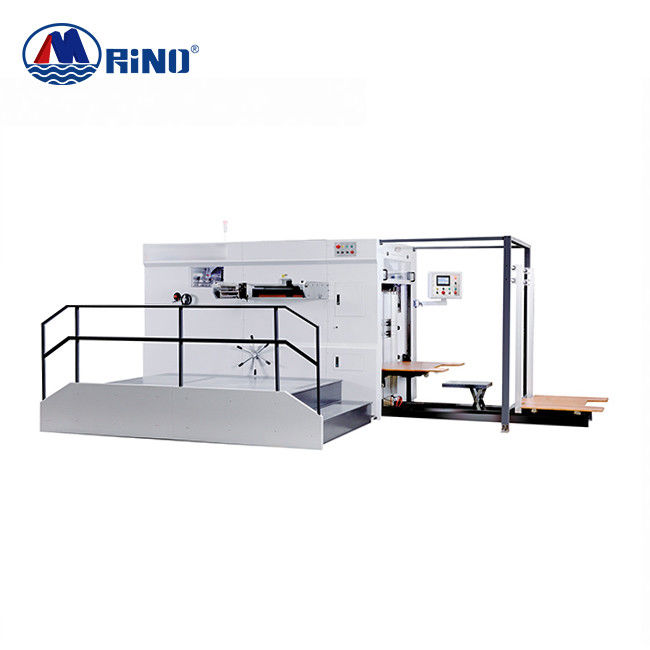

Semi Automatic Carton Box Die Cutting Machine Corrugated Baord Die Cutter
Product Description Of Carton Box Die Cutting Machine
Die-cutting machines are mainly divided into rotary die-cutting machines, flatbed die-cutting machines, and flat-plate die-cutting machines according to different cutting forms.
Our automatic flat die cutting machine is usually used for die cutting and creasing work. It is widely used in paper packaging materials such as paper boxes, cartons, trademarks, invitations, etc.
In order to meet the various needs of the printing and packaging market, we have designed a fully automatic die-cutting machine, which is a new equipment with a higher degree of intelligence that is newly developed and manufactured.
Parameter of Carton Box Die Cutting Machine
Model | HD-S1300 |
Max feeding cardboard size | 1310×980mm |
Min feeding cardboard size | 350×350mm |
Max die cutting size | 1300×970mm |
Max die cutting pressure | 300T |
Die cutting precision | ±0.5mm |
Cardboard thickness | Corrugated board thickness ≤8mm (max. thickness) |
Max die cutting speed | 4500 sheets/h |
Weight | 13.5T |
Total power | 15KW |
Dimension | 6000×4400×2500mm |
Main Units
![]() |
Pre stacking paper: cylinder sliding angle aluminum, convenient and quick operation. The operator needs to put the processed paper into the pre-coded paper trolley, and when the lower limit of the paper is set, put the trolley back into the paper feeding platform to continue the next step.
|
![]() |

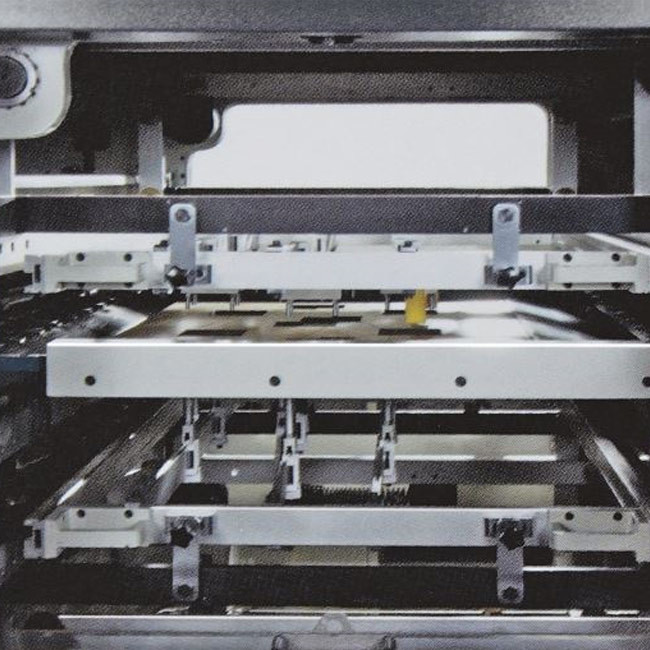

Die cutting section: gripper, die cutting frame, die cutting steel, transmission structure, host bottom station, the moving platform and the platform, intermittent structure, pneumatic clutch and brake. Die cutting pressure can overall regulating and can gripper edge regulating alone, manual slow down before turning convenient save Labor. |
![]() |
Using world-renowned brand electrical components, better performance, timely and local after-sales service and maintenance. Delta PLC technology ensures safe and trouble-free operation. |
Finished Products
