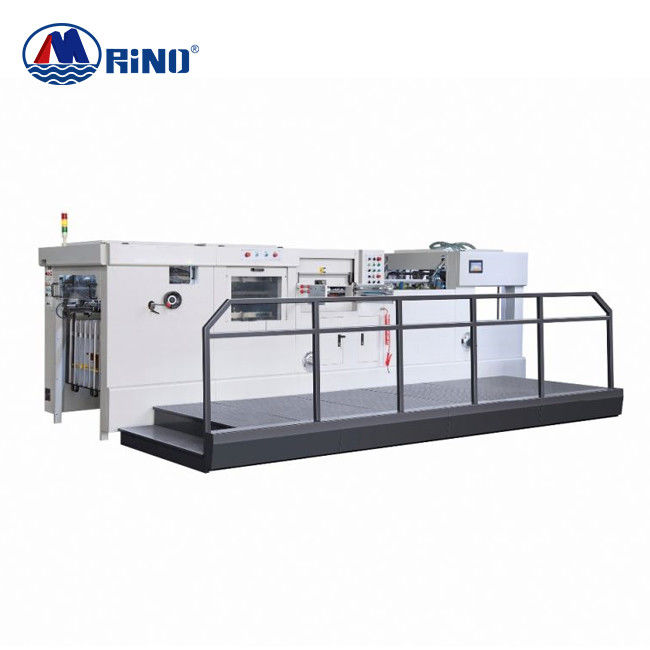

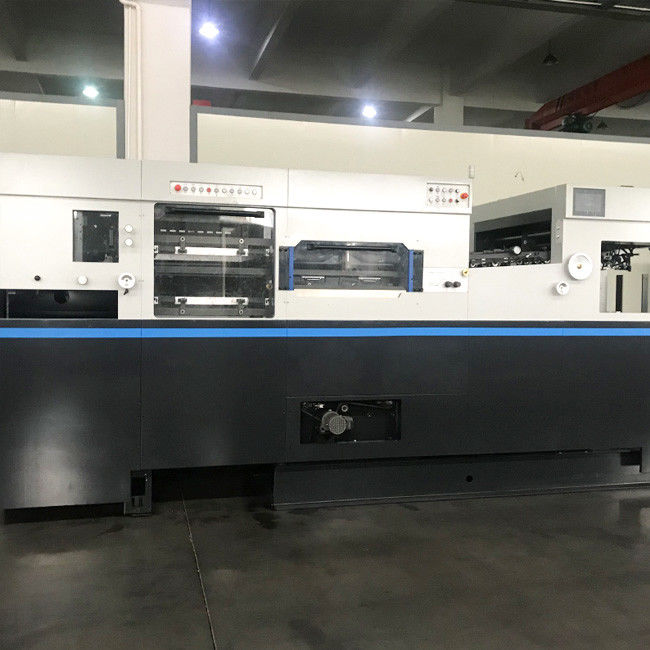

7000 Sheets/H Paper Box Die Cutting Machine , 16.9kw High Speed Cardboard Die Cutter

Product Description

High Speed Paper Box Product Machinery Cardboard Automatic Die Cutting Machine

Carton Box Die Cutting Machine Introduction

High-speed automatic die-cutting machine, the base, upper and lower platforms are made of nodular cast iron, stable performance, can withstand 300T pressure without any change in accuracy. The crankshaft is made of 40Cr material, which has been tempered and partially quenched by a high-precision crankshaft grinder. The material is good, the hardness is high, the precision is high, and it bears heavy loads and is durable. Turbine and bearing bushes are made of copper alloy and processed with advanced technology and high-precision equipment. They are suitable for wear resistance under heavy loads and ensure the service life of the equipment. The pendulum rod, bearing bush and turbine adopt the traditional hand scraping method to ensure the same lubrication effect and accuracy of the equipment, high speed and durability. This machine has the characteristics of high configuration, high precision, wide application range and long life. It is a cost-effective equipment that can meet the needs of middle and high-end packaging companies.

Parameter of Die Cutting Machine

Main Units

Feeder feeding unit   Feeder uses advanced domestic enhanced feeder, which has four-suction, four-send and the high / low and tilt of the sucker can do fine-tune. So it can meet the thickness of 157-2000g/m2 of different paper and B corrugated paper.

Die cutting unit   The wallboard and die cutting station,the core part of the die-cutting machine,which is made of ductile iron casting and composed of high-precision machining parts, is of high precision and high pressure,it can satisfy the die cutting of dense mesh pattern, and the pressure can reach more than 300T.

Paper receving unit   Paper collection part is equipped with control panel to realize more personalized operation.

Main Electrical device
