Product Details:
|
|
Place of Origin: | Shandong,China |
---|---|
Brand Name: | RINO |
Certification: | CE |
Model Number: | HD-L1650 |
Payment & Shipping Terms:
|
|
Minimum Order Quantity: | 1 Set |
Price: | Negotiation |
Packaging Details: | Wrapped with film or in wooden case |
Delivery Time: | 40-60 Working Days After Deposit |
Payment Terms: | L/C, T/T |
Supply Ability: | 10 Set/Month |
Detail Information |
|||
Name: | Lead Edge Feeding Automatic Die-Cutting Machine Corrugated Paper Die Cutting Machine | Maximum Paper Feeding Size: | 1650mm*1210mm |
---|---|---|---|
Minimum Paper Feeding Size: | 650mm*500mm | Die Cutting Accuracy: | ±0.4mm |
Maximum Speed: | 4000pcs/h | Total Power: | 37.2KW |
Total Weight: | 27T | Minimum Front Scrap Size: | ≥8mm |
Highlight: | 4000pcs/h Carton Box Die Cutting Machine,Feeding Carton Box Die Cutting Machine |
Product Description

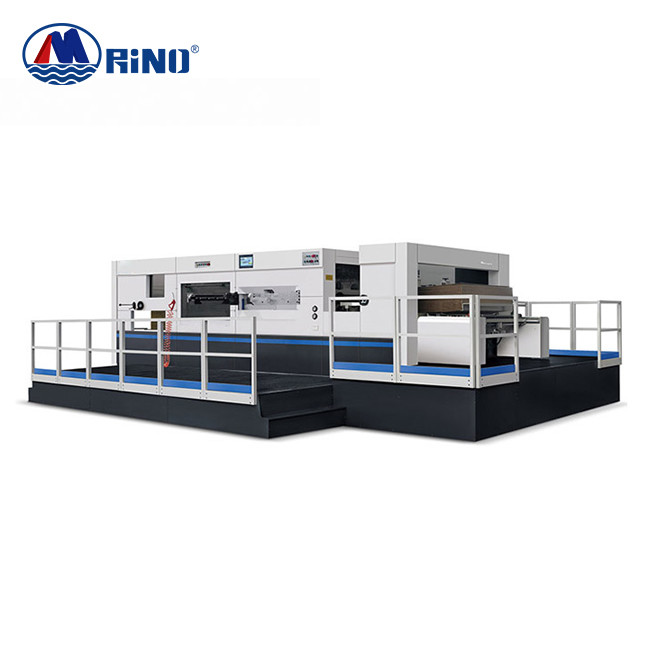

Lead Edge Feeding Automatic Die-Cutting Machine Corrugated Paper Die Cutting Machine
Carton Box Die Cutting Machine Introduction
1. The machine has multiple sensors and safety devices to ensure machine work and personal safety.
2. Mnul paper continuously adapts to various bending papers.
3. Non-stop paper feeding and electric auxiliary paper delivery mechanism, effectively improving work efficiency (optional)
4. High-precision positioning mechanism, pneumatic clutch, pneumatic locking version
5. Regular lubrication and forced lubrication.
6. The front and rear die-cutting pressure can be adjusted separately, without the need for selective die-cutting with scissors.
Carton Box Die Cutting Machine Parameter
Maximum paper size | 1650mm*1210mm |
Minimum paper size | 650mm*500mm |
Die cutting precision | ±0.4mm |
Maximum die cutting pressure | 300T |
Pressure adjustment range | ±1mm |
Minimum front scrap size | ≥8mm |
Maximum speed | 4000S/H |
Total power | 37.2KW |
Weight | ≈27T |
Main Units
![]() |

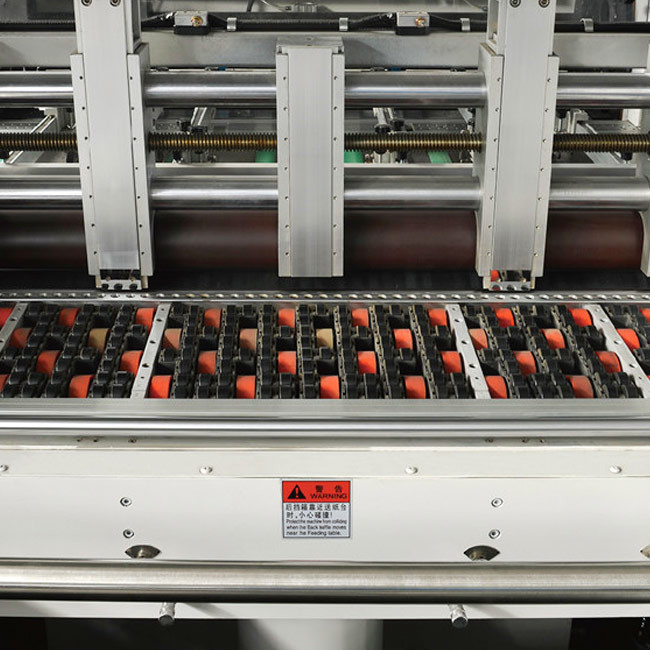

Paper feeding unit
1. Equipped with lead edge feeder, it can prevent the cardboard damage by the black
|
![]() |
Die cutting unit
1. Die cutting chase fixed accurately by pneumatic lock system 2. Die cutting plate is putted in and out by air floating device |
Stripping unit
1. Double action movement structure with upper and lower
|
Finished Products
Main Electrical Appliances
No | Name | Brand | Remark |
1 | Frequency converter | Yaskawa | Japan |
2 | PLC | Siemens | Germany |
3 | Electrical switches | Omron/Schneider | Japan/France |
4 | Touch screen | Siemens | Germany |
5 | Wallboard | Chuanban | China |
6 | Upper and lower platform | Ductile iron | China |
7 | Tooth row | Aviation aluminum | China |
8 | Tooth row chain | TYC | Taiwan |
9 | Double-row chain | Renold | Britain |
10 | Cam divider (intermittent box) | Taiwan | Taiwan |
11 | Die-cut steel plate | 75Cr1 | China |
12 | Main bearings | NSK | Japan |
13 | Worm gear | Wear-resistant tin copper worm gear | China |
14 | Pneumatic clutch | OMPI s.r.l | Italy |
15 | Knife plate liner | 75Cr1 | China |
