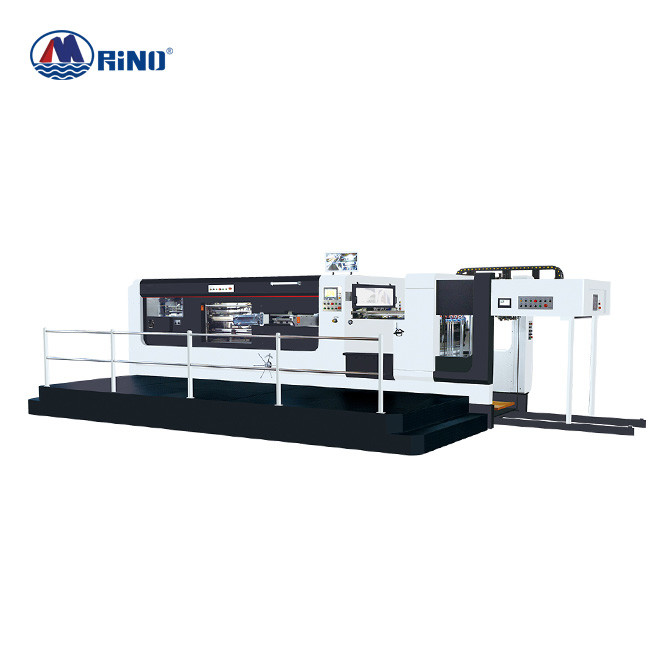

1300mm Feeding Carton Box Die Cutting Machine With Stripping Unit

Product Details:
Place of Origin: China
Brand Name: RINO
Certification: CE
Model Number: HD-F1300
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiation
Packaging Details: Wrapped with film or in wooden case
Delivery Time: 40-60 Working Days After Deposit
Payment Terms: L/C, T/T
Supply Ability: 10 Set/Month
  • Detail Information
  • Product Description

Detail Information

Name: 1300mm Feeder Feeding Carton Box Die Cutting Machine With Stripping Unit Maximum Paper Feeding Size: 1300×1020mm
Minimum Paper Feeding Size: 380×400mm Maximum Speed Of Machine: 6000 Sheets/h
Total Weight: 23T Total Power: 21KW
Vlotage Supply: 220V/380V Maximum Die Cutting Size: 1300×1010mm
High Light:

1300mm Feeding Carton Die Cutting Machine


Carton Box Die Cutting Machine Stripping


Carton Box Die Cutting Machine 21KW

Product Description

1300mm Feeder Feeding Carton Box Die Cutting Machine With Stripping Unit


Carton Box Die Cutting Machine Introduction


The whole machine is driven by chainless transmission, abandoning the traditional chain, and the synchronous belt, transmission shaft, ejector rod, gear and other components used in large quantities with high cost. The fine-tuning mechanism is a patented product,unlimited adjustment of the paper arrival time. The left and right movement mechanism of the paper feeding table is electrically controlled, with a large adjustment distance. It has an automatic centering function when the paper is changed. The manual switch position is switched by one key. When the paper is automatically pressed, the upper roller presses the paper, and the lower roller does not move. The machine runs more stable, smoother paper feeding, fast die-cutting speed; manual reciprocating movement for the lower point roller, large stroke, more suitable for curved paper, and with gauges, manual paper feeding is simpler than ordinary semi-automatic paper feeding convenience. Switch the electrical control, the cylinder will automatically switch after the switch is turned, without manual adjustment.


Feeder is powered by an independent servo motor to track the paper feed time of the host, and install two motors to control the forward and backward movement, which can be manually adjusted. It is automatically adjusted when the hand and automatically switched, and when it is set to automatic, the feeder automatically adjusts to the maximum paper position and drops to the preset height. The customer fine-tunes the feeder position according to the size of the paper. When switching to manual, the feeder moves to the back, rises to the highest position, and stops the paper feeding action, freeing up a lot of space for personnel. The entire conversion process only needs to manually remove the paper flipping board, and all the rest are automatically controlled, saving a lot of time, labor cost, high efficiency and high degree of automation.

The machine is equipped with sensors and safety devices in many places to ensure the normal operation of the machine and personal safety.


Parameter of Die Cutting Machine


Model HD-F1300
Max feeding cardboard size 1300×1020mm
Min feeding cardboard size 380×400mm
Max die cutting size 1300×1010mm
Max die cutting pressure 300T
Cardboard thickness Corrugated board thickness ≤8mm (max. thickness), ≥200gsm cardboard
Max die cutting speed 6000 sheets/h
Weight 23T
Total power 21KW
Dimension 9200×2500×2400mm


Main Units


1300mm Feeding Carton Box Die Cutting Machine With Stripping Unit 0

Feeder feeding unit


The feeder is a large feeder head with four suctions and five feeds, which can smoothly convey thick paper. The transmission of the feeder head adopts Japanese Fuji high-precision servo and servo motion controller, and Japanese Omron encoder tracking time is more accurate. The feeder can stop the action during manual operation, reducing the wear of the feeder.

The height of the feeder head and the adjustment of the size of the paper can be adjusted with one button, which saves labor and effort, and is convenient and time-saving.


1300mm Feeding Carton Box Die Cutting Machine With Stripping Unit 1

Die cutting unit


The die-cutting plate adopts the four-claw nut fastening type and the installation method of the board card chuck to ensure that the large-format die-cutting plate is always flat, the chuck is flexible and convenient, and is equipped with a pneumatic plate locking device, which effectively reduces the preparation time for plate change.

The steel plate adopts quenched manganese alloy steel material, which has an extremely long life. The steel plate pneumatic suspension device can be easily loaded and unloaded.

The die-cutting pressure is adjusted by four points, which can be adjusted easily by turning the handle.

With 300 tons of pressure, cardboard, corrugated paper or thick board paper can be easily die-cut.


1300mm Feeding Carton Box Die Cutting Machine With Stripping Unit 2

Paper receving unit


Imported belts are used for paper conveying, which is highly wear-resistant and has high friction. With the paper pressing wheel and wool wheel above, it can be suitable for a variety of papers and can be accurately delivered. The push-pull gauges on both sides make the die-cutting accuracy more accurate.

The paper feeding frame can be raised and lowered with one key, which reduces manual labor and is simple and convenient.



Main Electrical device


No Name Brand
1 Frequency converter BOSCH
2 Geared motor CPG /ZD
3 Power Supply MIWE
4 Oil pump motor Baoteng
5 filter Baoteng
6 clutch Shanghai Yuyi
7 power switch button IDEC
8 Rotary joint Shanghai Yuyi
9 Automatic control FUJI
10 bearing SKF/NSK
12 Contactor IDEC
13 Main Motor Siemens
14 Air pump BECKER
15 Feeder servo Fuji
16 HMI Pingtong
17 Intermittent Taiwan
18 Tooth row chain IWIS
Finished Products
1300mm Feeding Carton Box Die Cutting Machine With Stripping Unit 3
Machine details


1300mm Feeding Carton Box Die Cutting Machine With Stripping Unit 4
