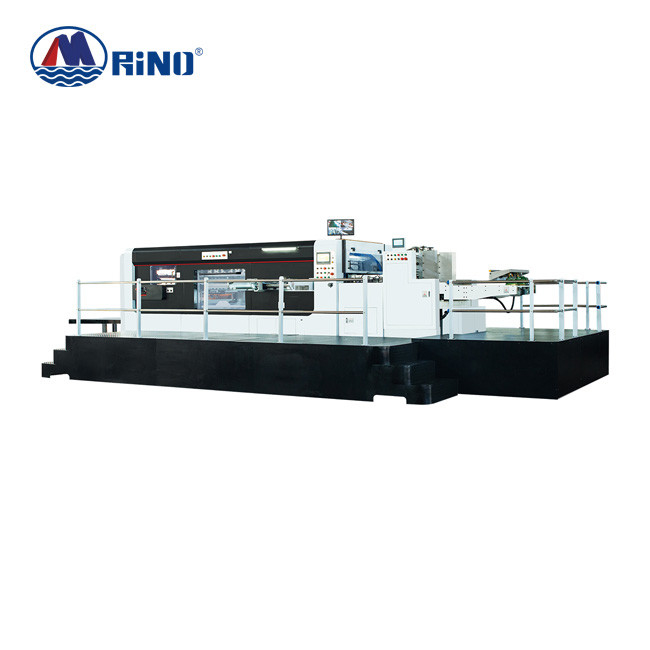

1300 Automatic Carton Box Die Cutting Machine With Lead Edge Feeding

Product Details:
Place of Origin: Shandong,China
Brand Name: RINO
Certification: CE
Model Number: HD-L1300
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiation
Packaging Details: Wrapped with film or in wooden case
Delivery Time: 40-60 Working Days After Deposit
Payment Terms: L/C, T/T
Supply Ability: 10 Set/Month
  • Detail Information
  • Product Description

Detail Information

Name: 1300 Automatic Carton Box Die Cutting Machine With Lead Edge Feeding Maximum Paper Size: 1310×1025mm
Minimum Paper Size: 450×450mm Die Cutting Precision: ±0.4mm
Maximum Speed: 5500S/H Total Power: 36KW
Weight: 22T Minimum Front Scrap Size: ≥8mm
High Light:

Automatic Cardboard Die Cutting Machine

,

450mm Carton Box Die Cutting Machine

,

Lead Edge Feeding Carton Box Cutter

Product Description

1300 Automatic Carton Box Die Cutting Machine With Lead Edge Feeding



Carton Box Die Cutting Machine Introduction



Die cutting machine is a special equipment for die-cutting of high-end color boxes and color boxes, developed by our company in combination with the superior performance of similar products at home and abroad. This machine uses high-strength paper grippers. The advanced opening gripper mechanism can adapt to various types of cardboard and corrugated paper; the front and rear positioning and side positioning mechanisms ensure the accuracy of die-cutting paper. Equipped with high-precision intermittent mechanism; rapid-action pneumatic clutch and pneumatic lock plate. Using programmable controller and man-machine interface, digital display of the machine's working speed, number of processed sheets, and total running time; the machine's fault display makes troubleshooting operations very convenient. The inverter is used to control the main motor, stepless speed regulation, and stable operation. The machine is equipped with sensors and safety devices in many places to ensure the normal operation of the machine and personal safety. Die-cutting pressure can be adjusted separately before and after, manual turning is convenient and labor-saving, and die-cutting without gripping can be performed at the same time.



Carton Box Die Cutting Machine Parameter



Paper application E, C, B, AB max < 8mm
Max paper size 1310×1025mm
Min paper size 450×450mm
Paper stack height 450mm
Receiving pile height 400×1100mm
Die cutting size 1300×1020mm
Inner size of plate frame 1330×1037mm
Die-cutting steel plate size 1310×1025mm
waste paper edge >12mm
Gripper bite paper edge >8mm
Die cutting pressure 350T
Max .speed 5500r/h
Total power 36KW
Voltage 380V
Machine net weight 21T
Gross weight 22T
Machine size 10360×4370×2350mm



Main Units



1300 Automatic Carton Box Die Cutting Machine With Lead Edge Feeding 0

Lead edge feeding



The uniquely designed leading edge paper feeding technology device adopts a non-stop downward suction method, which overcomes the warpage of the cardboard caused by the difference in the number of grams of paper in the surface of the temperature and humidity, and makes the paper feeding more smoothly. The machine's unique servo paper feeding system improves the accuracy of the paper in place, and the unique motion control program completely eliminates the phenomenon of drawing and scratching. The side flapper device keeps the correct position of the paper stack when feeding the paper. Only the length of the paper is input when feeding the paper, and the feeding wheel can completely send the paper out.



1300 Automatic Carton Box Die Cutting Machine With Lead Edge Feeding 1

Automatic Paper Collection department



1. The linear bearing is adopted for the paper receiving and aligning, the structure is simple, and the paper receiving is neat.
2. Automatic paper stack lifting table and counting function, accurate collection of papers.
3. Non-stop delivery of paper ensures that the whole machine does not stop running.



Finished Products



1300 Automatic Carton Box Die Cutting Machine With Lead Edge Feeding 2





Our Factory



1300 Automatic Carton Box Die Cutting Machine With Lead Edge Feeding 3

1300 Automatic Carton Box Die Cutting Machine With Lead Edge Feeding 4
