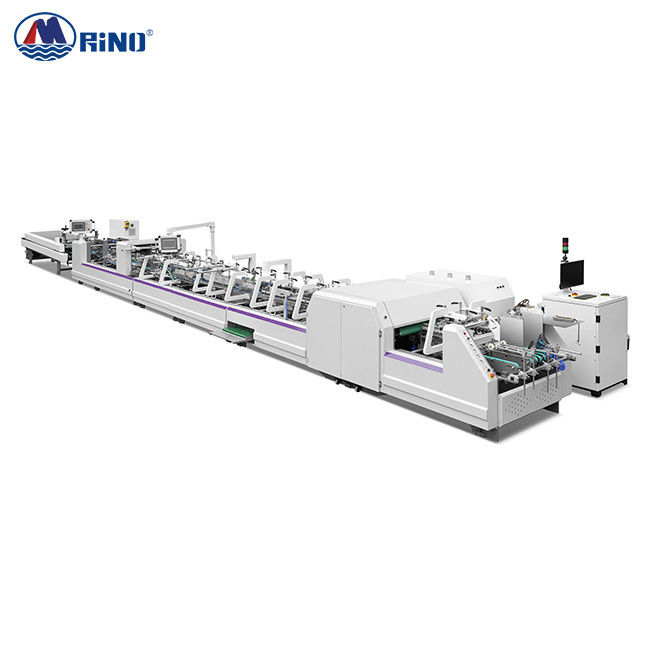

1100 Straight Line Double Side Lock Bottom Folding Gluing Machine

Folding And Gluing Machine Characteristics

1. Driving by V-ribbed belt,ensure smooth and accurate running.

2. Inverter driving,stable and power saving.

3. Use electric adjust,easy operate.

4. Automatic continuous feeding,use multiple belt with vibrating motor ,to keep the feeding stable.

5. Automatic counting and kicking,quantity can preset.

6. Conveyer pressure adjustable according to the box to ensure best quality.

7. The machine is configured with remote control,Remote troubleshooting, update the program.

Folding And Gluing Machine Parameter

Model	HF-GBL1100
Suitable material	Card board210gsm-850gsm,E,F,N flute corrugated board
Max method	Automatic continuous feeding
Max mechanical speed	400m/min
Overall dimension	1970019501900mm
Weight	11.5T
Glue type	Cold glue
Power consumption	30.5KW,380V 50HZ
Compressed air	6 bar,10 m³/h,60 L
Inching speed	30 m/min

Main units

Equipped with vibrating motor.

With ,low noise,with front adjustable wheels,max working capacity can be achieved.

Feeding knives and left and right registers fixing bar are controlled up and down by pneumatic system easily.

Bottom locked unit

Lock-bottom assembly mechanism with high elastic hookers is of deal design,fast and easy operation.

Standard & Optional configuration list

	Configuration	Units	Standard	Optional
1	Feeder section		√
2	Paper Alignment Section		√
3	Pre-fold Section		√
4	Crash lock bottom section		√
5	Upper paste barrel equipment			√
6	Down pasting equipment(R+L)		√
7	Gluing system		√
8	Grinder device
9	Plasma treatment system		√
10	Folding and closing section		√
11	Trombone section		√
12	Press section		√
13	Table (one)		√
14	4-6 corner		√
15	monitor		√
16	Double-sided adhesive			√

Machine configuration

Main motor	Siemens
PLC	Siemens
Inverter	Siemens
Touch Screen	Siemens
Driveing Bearing	NSK
Main axis	Taiwan chrome plated steel bar
Wall thickness (right +left side)	20mm tempered
Feeding belt	NITTA
Plain belt	NITTA Japan
Low voltage apparatus	Schneider(Rely,Button,Circuit Breaker,a.c. contactor)
servo system	Delta Taiwan For 4&6 corner box
Gluing system	KQ for 4&6 corner box
Encoder	Panasonic

Finished Product
