Detail Information
Product Description

Detail Information
Name:	Automatic High Speed Pre-Folder Crash Lock Bottom Folding And Gluing Machine	Suitable Cardboard:	Card Board 200gsm-800gsm,F ,E ,B,C Flute
Max Mechanical Speed:	400m/min	Overall Dimension:	16000200150mm
Total Weight:	7000kgs	Power Supply:	17KW, 380V,50HZ
Usage:	Paperboard Pasting Gluing	Glue:	Hot Melt Glue
High Light:	Crash Lock Bottom Folding Gluing Machine , 7000kgs Folding Gluing Machine

Product Description

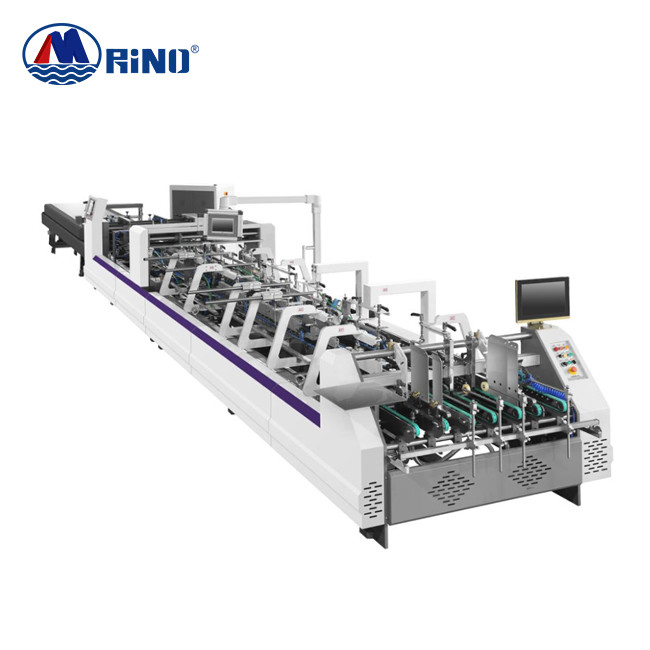

Automatic High Speed Pre-Folder Crash Lock Bottom Folding And Gluing Machine

Folding And Gluing Machine Characteristics

Box folding gluing machine is a pneumatic press type device for edge prefolding,adopts synchronous belt transmission and electronic continuously variable, stable and easy to control and operate,It is widely used in food, medicine cosmetics, stationery, the fold 2 and fold 4 of the processed box can reach 135 degrees and 180 degrees,perfectly combing the requirements of automatic packaging.(we can customize of other size.)

Folding And Gluing Machine Parameter

Model	HF-GBL 850	HF-GBL 1100
Paper Thickness	200-800gsm paperboard,ABCEF Corrugated boxes	200-800gsm paperboard,ABCEF Corrugated boxes
Box Type	Standard box, double sides, lock bottom box, flat mouth box.	Standard box, double sides, lock bottom box, flat mouth box.
Max Speed	400m/min	400m/min
Power	17KW	19KW
Weight	7000KGS	9000KGS
Size	162.01.5m	162.31.5m

Main units

Paper feeding unit

● Feeding knives and left and right registers fixing bar are controlled up and down by pneumatic system easily.
● Feeding knifes are equipped with pneumatic mechanism for smoother feeding.
● Configure the display, real-time monitoring of the paper is normal.

Bottom locked unit

● Configure the spray gun system for automatic spray.
● Lock-bottom assembly mechanism with high elastic hookers is of ideal design,fast and easy operation.

Pressing unit

● Adjust the pressure with the upper and lower belts.For flute A,B corrugated board,overlapping and jogger devices are equipped to ensure box gluing well.
● After kicker is set up,whatever speed the machine runs,the kicker can automatically follow,no need to reset it.

Standard & Optional configuration list

	Configuration	Units	Standard	Optional
1	Feeder section		√
2	Paper Alignment Section		√
3	Pre-fold Section		√
4	Crash lock bottom section		√
5	Upper paste barrel equipment			√
6	Down pasting equipment(R+L)		√

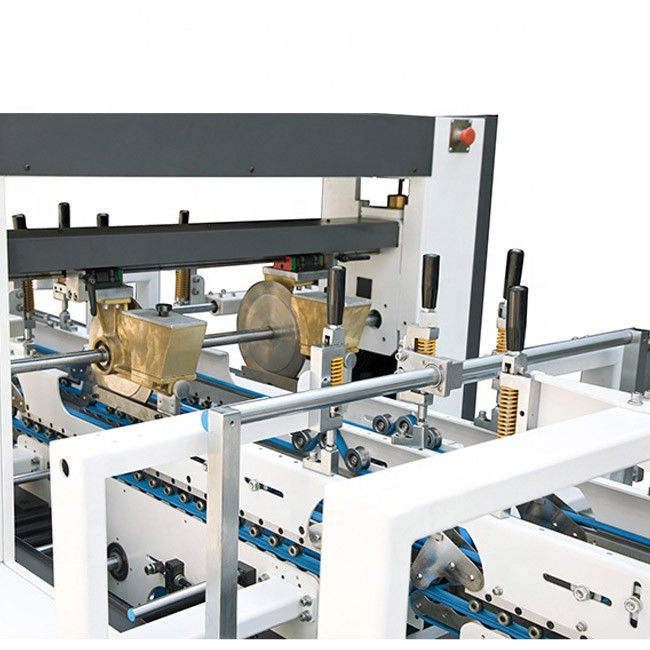

7	Gluing system		√
8	Grinder device
9	Plasma treatment system		√
10	Folding and closing section		√
11	Trombone section		√
12	Press section		√
13	Table (one)		√
14	monitor		√
15	Double-sided adhesive			√

Finished Product

Crash Lock Bottom Folding Gluing Machine 7000kgs For Paperboard 3

Crash Lock Bottom Folding Gluing Machine 7000kgs For Paperboard 4

Tag:

Product Details:
Place of Origin:	China
Brand Name:	RINO
Certification:	CE
Model Number:	HF-GBL850
Payment & Shipping Terms:
Minimum Order Quantity:	1 Set
Price:	Negotiation
Packaging Details:	Wrapped with film or in wooden case
Delivery Time:	40-60 Working Days After Deposit
Payment Terms:	L/C, T/T
Supply Ability:	10 Set/Month
