Product Details:
|
|
Place of Origin: | China |
---|---|
Brand Name: | RINO |
Certification: | CE |
Model Number: | HF-G4&6780 |
Payment & Shipping Terms:
|
|
Minimum Order Quantity: | 1 Set |
Price: | Negotiation |
Packaging Details: | Wrapped with film or in wooden case |
Delivery Time: | 40-60 Working Days After Deposit |
Payment Terms: | L/C, T/T |
Supply Ability: | 10 Set/Month |
Detail Information |
|||
Name: | Automatic 4 6 Corner Folder Gluer Machine For Different Paper Boxes Making | Suitable Paper: | Card Board 210gsm-800gsm |
---|---|---|---|
Maximum Speed: | 350-400m/min | Overall Dimension: | 14000*1500*1400mm |
Total Weight: | 10T | Power Supply: | 11.8KW, 220V/380V,50HZ/60HZ |
Usage: | Paper Folding Gluing Pasting | Glue Type: | Hot Melt Glue |
High Light: | Paper Boxes Folder And Gluer Machine,10T Folder And Gluer Machine,RINO Folder And Gluer Machine |
Product Description

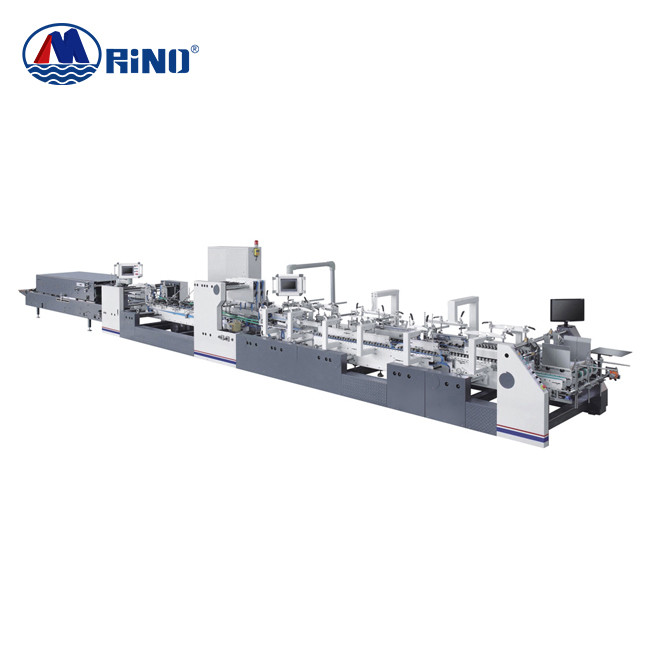

Automatic 4 6 Corner Folder Gluer Machine For Different Paper Boxes Making
Folding And Gluing Machine Characteristics
Box Gluing & Folding Machine is high speed box making machine, widely used for package box/cartons for food, medicine, health care products, cosmetics, alcohol, light industrial products such as the box, are basically using the gluer machine for paste box processing.
Box gluing and folding machine absorb the latest technology and experience at home and abroad, using modular design and the latest processing technology, electrical adopt PLC control, simple operation, the host motor frequency control speed, output controlled by servo motor, the whole structure is reliable.
This type machine focus on making 4-corner box, 6-cornerbox, also for straight line box, hook(bottom lock) box, side glue box, box inside box, mini box, CD box, four corner box, six corner box, and other special (irregular) box.
Folding And Gluing Machine Parameter
HF-G4&6 780 |
||||||
Straightline box | Double sides box | Crash-lock bottom box | 4-corner box | 6-corner box | ||
A | MAX | 800 | 720 | 730 | 700 | 700 |
MIN | 100 | 100 | 130 | 150 | 200 | |
B | MAX | 1000 | 700 | 800 | 500 | 500 |
MIN | 60 | 70 | 60 | 60 | 80 | |
C | MAX | 250 | 180 | 180 | 120 | 120 |
MIN | 8 | 10 | 25 | 20 | 20 |
Main units
Paper feeding unit |
Bottom locked unit |
Pressing unit |

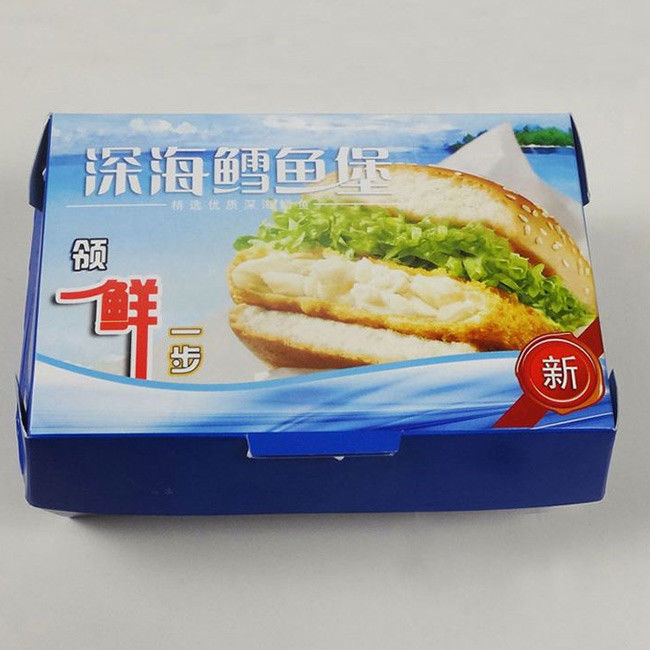

Finished Product
