Product Details:
|
|
| Place of Origin: | China |
|---|---|
| Brand Name: | RINO |
| Certification: | CE |
| Model Number: | HF-GBL800 |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 1 Set |
| Price: | Negotiation |
| Packaging Details: | Wrapped with film or in wooden case |
| Delivery Time: | 40-60 Working Days After Deposit |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 10 Set/Month |
|
Detail Information |
|||
| Name: | Papeboard Prefolding And Bottom Locked Gluing Machine For Wine Box | Suitable Paperboard: | Card Board 200gsm-820gsm,F ,E ,B,C,A Flute |
|---|---|---|---|
| Machine Speed: | 400m/min | Machine Size: | 9500*1300*1350mm |
| Machine Weight: | 3 Ton | Power Consumption: | 8KW, 220V/380V,50HZ/60HZ |
| Usage: | Paper Pasting Gluing Folding | Glue Type: | Hot Melt Glue |
| High Light: | Prefolding High Speed Folding And Gluing Machine,220V High Speed Folding And Gluing Machine,Wine box folder gluer machine |
||
Product Description

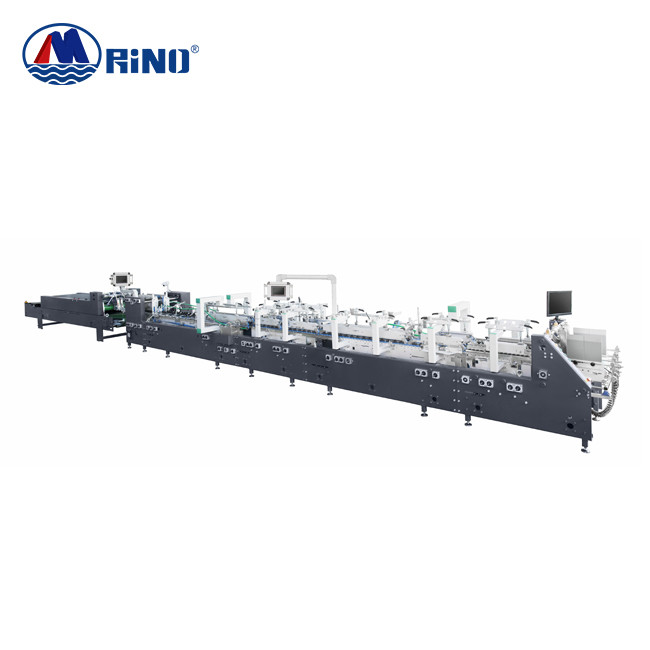

Papeboard Prefolding And Bottom Locked Gluing Machine For Wine Box
Folding And Gluing Machine Characteristics
This machine is specially used for paperboard shaping and adhesive processing after cutting horizontally. Its universality is strong and suitable scope is wide, which can fold and paste various straight seaming box and bottom locked box.
Folding And Gluing Machine Parameter
MODEL: HF-GBL800
| Box | A Max | A Min | B Max | B Min | C Min | D Min | F Min |
| Nornal box | 700mm | 110mm | 620mm | 110mm | 8mm | 70mm | 51mm |
| Bottom lock box | 700mm | 160mm | 520mm | 180mm | 9mm | 90mm | 85mm |
Main units
|
|
Paper feeding unit
Feeder section equipped with three pieces feeding knife, adjust the asymmetrical lengths as per the box sample.Rail width can be horizontally adjusted and set by seven pieces 30mm thickened feeding belt and 10mm metal board.Embossing drive wheel guide the feeding section belt, side feed gates in the right and left are adjustable according to the products.
|
|
|
Bottom locked unit
Complete set of folding hooks and helixes to fold the front flaps of the blank smoothly and accurately. Bottom lock section with three board,which can better apply to the large rash lock bottom boxforming.Sectional-type upper belt board with special design, which can be adjusted according to the products type ,no need to tension belt.
|
|
|
Pressing unit
Equipped with special additional sponge belt for the press of boxes valley part.Upper section moves back and forward, allowing for different box length.Pneumatic pressure regulator.
|
Standard & Optional configuration list
| Configuration | Units | Standard | Optional | |
| 1 | Feeder section | √ | ||
| 2 | Paper Alignment Section | √ | ||
| 3 | Pre-fold Section | √ | ||
| 4 | Crash lock bottom section | √ | ||
| 5 | Upper paste barrel equipment | √ | ||
| 6 | Down pasting equipment(R+L) | √ | ||
| 7 | Gluing system | √ | ||
| 8 | Grinder device | |||
| 9 | Plasma treatment system | √ | ||
| 10 | Folding and closing section | √ | ||
| 11 | Trombone section | √ | ||
| 12 | Press section | √ | ||
| 13 | Table (one) | √ | ||
| 14 | monitor | √ | ||
| 15 | Double-sided adhesive | √ |

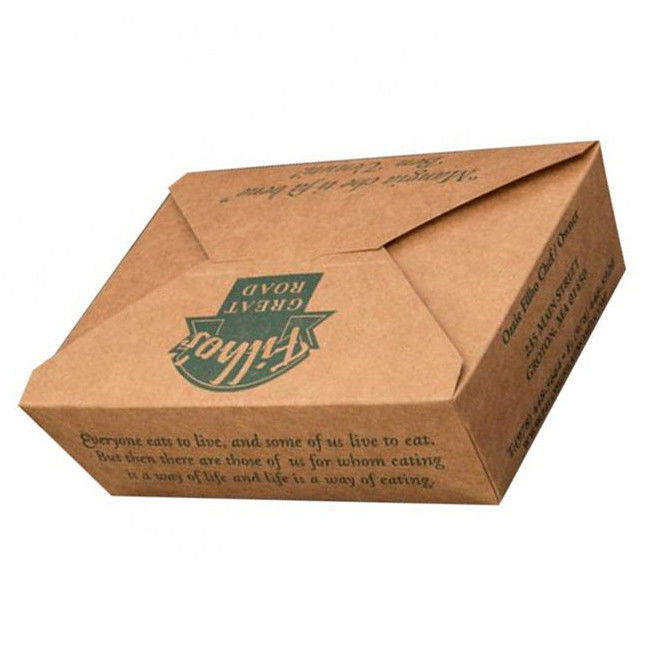

Finished Product
