Product Details:
|
|
| Place of Origin: | China |
|---|---|
| Brand Name: | RINO |
| Certification: | CE |
| Model Number: | HF-G 4&6 1450 |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 1 Set |
| Price: | Negotiation |
| Packaging Details: | Wrapped with film or in wooden case |
| Delivery Time: | 40-60 Working Days After Deposit |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 10 Set/Month |
|
Detail Information |
|||
| Name: | 1450 4 6 Corner High Speed Folding And Gluing Machine Straight Line Bottom Locked Box | Suitable Material: | Card Board 210gsm-850gsm,F ,E ,B,C ,A Flute |
|---|---|---|---|
| Maximum Speed: | 300m/min | Overall Dimension: | 19600*2300*1650mm |
| Weight: | 13T | Power Consumption: | 27.2KW, 380V,50HZ |
| Usage: | Cardboard Folding Pasting Gluing | Glue Type: | Hot Melt Glue |
| High Light: | Bottom Locked Box folding gluer machine,Straight Line folding gluer machine,300m/Min Folding Gluer Machine |
||
Product Description

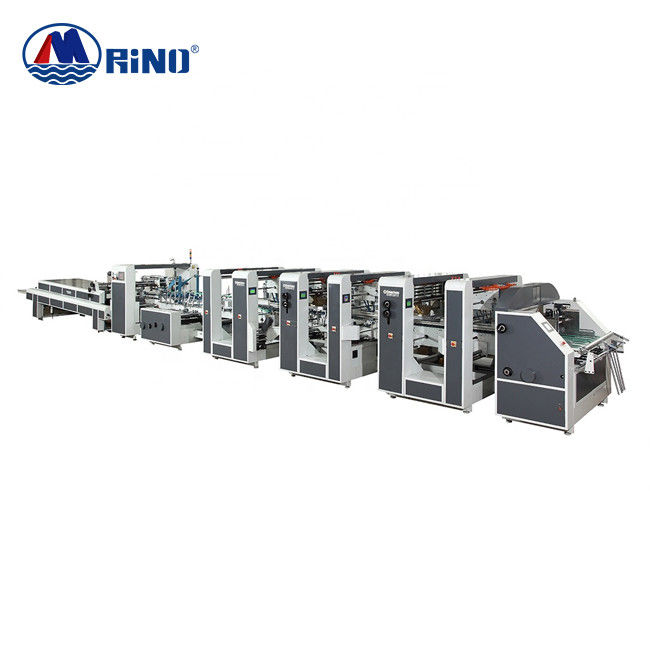

1450 4 6 Corner High Speed Folding And Gluing Machine Straight Line Bottom Locked Box
Folding And Gluing Machine Characteristics
High speed and crash lock bottom4 6 corner automatic folder gluer .The forming beautiful shape, easy to fill boxes in kind, more convenient to open.Separate operation before and after the single transducer.
System Configuration
1. Paired-pulse high-frequency occurrence of the second inverter system
2. Can be run in accordance with the automatic speed adjustment to achieve power
3. To set the speed and power to match the scope of work pressure nozzle, automatic restart
4. A variety of fault detection alarm, multi-level password protection
5. Assembly of imported parts, cost-effective
Folding And Gluing Machine Parameter
| Model |
HF-G 4&6 1450 |
| Suitable material | Card board 210gsm-850gsm |
| Suitable material | F ,E ,B,C ,Aflute |
| Max method | Automatic continuous feeding |
| Max mechanical speed | 300m/min |
| Overall dimension | 19600*2300*1650mm |
| Weight | 13T |
| Power consumption | 27.2KW, 380V,50HZ |
| Glue type | Hot melt glue |
| Compressed air | 6 bar,10 m³/h,60 L |
Main units
|
|
Paper feeding unit
Releasing section adopt widened belt with suction device, to ensure continuous, precise, and auto feeding.
|
|
|
Bottom locked unit
Realized by screw ,easy and convenient for changing for the making of lock bottom box.
|
|
|
Pressing unit
The pressing unit is in pneumatic design ( air pressure system ) and Patting function completely avoiding fishtail box to firm the glue.
|
Standard & Optional configuration list
| Configuration | Units | Standard | Optional | |
| 1 | Feeder section | √ | ||
| 2 | Paper Alignment Section | √ | ||
| 3 | Pre-fold Section | √ | ||
| 4 | Crash lock bottom section | √ | ||
| 5 | Upper paste barrel equipment | √ | ||
| 6 | Down pasting equipment(R+L) | √ | ||
| 7 | Gluing system | √ | ||
| 8 | Grinder device | |||
| 9 | Plasma treatment system | √ | ||
| 10 | Folding and closing section | √ | ||
| 11 | Trombone section | √ | ||
| 12 | Press section | √ | ||
| 13 | Table (one) | √ | ||
| 14 | 4-6 corner | √ | ||
| 15 | monitor | √ | ||
| 16 | Double-sided adhesive | √ |
Machine configuration
| Main motor | Siemens |
| PLC | Siemens |
| Inverter | Siemens |
| Touch Screen | Siemens |
| Driveing Bearing | NSK |
| Main axis | Taiwan chrome plated steel bar |
| Wall thickness (right +left side) | 20mm tempered |
| Feeding belt | NITTA |
| Plain belt | NITTA Japan |
| Low voltage apparatus | Schneider(Rely,Button,Circuit Breaker,a.c. contactor) |
| servo system | Delta Taiwan For 4&6 corner box |
| Gluing system | KQ for 4&6 corner box |
| Encoder | Panasonic |

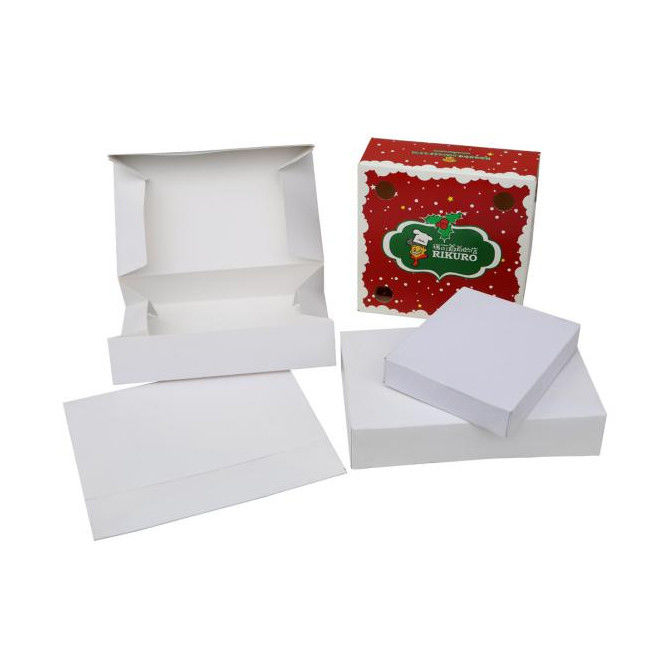

Finished Product
