Product Details:
|
|
Place of Origin: | China |
---|---|
Brand Name: | RINO |
Certification: | CE |
Model Number: | HF-GBL780 |
Payment & Shipping Terms:
|
|
Minimum Order Quantity: | 1 Set |
Price: | Negotiation |
Packaging Details: | Wrapped with film or in wooden case |
Delivery Time: | 40-60 Working Days After Deposit |
Payment Terms: | L/C, T/T |
Supply Ability: | 10 Set/Month |
Detail Information |
|||
Name: | Folding And Gluing Machine Box Folder Gluer Machine For Crash Bottom Lock 4 6 Corners Box | Suitable Board: | Card Board 210gsm-800gsm |
---|---|---|---|
Maximum Machine Speed: | 350-400m/min | Overall Dimension: | 14*1.5*1.4m |
Total Weight: | 10000kgs | Power Supply: | 11.8KW, 220V/380V |
Usage: | Paper Carton Folding Gluing Pasting | Glue Type: | Hot Melt Glue |
High Light: | 11.8KW High Speed Folding And Gluing Machine,220V High Speed Folding And Gluing Machine,box folding and gluing machine |
Product Description

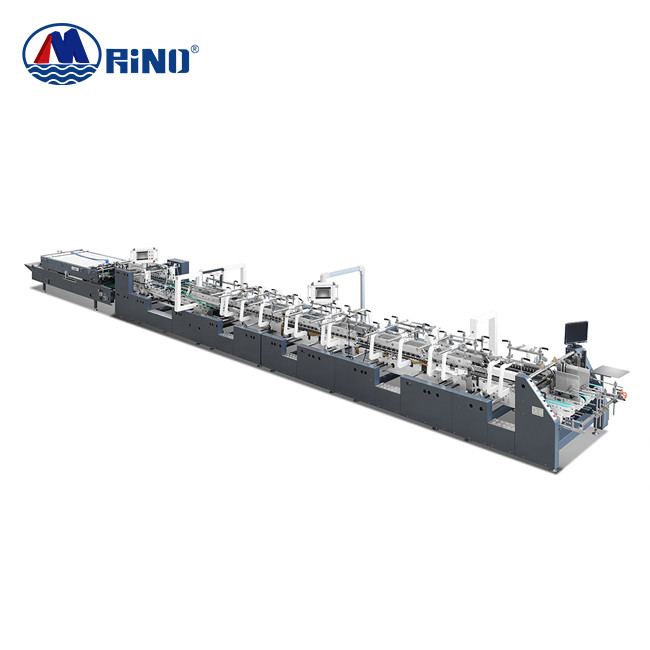

Folding And Gluing Machine Box Folder Gluer Machine For Crash Bottom Lock 4 6 Corners Box
Folding And Gluing Machine Characteristics
* Fully automatic corrugated box folder gluer machine carton prefolding gluing machine.
* This machine is specially used for paperboard shaping and adhesive processing after cutting horizontally.
* Its universality is strong and suitable scope is wide, which can fold and paste various straight seaming box and bottom medging box.
* The machine belongs to the equipment with four-folded/edged-bottom, it’s able to 2-folding, 4-folding with bottom mgluing.
* In the pre-folding part, the first fold and the third fold can be changed by 180 degree or 150 degree. The second fold and mthe fourth fold can be molded in 180 degree.
* Use of imported electrical appliances and accessories.
* The before and after has separated single inverter operation, has the characteristics of high speed, reasonable structure,
convenient and flexible operation.
* It’s suitable for pasting the boxes such as edged-medicine box, wine box, cosmetic box, CD box, and French fries box, as mwell as pasting the paper box without edged-bottom.
Folding And Gluing Machine Parameter
HF-GBL780 |
||||||
Straightline box | Double sides box | Crash-lock bottom box | 4-corner box | 6-corner box | ||
A | MAX | 800 | 720 | 730 | 700 | 700 |
MIN | 100 | 100 | 130 | 150 | 200 | |
B | MAX | 1000 | 700 | 800 | 500 | 500 |
MIN | 60 | 70 | 60 | 60 | 80 | |
C | MAX | 250 | 180 | 180 | 120 | 120 |
MIN | 8 | 10 | 25 | 20 | 20 |
Main units
![]() |
Paper feeding unit
|
![]() |
Bottom locked unit
|

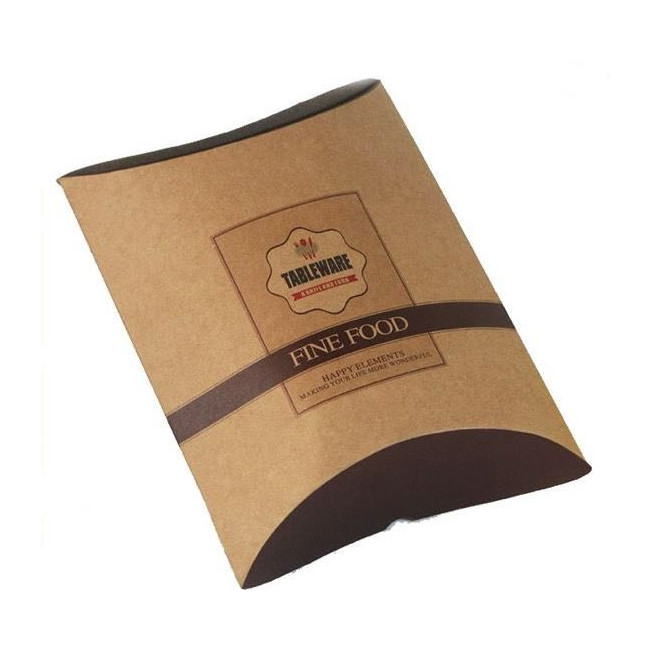

Finished Product
