Product Details:
|
|
| Place of Origin: | China |
|---|---|
| Brand Name: | RINO |
| Certification: | CE |
| Model Number: | HF-GSL800 |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 1 Set |
| Price: | Negotiation |
| Packaging Details: | Wrapped with film or in wooden case |
| Delivery Time: | 40-60 Working Days After Deposit |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 10 Set/Month |
|
Detail Information |
|||
| Name: | High Speed Straight Line Folding And Gluing Machine For Paper Box | Suitable Paperboard: | Card Board 200gsm-820gsm |
|---|---|---|---|
| Maximum Speed: | 400m/min | Machine Dimension: | 7500*1300*1350mm |
| Total Weight: | 2000kgs | Power Supply: | 6KW, 220V/380V,50HZ/60HZ |
| Usage: | Paperboard Pasting Gluing | Glue: | Cold Glue |
| High Light: | 400m/min Folding And Gluing Machine,Straight Line Folding And Gluing Machine |
||
Product Description

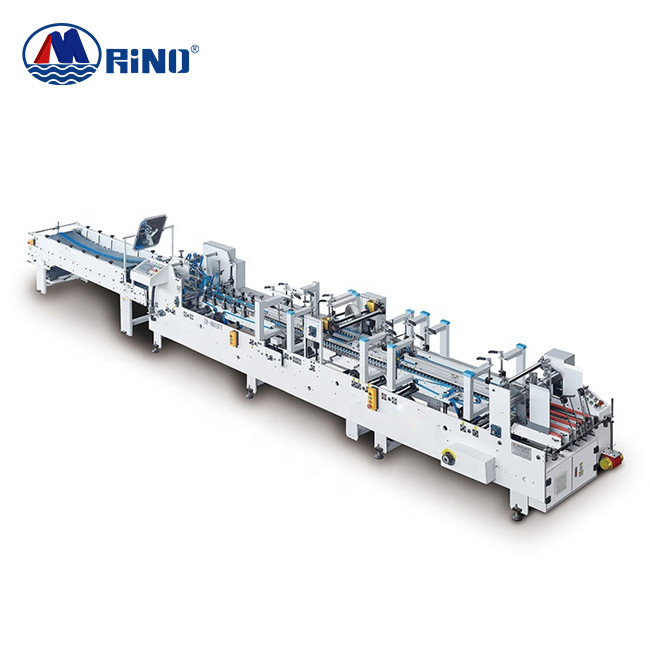

High Speed Straight Line Folding And Gluing Machine For Paper Box
Folding And Gluing Machine Characteristics
1. The partial paper feeding adopt the monomer structure,it is extremely convenient to movethe assemble and disassemble.
2. Adopt the integral sealde glue box,so as to make glue not easyto evaporate,move conveniently.
3. The move row adopts the two-way screw rod to adjust,fast and simple.
4. The transmission adopts the synchronous belt and mast top,accurate,ensure to paste box perfect quality.
Folding And Gluing Machine Parameter
MODEL: HF-GSL800
| Box | A Max | A Min | B Max | B Min | C Min | D Min | F Min |
| Normal box | 700mm | 110mm | 620mm | 110mm | 8mm | 70mm | 51mm |
Main units
|
|
Paper feeding unit
1.Adjustable feeding belts to ensure easy adjustment,stable and smoothly feeding. 2.Continuously Variable Speeder to ensure feeding internal and stable transmission.
|
|
|
Pressing unit
1.Driven by independent motor,feeding belt has a function of air suction. 2.Upper section moves back and forward,allowing for different box length.
|
Finished Product
