8mm Scrap Carton Box Die Cutting Machine With Lead Edge Feeding

Product Details:
Place of Origin: Shandong,China
Brand Name: RINO
Certification: CE
Model Number: HD-L1650
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiation
Packaging Details: Wrapped with film or in wooden case
Delivery Time: 40-60 Working Days After Deposit
Payment Terms: L/C, T/T
Supply Ability: 10 Set/Month
  • Detail Information
  • Product Description

Detail Information

Name: Automatic Carton Box Die Cutting Machine With Lead Edge Feeding Maximum Paperboard Size: 1650mm*1210mm
Minimum Paperboard Size: 650mm*500mm Die Cutting Precision: ±0.4mm
Maximum Speed: 4000S/H Total Power: 37.2KW
Total Weight: 27T Minimum Front Scrap Size: ≥8mm
High Light:

4000S/H Carton Box Die Cutting Machine

,

8mm Scrap Die Cutting Machine

,

0.4mm Carton Box Die Cutting Machine

Product Description

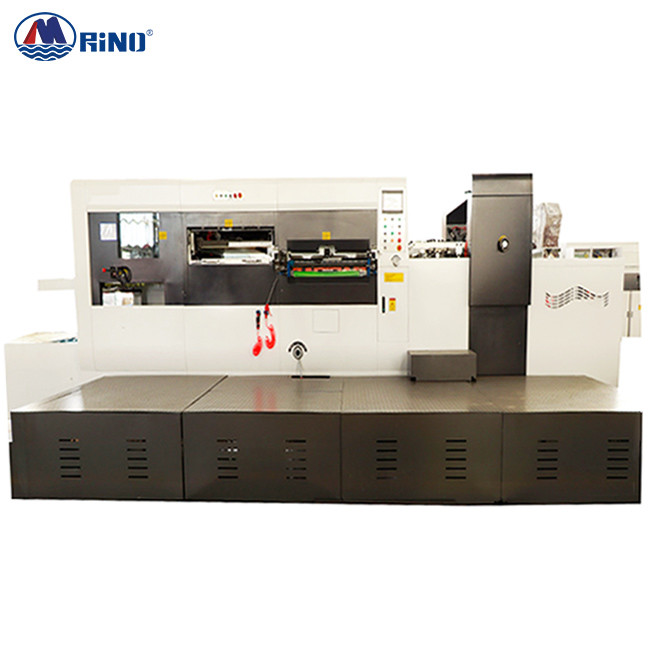

Automatic Carton Box Die Cutting Machine With Lead Edge Feeding



Carton Box Die Cutting Machine Introduction



This die cutting machine is combined with advantages of similar products in domestic and overseas, is special equipment for packing products such as cartons . Front, back and side registration mechanism ensures great precision of die cutting. Other parts are adopted such as intermittent mechanism with high precision, pneumatic clutch and pneumatic closed up mechanism, programmable controller and man-machine interface. The interface can display various digital information of machine such as working speed, amount of paper processed, total running time, etc. It is easy to eliminate troubles according to the display of trouble shooting. Transducer is adopted to control the main motor in achieving step-less speed variation. This machine is equipped with sensors and safety device to ensure normal operationof machine and safety of workers.



Carton Box Die Cutting Machine Parameter



Maximum paper size 1650mm*1210mm
Minimum paper size 650mm*500mm
Die cutting precision ±0.4mm
Maximum die cutting pressure 300T
Pressure adjustment range ±1mm
Minimum front scrap size ≥8mm
Maximum speed 4000S/H
Total power 37.2KW
Weight ≈27T



Main Units



8mm Scrap Carton Box Die Cutting Machine With Lead Edge Feeding 0

Paper feeding unit



1. Equipped with lead edge feeder, it can prevent the cardboard damage by the black
2. Independent servo actuator can assure the cardboard send to right position and avoid crash on the paper
3. The big power suction fan and the adjusted wind system work for 1-9mm corrugated box.



8mm Scrap Carton Box Die Cutting Machine With Lead Edge Feeding 1

Die cutting unit



1. Die cutting chase fixed accurately by pneumatic lock system

2. Die cutting plate is putted in and out by air floating device

3. Electric clutch system of main chain can assure the chain steady when it is stopped at high speed



8mm Scrap Carton Box Die Cutting Machine With Lead Edge Feeding 2

Electrical unit



The whole machine adopts PLC centralized control system

Adopt Japan Yaskawa inverter.





Finished Products



8mm Scrap Carton Box Die Cutting Machine With Lead Edge Feeding 3



Main Electrical Appliances



No Name Brand Remark
1 Frequency converter Yaskawa Japan
2 PLC Siemens Germany
3 Electrical switches Omron/Schneider Japan/France
4 Touch screen Siemens Germany
5 Wallboard Chuanban China
6 Upper and lower platform Ductile iron China
7 Tooth row Aviation aluminum China
8 Tooth row chain TYC Taiwan
9 Double-row chain Renold Britain
10 Cam divider (intermittent box) Taiwan Taiwan
11 Die-cut steel plate 75Cr1 China
12 Main bearings NSK Japan
13 Worm gear Wear-resistant tin copper worm gear China
14 Pneumatic clutch OMPI s.r.l Italy
15 Knife plate liner 75Cr1 China
