Product Details:
|
|
| Place of Origin: | China |
|---|---|
| Brand Name: | RINO |
| Certification: | CE |
| Model Number: | HF-G 4&6 850 |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 1 Set |
| Price: | Negotiation |
| Packaging Details: | Wrapped with film or in wooden case |
| Delivery Time: | 40-60 Working Days After Deposit |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 10 Set/Month |
|
Detail Information |
|||
| Name: | 850 Automatic Crash Lock Bottom High Speed Folding And Gluing Machine | Suitable Material: | Card Board 200gsm-800gsm,F ,E ,B,C Flute |
|---|---|---|---|
| Max Mechanical Speed: | 400m/min | Overall Dimension: | 16*2.0*1.5m |
| Weight: | 7T | Power Consumption: | 17KW, 380V,50HZ |
| Usage: | Paperboard Pasting Gluing | Glue Type: | Cold Glue |
| High Light: | 400m/min corrugated folder gluer machine,17KW Corrugated Folder Gluer Machine |
||
Product Description

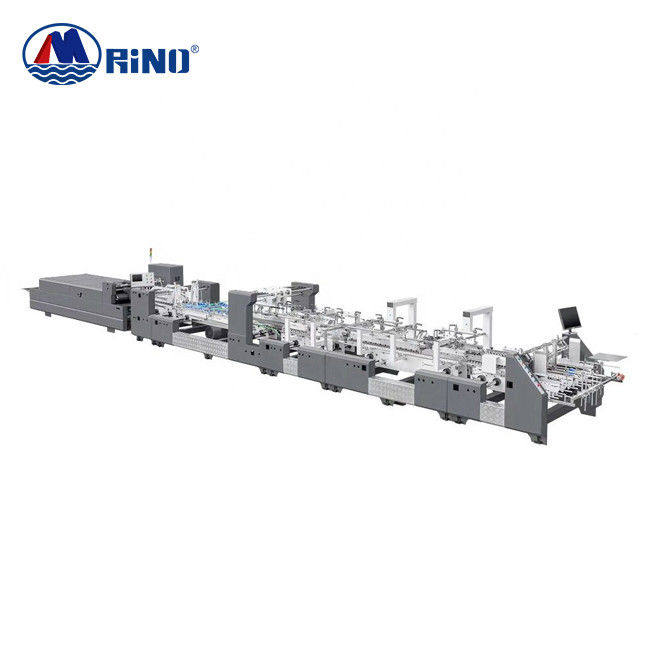

850 Automatic Crash Lock Bottom High Speed Folding And Gluing Machine
Folding And Gluing Machine Characteristics
1. Humanized design,a hexagonal wrench can adjust most of the parts,debugging easy;
2. Touch Screen, button, remote control distance, three panels of the trinity are operating equipment. Convenient and quickly.
3. The machine wallboard and some complex casting using computer laser cutting, dominant board conditioning treatment after hot and cold.
4. Parts design, processing precision, good stability, high speed low noise, good durability.
5. Bearing adopts Japan NSK bearing, the main shaft adopts hard chrome steel rods, fastening bolt use 1.9 on the richer scale.
6. Main motor adopt Taiwan TECO brand, pressing machine adopt Taiwan SHENG BOND precision CPG brand.
8. Master electrical frequency converter, PLC. Schneider Brand, the higher WEINVIEW touch screen TAIWAN BRAND.
9. Wedge pulleys and wedge belt adopts FRENCH Hutchinson Brand.Conveyor belt by Swiss RAPPLON, Flat belt adopt Japan NITTA belt.
Folding And Gluing Machine Parameter
Main units
|
|
Paper feeding unit
1. Independent servo motor drive, high speed operation Is accurate transfer paper, so as to achieve the best capacity;
|
|
|

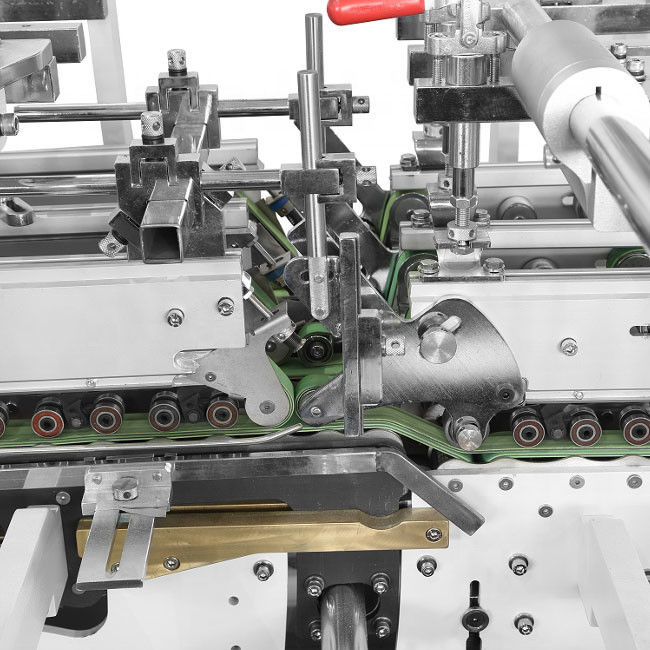

Bottom locked unit
Equipped with bottom combination adjustment mechanism, ideal design and easy operation,high stiffness spring hook to ensure accurate action.
|
|
|
Pressing unit
According to the different length of the box, conveyor belt pressure driven by motor, can move, configure automatic correction device; Pressure adjustment with pneumatic system, it is convenient adjustment.
|
Standard & Optional configuration list
| Configuration | Units | Standard | Optional | |
| 1 | Feeder section | √ | ||
| 2 | Paper Alignment Section | √ | ||
| 3 | Pre-fold Section | √ | ||
| 4 | Crash lock bottom section | √ | ||
| 5 | Upper paste barrel equipment | √ | ||
| 6 | Down pasting equipment(R+L) | √ | ||
| 7 | Gluing system | √ | ||
| 8 | Grinder device | |||
| 9 | Plasma treatment system | √ | ||
| 10 | Folding and closing section | √ | ||
| 11 | Trombone section | √ | ||
| 12 | Press section | √ | ||
| 13 | Table (one) | √ | ||
| 14 | monitor | √ | ||
| 15 | Double-sided adhesive | √ |
Finished Product
