Product Details:
|
|
| Place of Origin: | Shandong,China |
|---|---|
| Brand Name: | RINO |
| Certification: | CE |
| Model Number: | HD-L1650 |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 1 Set |
| Price: | Negotiation |
| Packaging Details: | Wrapped with film or in wooden case |
| Delivery Time: | 40-60 Working Days After Deposit |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 10 Set/Month |
|
Detail Information |
|||
| Name: | Automatic Carton Box Die Cutting And Creasing Machine Lead Edge Feeder For Corrugated Board | Maximum Paperboard Size: | 1670*1200mm |
|---|---|---|---|
| Minimum Paperboard Size: | 500*550mm | Die Cutting Precision: | ±1mm |
| Maximum Speed: | 5000sheets/h | Power Supply: | 32KW |
| Total Weight: | 23000kg | Minimum Front Scrap Size: | ≥8mm |
| High Light: | RINO Automatic Die Cutting And Creasing Machine,5000 Sheets/H Die Cutting And Creasing Machine |
||
Product Description

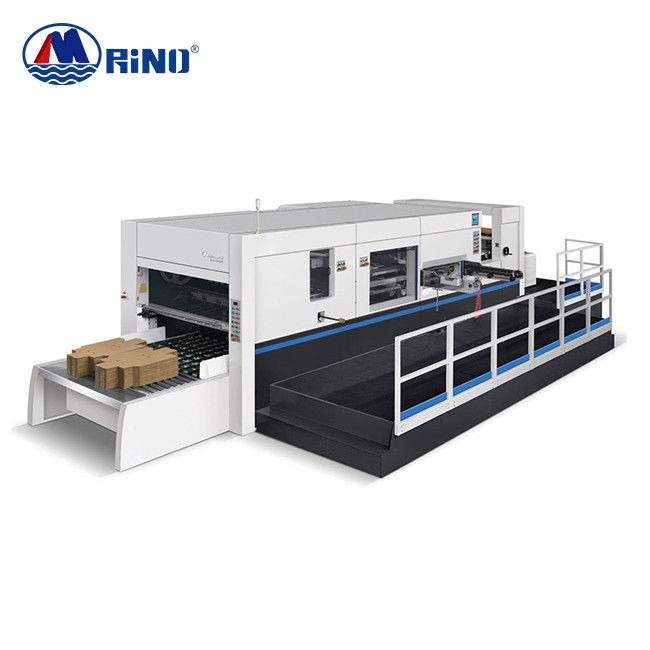

Automatic Carton Box Die Cutting And Creasing Machine Lead Edge Feeder For Corrugated Board
Carton Box Die Cutting Machine Introduction
Automatic Die-cutting&Creasing Machine with Stripping(Lead Edge Feeder) ,it can efficiently complete the die cutting and embossing of products,as well as maintaining the highest precision and product quality.The Automatic Die-cutting&Creasing Machine with Stripping(Lead Edge Feeder) are well equipped and almost can adapt to all die cutting requirements of products.
1. Adopt nodular cast iron-QT500-7, the mainframe wallboard casting by special technology process, thus featuring by high strength, never deformation and ensure the safety of the mainframe wallboard.
2. Adopt Taiwan-imported intermittent mechanism to ensure that the machine operates accurately. Also, the main engine is equipped with overload protection device and torque limit clutch,to ensure that when they being impacted by external force can stops immediately to reduce the damage to the machine body and teeth precision and reduce the occurrence of failure rate.
Carton Box Die Cutting Machine Parameter
| Model | HD-L1650 |
| Max. paper size | 1670*1200mm |
| Min. paper size | 500*550mm |
| Max. die-cutting size | 1650*1180mm |
| Max.die-cutting pressure | 400N/cm2 |
|
Cardboard
Corrugated paper |
200-2000g/m2 ≤6mm |
| Max. die-cutting speed | 4500sheets/h |
| Max. feeding pile height | 1100mm |
| Total power | 32KW |
|
Total Weight
|
23T |
|
Overall Dimensions
|
7000*2980*2450mm |
Main Units
|
|

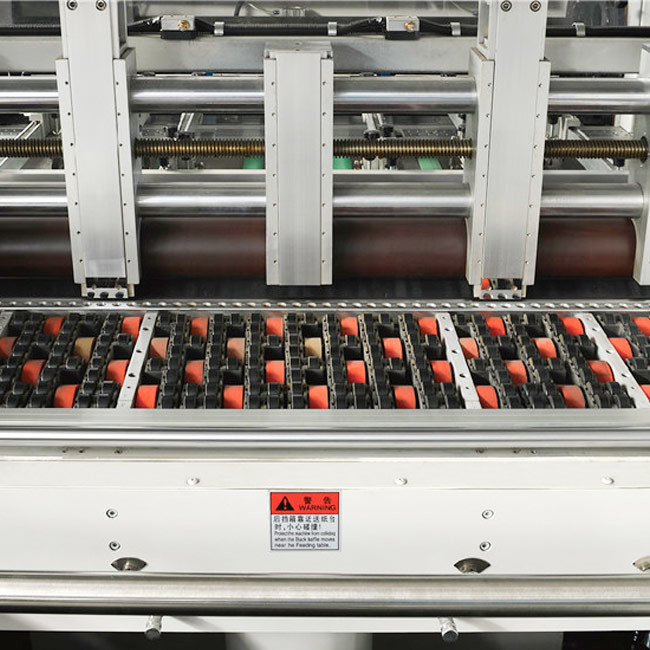

Paper feeding unit
* Top gear and precise Lead Edge Feeder design,allowed consistent feeding with various quality corrugated board * New technology polyurethane wheel surface with grid lifter and air cushion ensure smooth feeding and accurate alignent even warped board
|
|
|
Die cutting unit
* The Ni-Cr-Mo metal steel crank shaft Through the special craft processing,imported from Germany. * Super wear-resistant worm and gear imported from Taiwan * Knife template turnover device that is convenient and fast
|
Finished Products

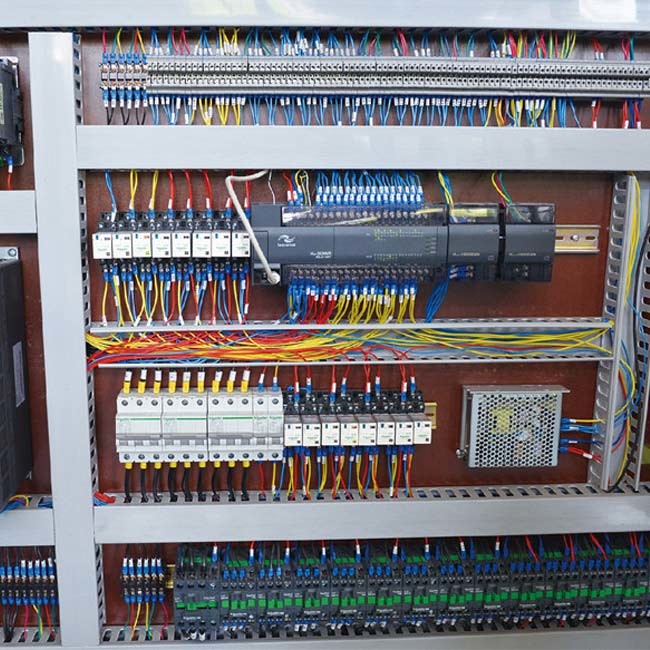

Main Electrical Appliances
| Equipment | Brand |
| Timing belt | Obi, Gates, EP |
| Mold spring | |
| Crankshaft material and processing | Japanese special steel |
| Vortex material and processing | Japanese special steel |
| Vortex material and processing | Japanese special steel |
| Cam material and processing | Japanese special steel |
| Encoder | Ikea, Switzerland |
