Auto Carton Box Die Cutting Machine , 32KW CE Corrugated Box Die Punching Machine

Product Details:
Place of Origin: Shandong,China
Brand Name: RINO
Certification: CE
Model Number: HD-L1650
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiation
Packaging Details: Wrapped with film or in wooden case
Delivery Time: 40-60 Working Days After Deposit
Payment Terms: L/C, T/T
Supply Ability: 10 Set/Month
  • Detail Information
  • Product Description

Detail Information

Name: Carton Box Die Cutting Machine Automatic Leading Edge Feeding Punching Machine Die Cutter Maximum Paperboard Size: 1670*1200mm
Minimum Paperboard Size: 500*550mm Die Cutting Precision: ±1mm
Maximum Speed: 4500sheets/h Power: 32KW
Weight: 23000kg Minimum Front Scrap Size: ≥8mm
High Light:

Auto Carton Box Die Cutting Machine

,

CE Carton Box Die Cutting Machine

,

32KW Corrugated Box Die Punching Machine

Product Description

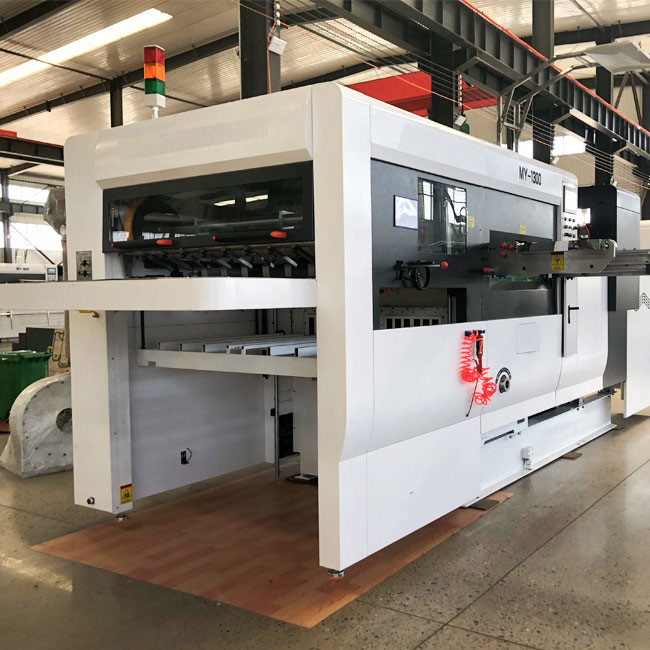

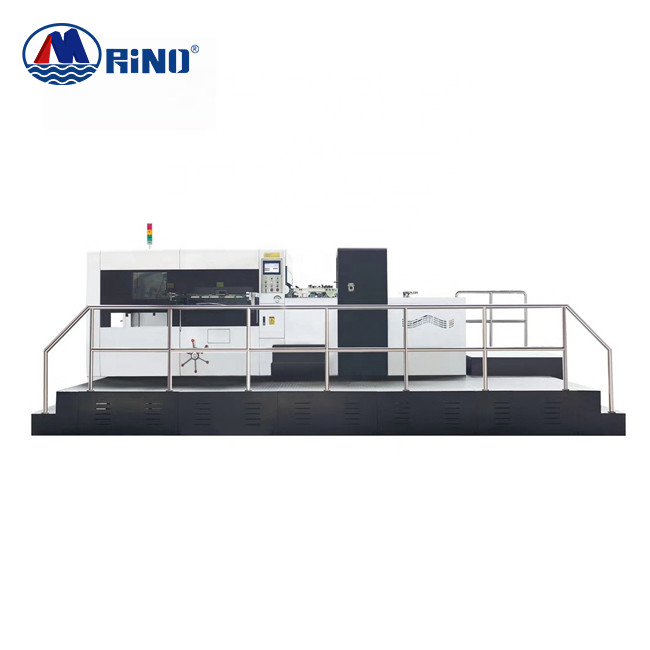

Carton Box Die Cutting Machine Automatic Leading Edge Feeding Punching Machine Die Cutter



Carton Box Die Cutting Machine Introduction



1. Adopt automatic centralized lubricating system and setting main chain lubricating system by HMI.
2.  Patented design shock absorption system can prolong the life of main body and increase the pressure.
3. The intermittent gearbox made in Taiwancan assure the accurate registration and decrease the gripper attack.



Carton Box Die Cutting Machine Parameter



Model HD-L1650
Max. paper size 1670*1200mm
Min. paper size 500*550mm
Max. die-cutting size 1650*1180mm
Max.die-cutting pressure 400N/cm2

Cardboard



Corrugated paper

200-2000g/m2

≤6mm
Max. die-cutting speed 4500sheets/h
Max. feeding pile height 1100mm
(above the level)
Total power 32KW

Weight



23T

Dimensions



7000*2980*2450mm




Main Units



Auto Carton Box Die Cutting Machine , 32KW CE Corrugated Box Die Punching Machine 0

Paper feeding unit



Additional brush wheels and pressing wheels for thin paper and corrugated board running

Advance push and pull lay of registration can assure the die cutting precision

Rikko light front lay detection system prevent the slanting paper move in main body



Auto Carton Box Die Cutting Machine , 32KW CE Corrugated Box Die Punching Machine 1

Die cutting unit



Main chain and assist chain is lubricated periodically controlled by PLC

Protection window of diecutting can hold the main body clean

Lightweight and durable aluminum alloy 5-piece gripper bars with chain of Renold UK ensure accurate



Auto Carton Box Die Cutting Machine , 32KW CE Corrugated Box Die Punching Machine 2

Electrical unit



The whole machine adopts PLC centralized control system

Adopt Japan Yaskawa inverter





Finished Products



Auto Carton Box Die Cutting Machine , 32KW CE Corrugated Box Die Punching Machine 3



Main Electrical Appliances



Equipment Brand
Timing belt Obi, Gates, EP
Mold spring
Crankshaft material and processing Japanese special steel
Vortex material and processing Japanese special steel
Vortex material and processing Japanese special steel
Cam material and processing Japanese special steel
Encoder Ikea, Switzerland


Auto Carton Box Die Cutting Machine , 32KW CE Corrugated Box Die Punching Machine 4
