Product Details:
|
|
| Place of Origin: | Shandong,China |
|---|---|
| Brand Name: | RINO |
| Certification: | CE |
| Model Number: | HD-L1500 |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 1 Set |
| Price: | Negotiation |
| Packaging Details: | Wrapped with film or in wooden case |
| Delivery Time: | 40-60 Working Days After Deposit |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 10 Set/Month |
|
Detail Information |
|||
| Name: | 1500 Automatic Lead Edge Feeding Carton Box Die Cutting Machine Die Cutter For Corrugated Paper | Maximum Paper Size: | 1510*1120mm |
|---|---|---|---|
| Minimum Paper Size: | 450*550mm | Die Cutting Precision: | ±1mm |
| Maximum Speed: | 5000sheets/h | Power: | 24.5KW |
| Weight: | 19.5T | Minimum Front Scrap Size: | ≥8mm |
| High Light: | 5000 Sheets/H Carton Box Die Cutting Machine,1510mm Carton Box Die Cutting Machine,1510*1120mm Corrugated Die Cutter |
||
Product Description

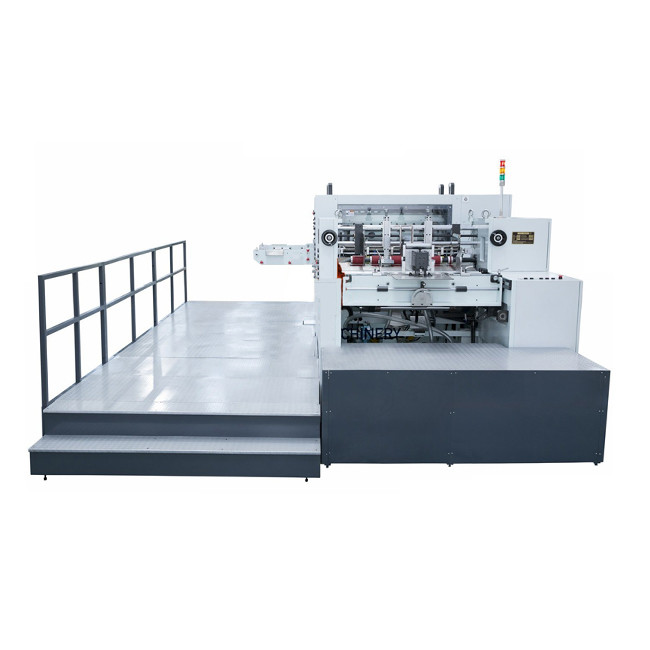

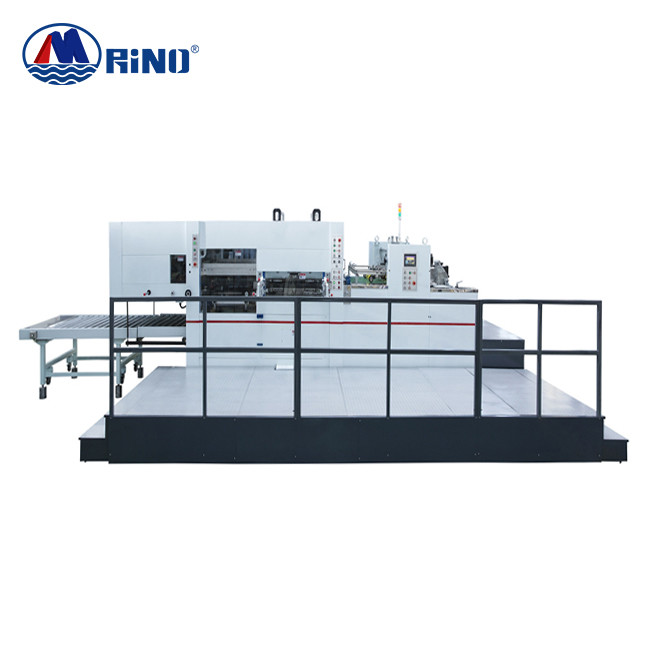

1500 Automatic Lead Edge Feeding Carton Box Die Cutting Machine Die Cutter For Corrugated Paper
Carton Box Die Cutting Machine Introduction
1. Air clutch, clutch quickly, large power transmission.
2. Air lock plate, positioning accuracy, reliable and convenient.
3. High Precision intermittent motion mechanism
4. Imported electrical appliances,stable and reliable.
5. PLC Controlled touching screen and fault showing system makes an easy and convenience operation.
Carton Box Die Cutting Machine Parameter
| Model | HD-L1500 |
| Max. paper size | 1510*1120mm |
| Min. paper size | 450*550mm |
| Max. die-cutting size | 1490*1100mm |
| Max.die-cutting pressure | 380N/cm2 |
|
Cardboard
Corrugated paper |
200-2000g/m2 ≤6mm |
| Max. die-cutting speed | 5000sheets/h |
| Max. feeding pile height | 1100mm (above the level) |
| Total power | 24.5KW |
|
Weight
|
19.5T |
|
Dimensions
|
6200*2380*2356mm |
Main Units
|
|
Paper feeding unit
* Independent servo-type leading edge, paper feeding mode can adjust the transfer length arbitrarily, maximizing reduce the damage to the strength of corrugated board
* Left and right baffle can be electrically adjusted
|
|
|
Die cutting unit
* Safe and flexible design of the rotating device makes the board adjustment board faster and more convenient
* The frame is made of pneumatic lock plate, the protective beam and the lock nut are designed to make the template more stable
|
|
|
Stripping unit
The complete waste removal system can automatically remove waste materials around and in the middle to ensure clean, neat waste removal and high production efficiency.
|
Finished Products
Main Electrical Appliances
| Equipment | Brand |
| Timing belt | Obi, Gates, EP |
| Mold spring | |
| Crankshaft material and processing | Japanese special steel |
| Vortex material and processing | Japanese special steel |
| Vortex material and processing | Japanese special steel |
| Cam material and processing | Japanese special steel |
| Encoder | Ikea, Switzerland |
