Product Details:
|
|
| Place of Origin: | China |
|---|---|
| Brand Name: | RINO |
| Certification: | CE |
| Model Number: | HD-LR1600 |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 1 Set |
| Price: | Negotiation |
| Packaging Details: | Wrapped with film or in wooden case |
| Delivery Time: | 20 Working Days After Deposit |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100 Set/Month |
|
Detail Information |
|||
| Name: | Corrugated Board Lead Edge Feeding Rotary Die Cutting Machin | Max. Paper Size: | 1600×2800mm |
|---|---|---|---|
| Min. Paper Size: | 450×550mm | Max. Die-cutting Size: | 1600×2600mm |
| Corrugated Paper: | 8mm（max. Thickness） | Max. Die-cutting Speed: | 120 Sheets/min |
| Voltage: | 220V/380V | Max. Die-cutting Pressure: | 300N/cm2 |
Product Description

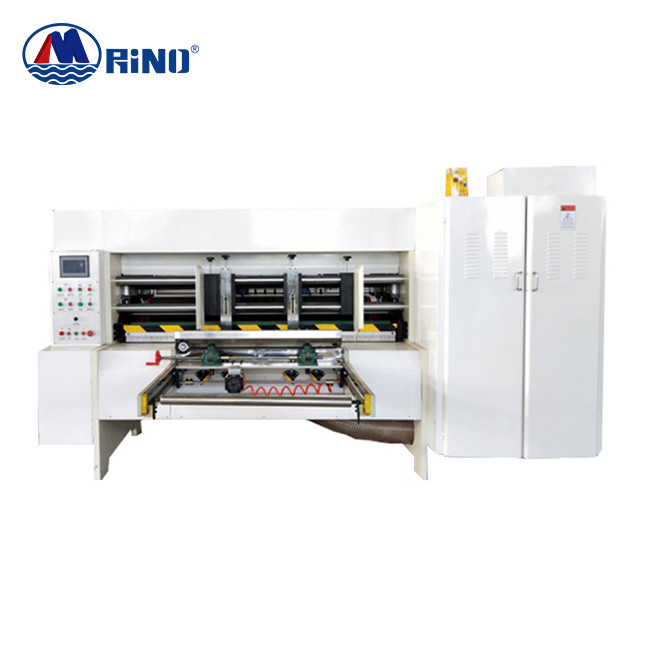

Rotary Carton Box Die Cutting Machine With Lead Edge Feeding In China
Die Cutting Machine Introduction
The corrugated cardboard automatic rotary die-cutting machine adopts a double-roller rotary rolling method to complete trimming, incision, rolling, pressing and folding marks, punching, punching and other processes of low, medium and high-grade corrugated cardboard in one go It is an ideal equipment for making special-shaped cartons and cartons.
The corrugated board automatic riptary die-cutting machine adopts vacuum adsorption to assist paper feeding, main machine electromagnetic speed regulation, 360° electric adjustment of stencil roller, and automatic compensation of line speed of rubber roller. At the same time, the corrugated board automatic rotary die cutting machine is equipped with an electronic counter and a rubber sleeve repair device.
Parameter
| Model | HD-LR 1600 |
| Max. paper size | 1600×2800mm |
| Min. paper size | 450×550mm |
| Max. die-cutting size | 1600×2600mm |
| Max. die-cutting pressure | 300N/cm2 |
| Corrugated paper | 8mm(max. thickness) |
| Die-cutting precision | ±0.1mm |
| Max. die-cutting speed | 120 sheets/min |
Main Units
|
|

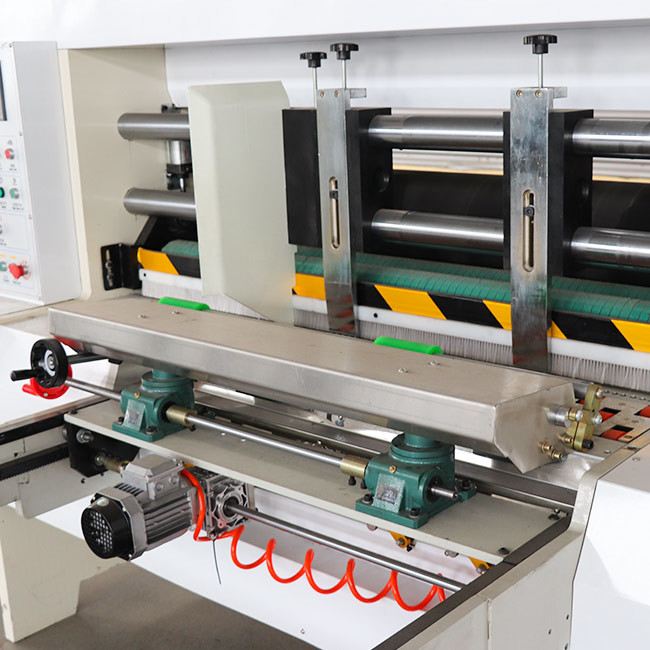

Lead edge feeding unit
Lead edge feed paper refers to the front of the board as the benchmark, the speed of roller feeding is consistent with the speed of the feed shaft, and die cutting positioning is accurate.
|
|
|
Die Cutting unit
1. It utilizes soft rubber template. Speed differences can be compensated synchronously and automatically. 2. One-off processes of cutting, perforating and creasing can be completed in this machine. 3. The main motor adopts electromagnetic speed adjustment and the die cutter phase is adjusted by computer.
|
Main spare parts
| Bearings | Ha, Luo, Wa | All |
| AC Contactor | Chint | All |
| Keyless connection ring | Shanxi | All |
| Inverter | INVT | All |
| Pneumatic solenoid directional valve | AIRTAC | All |
Packaging&Shipping
