Carton Box Automatic Die Cutting Machine Feeder Feeding With Stripping

Product Details:
Place of Origin: China
Brand Name: RINO
Certification: CE
Model Number: HD-F1060
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiation
Packaging Details: Wrapped with film or in wooden case
Delivery Time: 40-60 Working Days After Deposit
Payment Terms: L/C, T/T
Supply Ability: 10 Set/Month
  • Detail Information
  • Product Description

Detail Information

Name: Automatic Feeder Feeding Die Cutting Machine With Stripping Max Feeding Cardboard Size: 1060×760mm
Min Feeding Cardboard Size: 400×370mm Max Die Cutting Speed: 7000 Sheets/h
Weight: 14.5T Total Power: 18KW
Vlotage: 220V/380V Max Die Cutting Size: 1060×760mm

Product Description

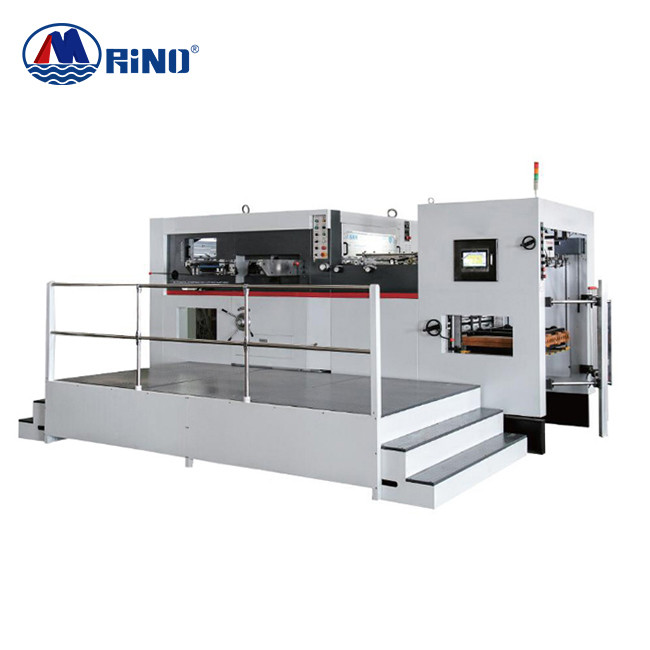

Carton Box Automatic Die Cutting Machine Feeder Feeding With Stripping





Carton Box Die Cutting Machine Introduction



The full-automatic die-cutting machine can process flat sheets of paper, cardboard and corrugated paper, and is suitable for die-cutting indentation and cold pressing of paper boxes, cartons, paper trademarks, etc. In particular, all kinds of high-end and exquisite printed materials (such as cigarette boxes, wine boxes, gift boxes, cosmetic boxes, etc.) can be die-cut and indented on this machine to obtain three-dimensional, exquisite and beautiful packaging products.

The main drive system of the machine is equipped with pneumatic clutches, and a torque limiter (safety clutch) is installed on the main sprocket shaft to avoid injury and damage to operators and equipment due to emergencies, so as to ensure personal safety and equipment safety.

The machine is equipped with many safety protection devices in the whole machine. Once a person touches or enters the area, the alarm device will automatically alarm and the equipment is in a shutdown state.



Parameter of Die Cutting Machine



Model HD-F1060
Max feeding cardboard size 1060×760mm
Min feeding cardboard size 400×370mm
Max die cutting size 1060×760mm
Max die cutting pressure 300T
Cardboard thickness Die-cutting and embossing flat corrugated paper, suitable for die-cutting, embossing and cold embossing of cartons, paper trademarks, PVC films, cardboard 0.1-2.5mm, corrugated paper ≤ 4mm
Max die cutting speed 7000 sheets/h
Weight 14.5T
Total power 18KW
Dimension 6800×3990×2300mm



Main Units



Carton Box Automatic Die Cutting Machine Feeder Feeding With Stripping 0

Feeder feeding unit

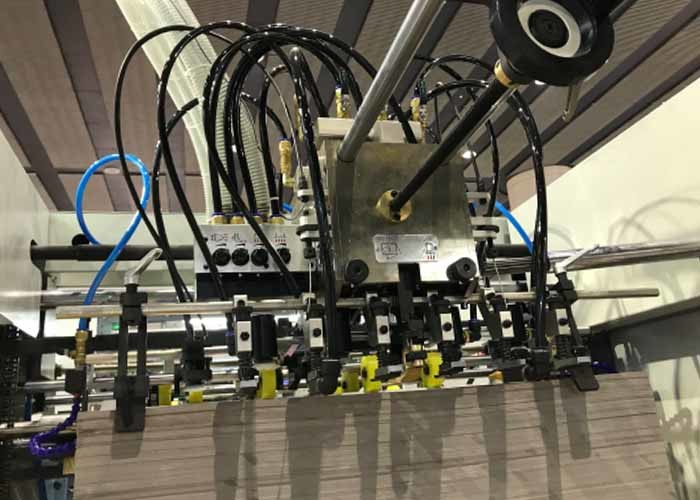

The paper feed head with four suction and four feeds with 8 suction nozzles has strong suction force and stable paper feeding. The suction nozzle can adjust the angle and suction air volume according to the deformation of the paper to realize the smooth conversion between thin paper and thick paper.



Carton Box Automatic Die Cutting Machine Feeder Feeding With Stripping 1

Die cutting unit

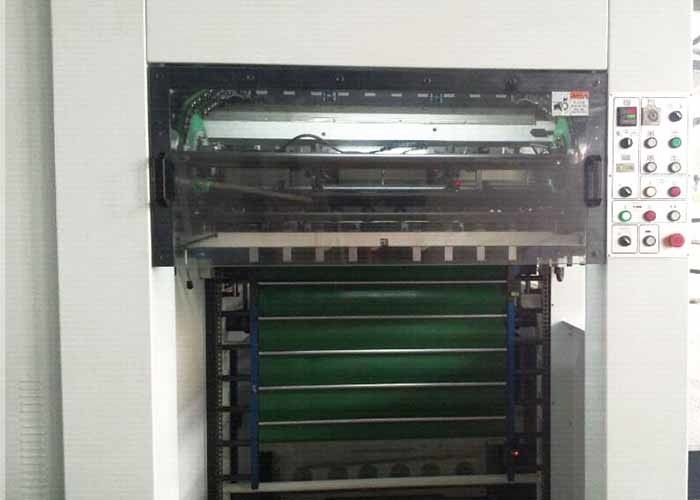

Turbine crank drives the elbow-type high-precision die-cutting upper workbench;

Fixed high-precision die-cutting lower workbench;

The main parts of the core unit (crankshaft, worm, worm gear, toggle shaft) are imported high-grade alloy steel;



Carton Box Automatic Die Cutting Machine Feeder Feeding With Stripping 2

Paper receving unit

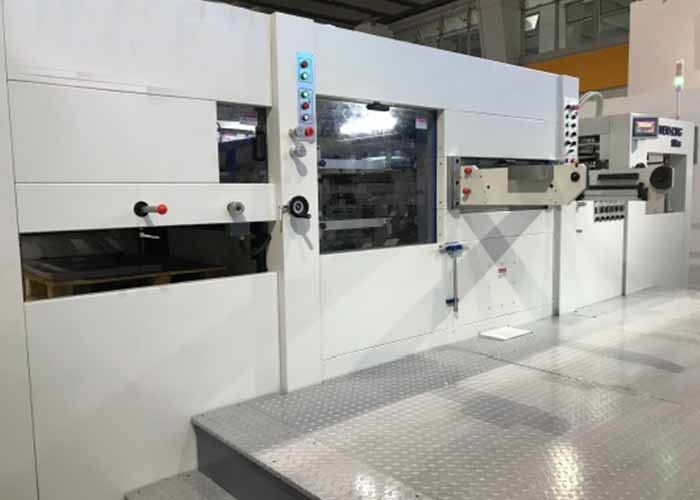

Fully automatic main and auxiliary delivery table, easy to operate, greatly improve production efficiency, and the secondary delivery table adopts the curtain type up and down switching, which is more convenient for operation and more suitable for small size multi-imposition products;







Main Electrical device



Name Model Brand
Breaker 3P040 LG
Breaker 3PD16 LG
Breaker 2PD16 LG
Breaker 1PD6 LG
Air switch NSC60E3060N Schneider
PLC programmable controller CP1W-M60DT-D Omron
Expand CP1W-40EDT Omron
Expand CP1W-20EDT Omron
Communication card CP1W-CIF11 Omron
AC contactor LC1D32 Schneider
AC contactor LC1D12 Schneider
AC contactor LC1D09 Schneider
AC contactor LC1D50 Schneider
Switching power supply DR-120-24 MIWE
Transformer 380V-220V 670V TENGEN
Swim suppressor LAD4RCU Schneider
Interlock connector LAD9R1V Schneider
