Product Details:
|
|
| Place of Origin: | Shandong,China |
|---|---|
| Brand Name: | RINO |
| Certification: | CE |
| Model Number: | HD-L1650 |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 1 Set |
| Price: | Negotiation |
| Packaging Details: | Wrapped with film or in wooden case |
| Delivery Time: | 40-60 Working Days After Deposit |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 10 Set/Month |
|
Detail Information |
|||
| Name: | Carton Box Making Automatic Flatbed Lead Edge Feeding Die Cutting Machine | Maximum Paper Size: | 1650mm*1210mm |
|---|---|---|---|
| Minimum Paper Size: | 650mm*500mm | Die Cutting Precision: | ±0.4mm |
| Maximum Speed: | 4000S/H | Total Power: | 37.2KW |
| Weight: | 27T | Minimum Front Scrap Size: | ≥8mm |
Product Description

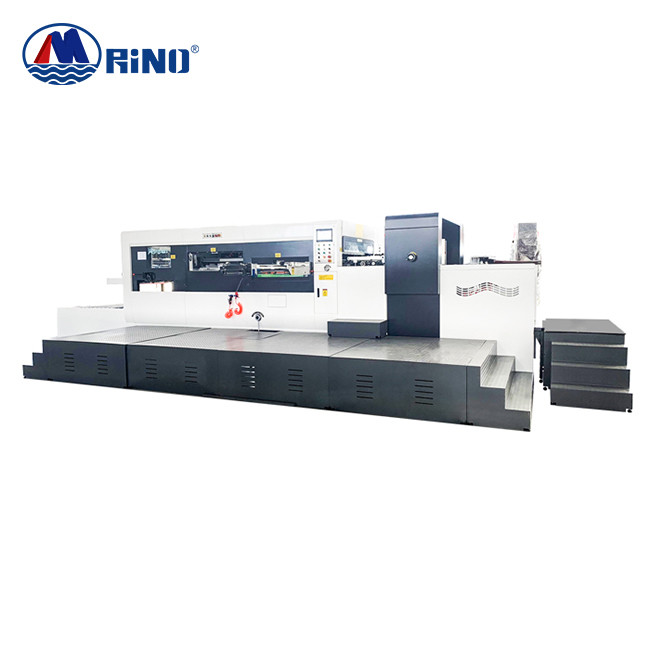

Pizza Box Automatic Carton Box Die Cutting Machine With Lead Edge Feeding
Carton Box Die Cutting Machine Introduction
1. Equipped with high-precision gearbox, fast speed, long life, safe and reliable
2. The leading edge paper feeding adopts a high-precision suction box to realize smooth paper feeding under high-speed conditions.
3. Using a newly designed tooth row system and a reinforced chain can effectively improve the stability of paper operation, reduce maintenance, and extend the service life of the machine.
4. Pneumatic locking system for the die-cutting plate frame, easy to operate, the die-cutting plate frame adopts an integrated structure, which is accurate and durable.
5. Die-cutting pressure is even, less patching, operation aspect, visual design.
6. The automatic paper delivery device is equipped with a downward and flat blowing system, which can deliver paper perfectly under high-speed operation of the machine.
Carton Box Die Cutting Machine Parameter
| Maximum paper size | 1650mm*1210mm |
| Minimum paper size | 650mm*500mm |
| Die cutting precision | ±0.4mm |
| Maximum die cutting pressure | 300T |
| Pressure adjustment range | ±1mm |
| Minimum front scrap size | ≥8mm |
| Maximum speed | 4000S/H |
| Total power | 37.2KW |
| Weight | ≈27T |
Main Units
|
|

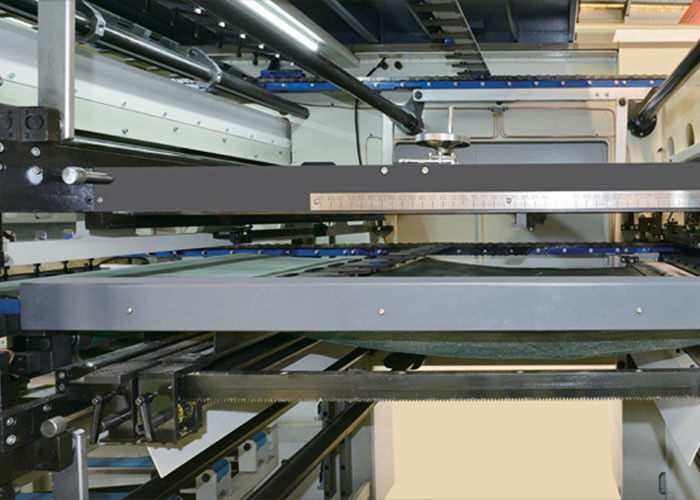

Paper feeding unit
The high-precision leading edge paper feeding device can meet the paper feeding requirements of different thicknesses of paper. The frequency conversion control air volume adjustment, the suction area can be adjusted according to the size of the paper, and it is equipped with a high-power fan.
|
|
|

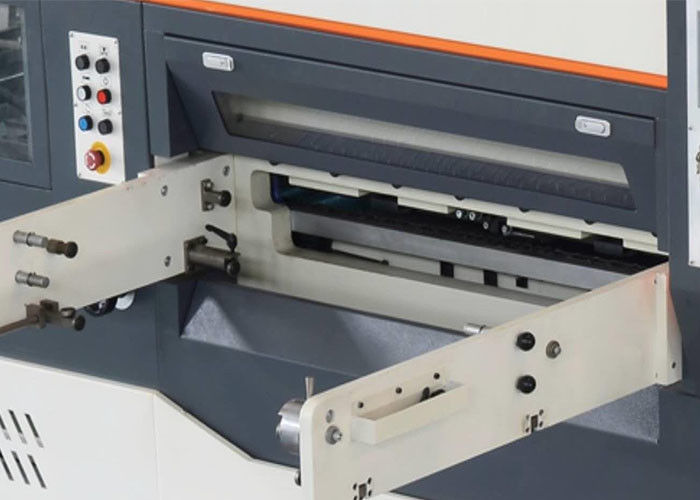

Die cutting unit
It is equipped with an overload protection mechanism to realize the separation of the active and the driven and the unique energy efficiency of the die-cutting plate frame to prevent the die-cutting plate from sagging and detaching when accidental overload occurs.
|
|
|
Electrical unit
The whole machine adopts PLC centralized control system Adopt Japan Yaskawa inverter.
|
Finished Products
Main Electrical Appliances
| No | Name | Brand | Remark |
| 1 | Frequency converter | Yaskawa | Japan |
| 2 | PLC | Siemens | Germany |
| 3 | Electrical switches | Omron/Schneider | Japan/France |
| 4 | Touch screen | Siemens | Germany |
| 5 | Wallboard | Chuanban | China |
| 6 | Upper and lower platform | Ductile iron | China |
| 7 | Tooth row | Aviation aluminum | China |
| 8 | Tooth row chain | TYC | Taiwan |
| 9 | Double-row chain | Renold | Britain |
| 10 | Cam divider (intermittent box) | Taiwan | Taiwan |
| 11 | Die-cut steel plate | 75Cr1 | China |
| 12 | Main bearings | NSK | Japan |
| 13 | Worm gear | Wear-resistant tin copper worm gear | China |
| 14 | Pneumatic clutch | OMPI s.r.l | Italy |
| 15 | Knife plate liner | 75Cr1 | China |
