Product Details:
|
|
Place of Origin: | China |
---|---|
Brand Name: | RINO |
Certification: | CE |
Model Number: | HP-LD2500 |
Payment & Shipping Terms:
|
|
Minimum Order Quantity: | 1 Set |
Price: | Negotiation |
Packaging Details: | Wrapped with film or in wooden case |
Delivery Time: | 40-60 Working Days After Deposit |
Payment Terms: | L/C, T/T |
Supply Ability: | 10 Set/Month |
Detail Information |
|||
Name: | Four Color Corrugated Carton Box Flexo Printer Machine With Slotter Die Cutter | Grade: | Automatic |
---|---|---|---|
Wallboard Thickness: | 60mm | Gear Thickness: | 60mm |
Die Cutting Accuracy: | ±1.5mm | Tinted Accuracy: | ±0.5mm |
Maximum Paper Size: | 2500 X 4200mm | Working Speed: | 150Pcs/Min |
High Light: | 150Pcs/Min Carton Box Flexo Printer Machine,Four Color Carton Box Flexo Printer,Four Color Flexo Printing Machine 150Pcs/Min |
Product Description

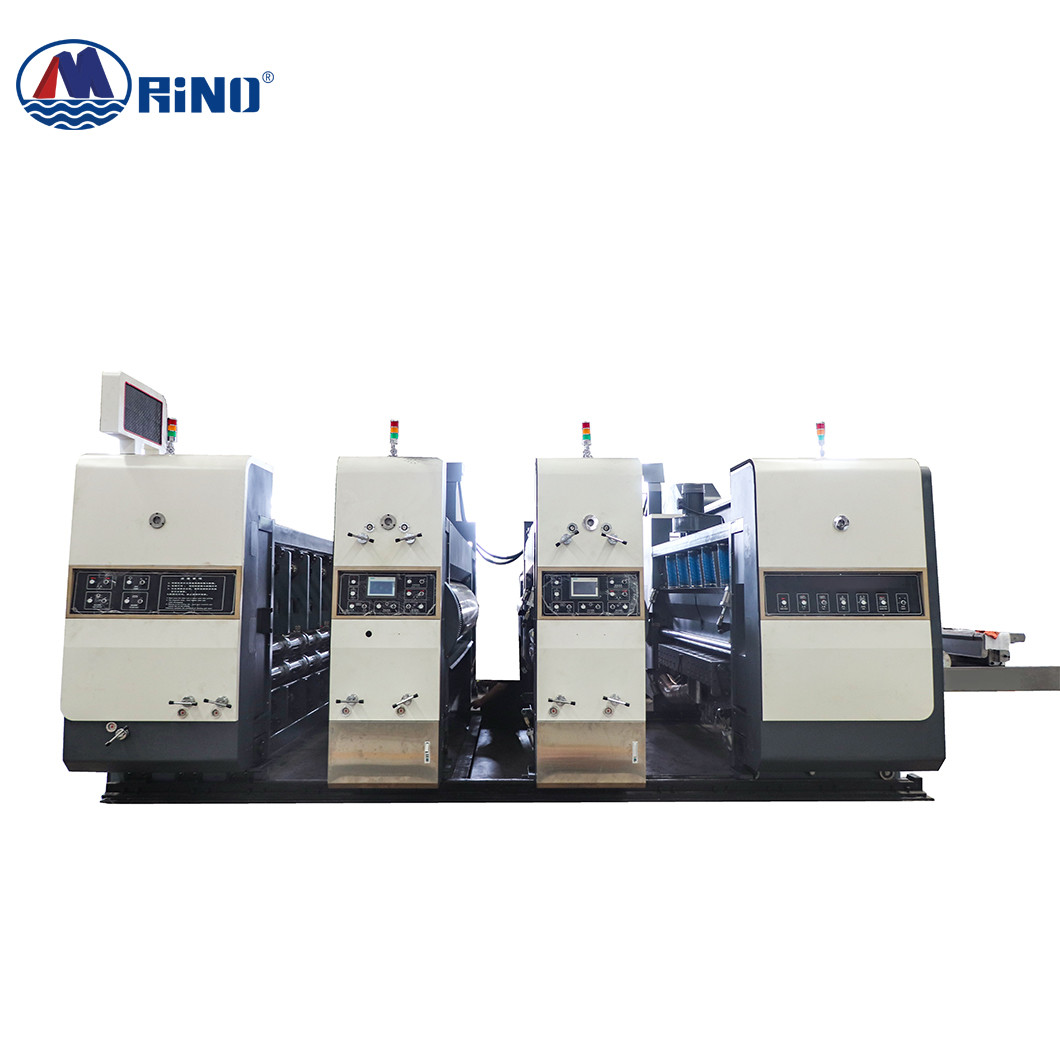

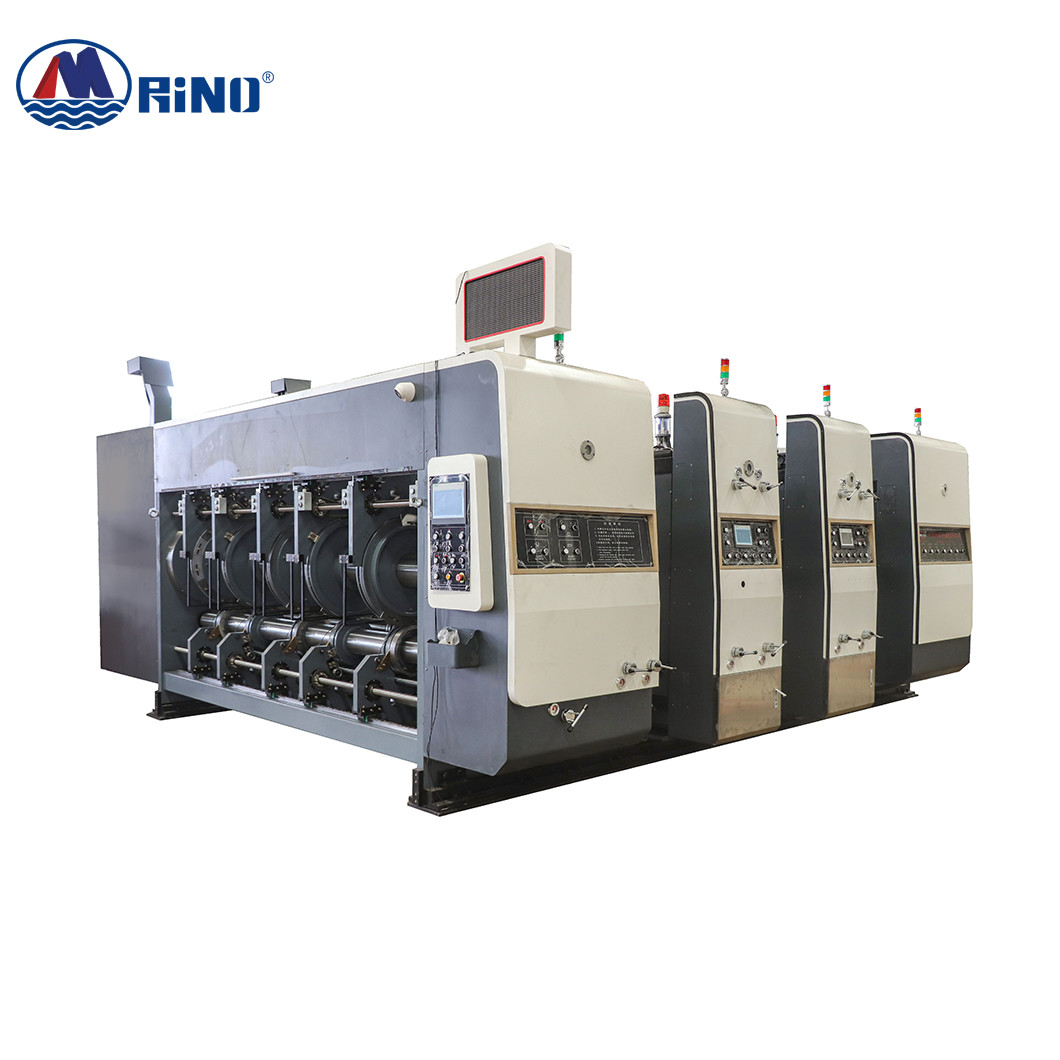

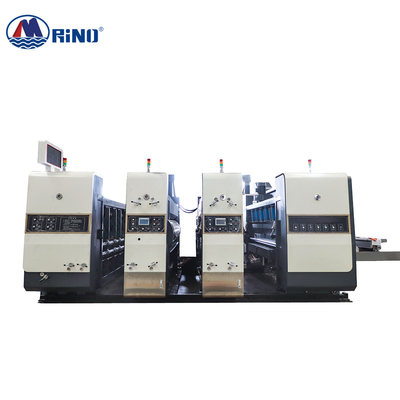

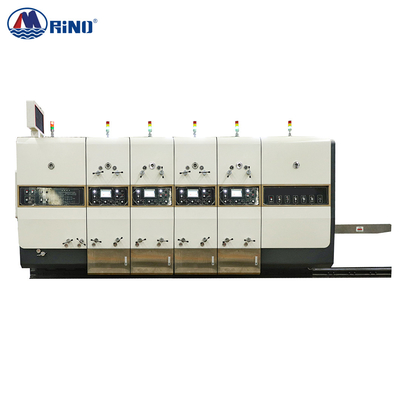

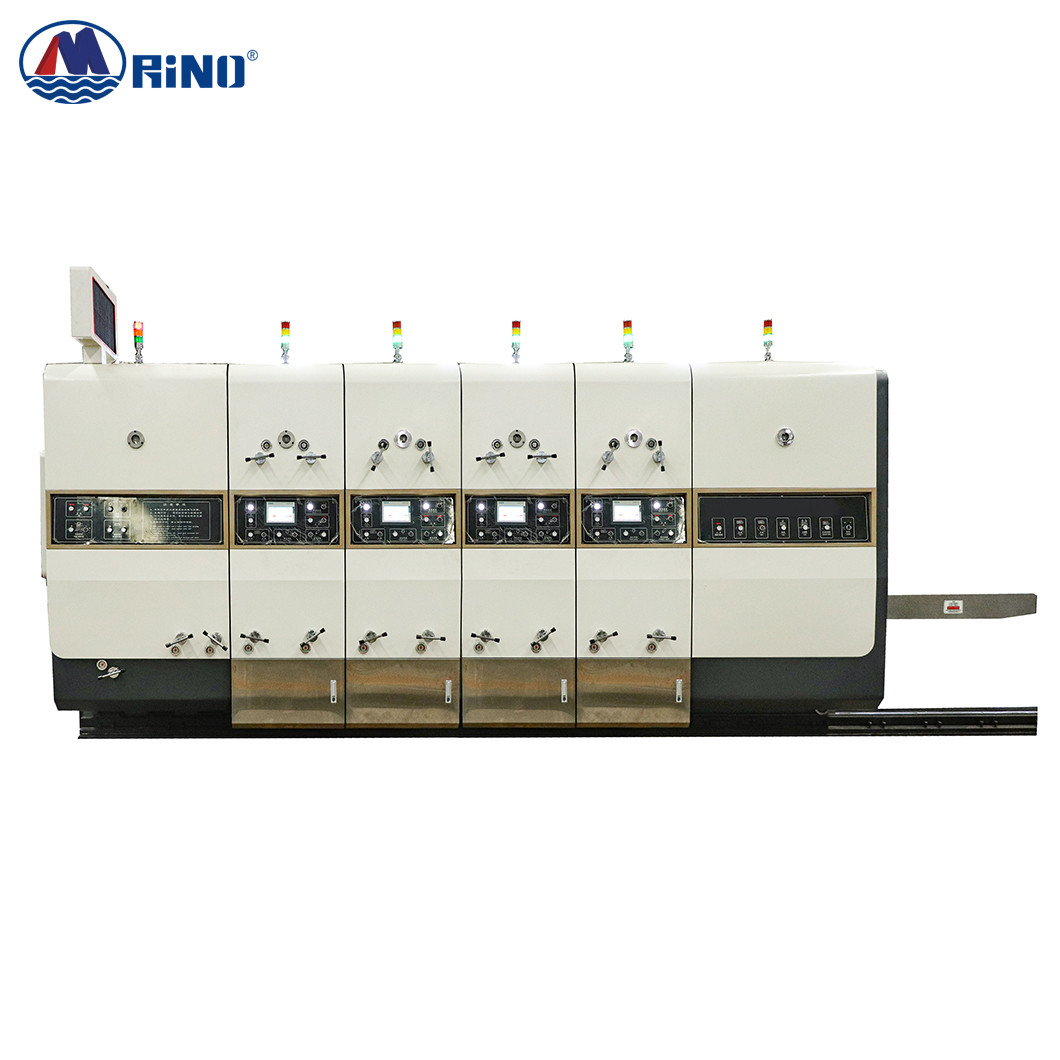

Four Color Corrugated Carton Box Flexo Printer Machine With Slotter Die Cutter
Box Flexo Printing Machine Introduction
1. It adopts vacuum adsorption, leading edge feeding, design and manufacture, and the whole operation is humanized design, which can be set, modified, executed, replaced, memorized and displayed accurately in a short time.
2. The material of the aluminum drive roller is made of high-quality steel, with balance correction, smooth operation, surface grinding, and hard chrome plating.
3. Full gear transmission, high-quality alloy steel, heat-treated and ground.
4. Automatic oil balance device to keep the oil balance of each unit.
5. With automatic zeroing, recording memory, printing plate cleaning memory, order dust removal and other functions, optional touch screen PLC control, easy to operate.
6. Anilox roller: Metal or ceramic anilox roller can be used, and the anilox roller line can be selected according to user requirements.
Parameter of Carton Flexo Printing Machine
Model | HP-LD2500 |
Width | 4500mm |
Maximum speed(pcs/min) | 150 |
Wallboard thickness(mm) | 60 |
Gear thickness(mm) | 60 |
Maximum paper size(mm) | 2500 X 4200 |
Maximum printing size(mm) | 2500 X4000 |
Standard printing plate thickness(mm) | 3.2---7.2 |
Cardboard thickness(mm) | 3---12 |
Precision(mm) | Tinted accuracy ±0.5, Slotting accuracy±1.5, Die cutting accuracy ±1.5 |
Power (kw) | 38 |
Total power(kw) | 45 |
Main units
![]() |

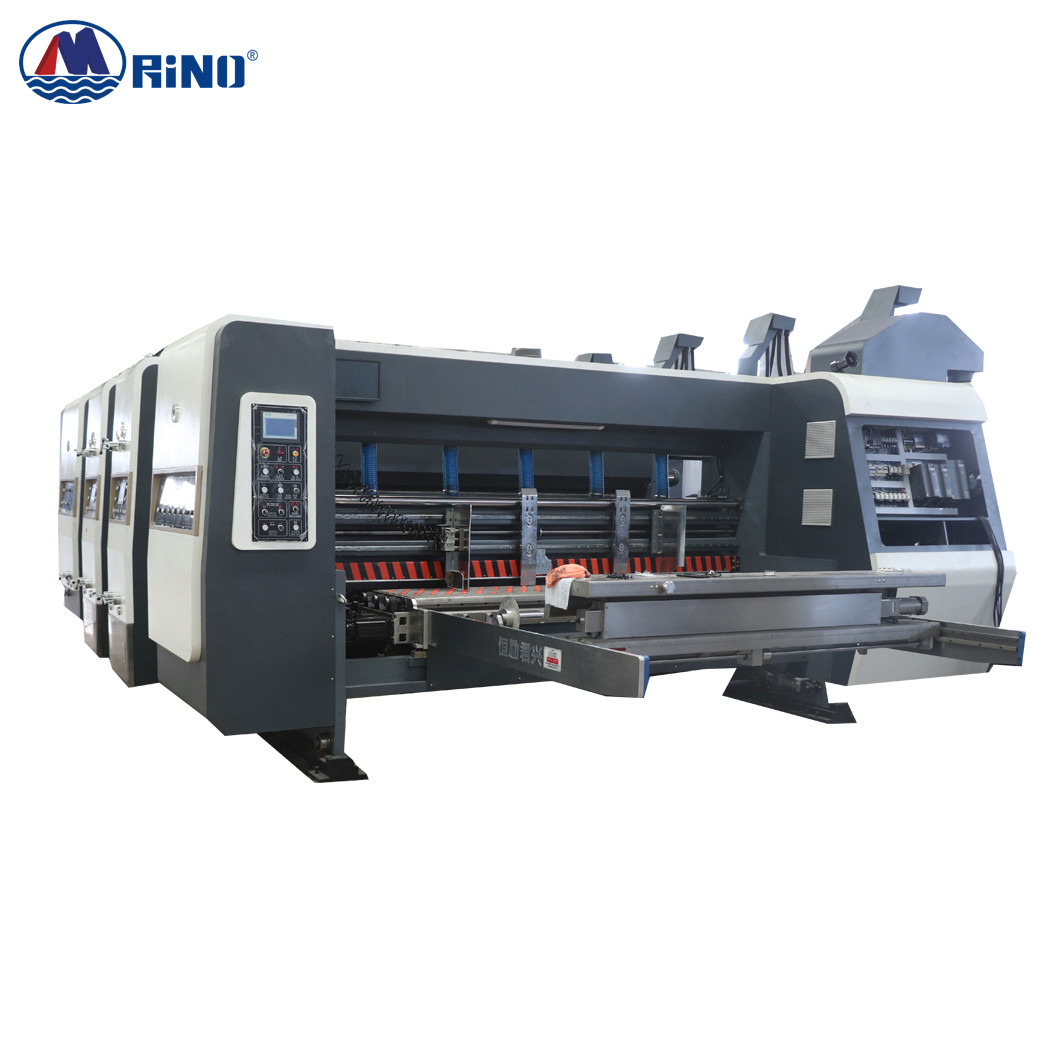

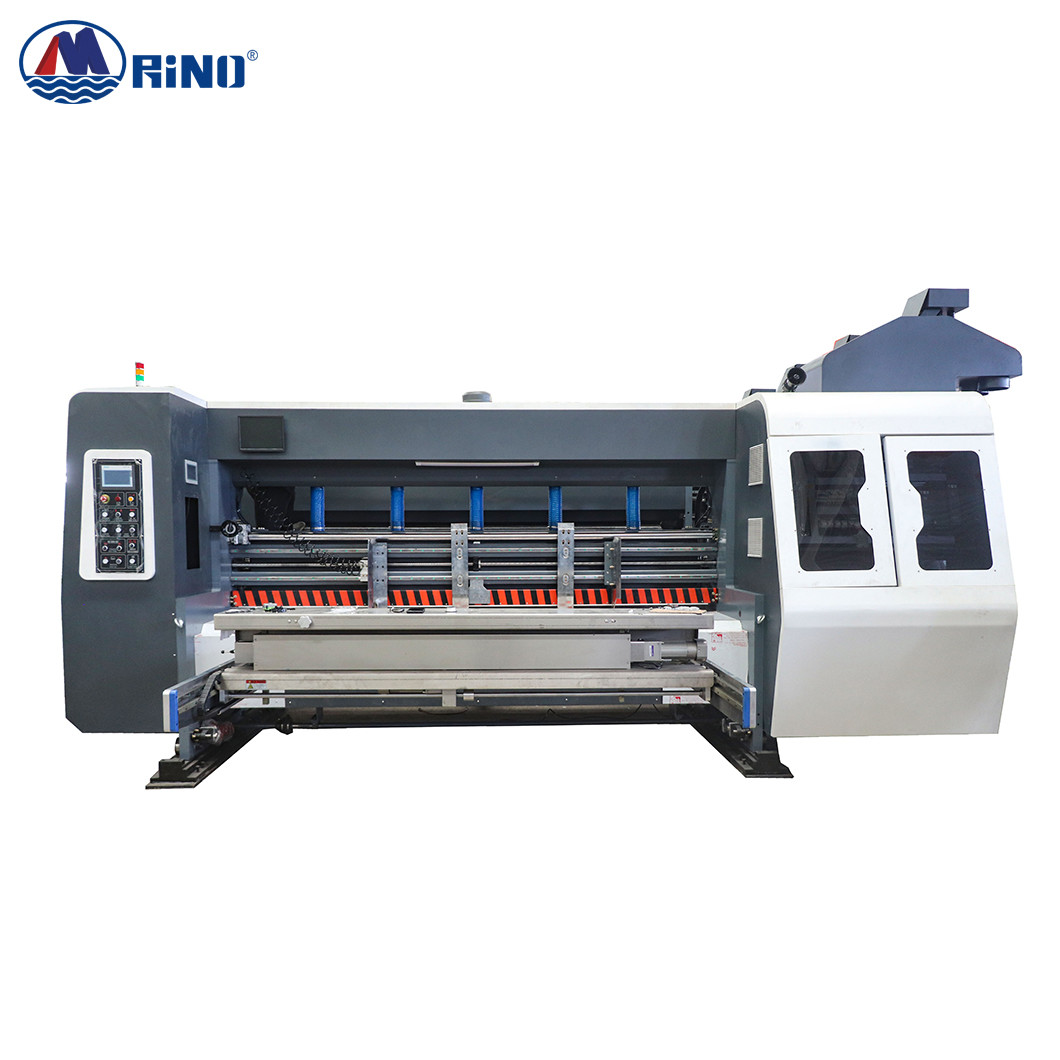

Paper feeding unit
1. The Hengli Servo pressure free leading edge is used to feed the paper, and the suction volume is increased, and the paper feeding is more stable and accurate.
|
![]() |
Printing unit
1. Leak-proof and ink-repellent system device
|
![]() |

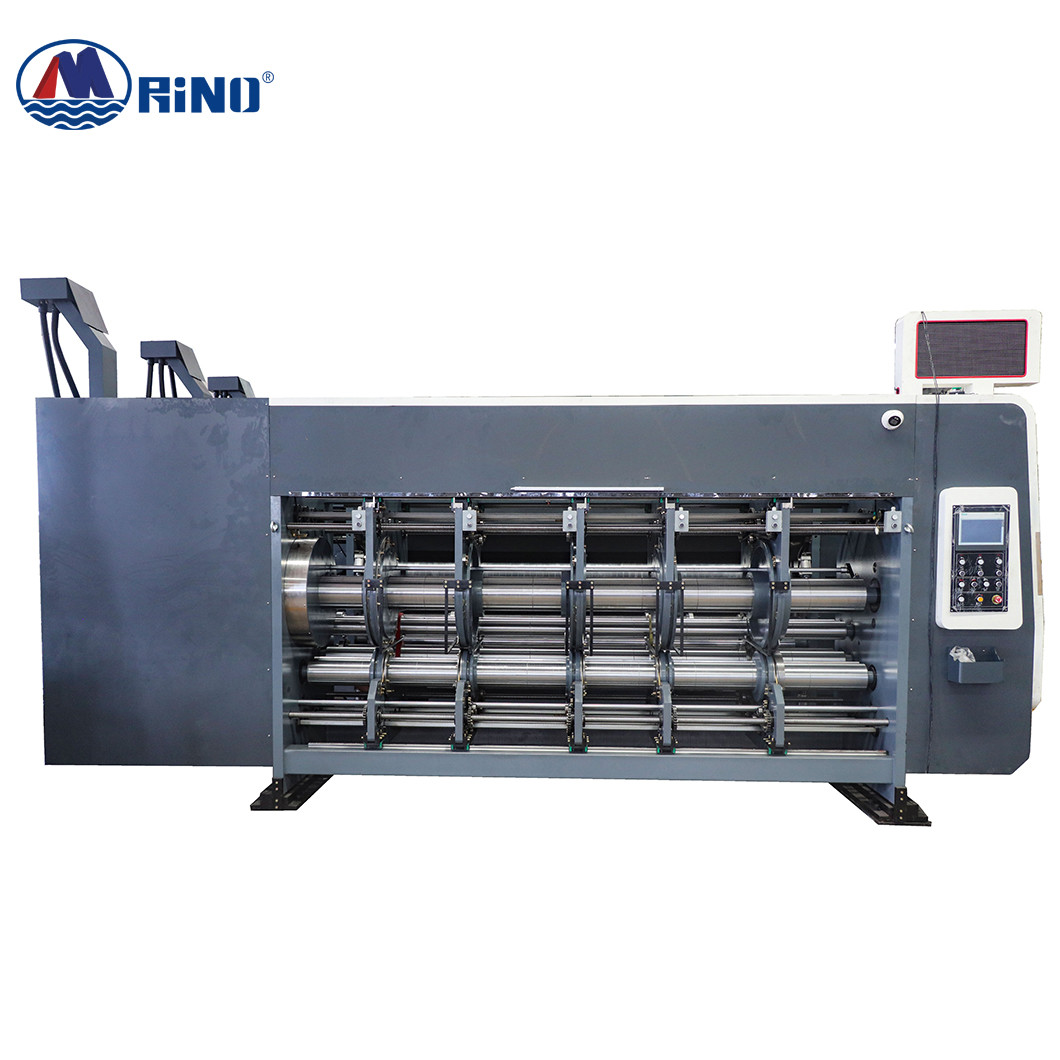

Die Cutting Unit
The die-cutting phase adopts electric digital 360° adjustment, and the equipment can be adjusted during operation and stop.
|
Packaging&shipping
FAQ
1. Q:What is the machine warranty?
A: one year.
2. Q:What is the production time while placing order?
A: About 20 days
3. Q:What is the delivery time?
A: 40-60 days after get the payment.
4. Q:Can your company handle shipping for customers?
A: Yes, just give us destination sea port or container yard
5. Q:Does the packing strong?
A: Yes, all packages are double-checking before delivery
6. Q:Do you have machines in stock?
A: for standard model, we have a large quantity in stock. For special model, we need 20-30 days to produce it for you.
