Product Details:
|
|
| Place of Origin: | China |
|---|---|
| Brand Name: | RINO |
| Certification: | CE |
| Model Number: | HP-CM1400 |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 1 Set |
| Price: | Negotiation |
| Packaging Details: | Wrapped with film or in wooden case |
| Delivery Time: | 40-60 Working Days After Deposit |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 10 Set/Month |
|
Detail Information |
|||
| Name: | Chain Feeding 3 Colors Printing Machine For Corrugated Carton Box With Slotter Die Cutter | Max. Paper Sizes: | 2600*1400 Mm |
|---|---|---|---|
| Max Printing Size: | 2400*1400mm | Economic Speed: | 60(pcs/min) |
| Maximum Speed: | 90(pcs/min) | Standard Flexo Printing Plate Thickness: | 6mm |
| Printing Roller Diameter: | 480mm | Usage: | Corrugated Carton Box Printing |
| High Light: | 3 Colors Flexo Corrugated Box Printing Machine,11kw Flexo Corrugated Box Printing Machine |
||
Product Description

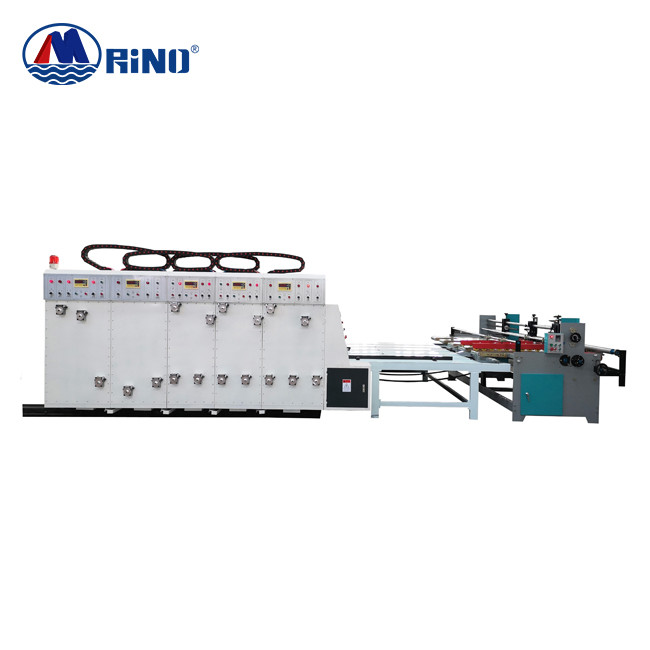

Chain Feeding 3 Colors Printing Machine For Corrugated Carton Box With Slotter Die Cutter
Characteristic Carton Box Flexo Printing Machine
1. This machine can complete multi-color printing, slitting, trimming, slotting, corner cutting, punching, cutting, etc. The host is controlled by a frequency converter.
2. The machine adopts a modular design, and each unit can be combined according to the need to adopt pneumatic locking and electric separation.
3. The printing unit uses a diaphragm pump to supply ink, a pneumatic lifting plate, and automatic ink distribution.
4. The slot-type synchronous transfer case is high, and the synchronous sliding mechanism.
5. The microcomputer adjusts the printing and slotting phase uniformly, and the adjustment is accurate and convenient.
6. The gear is made of high-quality steel, cross-slider drive, no gap adjustment, to ensure the accuracy of printing and color registration.
7. Automatic spray lubrication, oil level balance system.
Parameter
| Model | Max. paper sizes |
Max printing size |
Working speed | Max speed | Standard Printing Plate Thickness | Color-printed precision(four color) | Power of main motor |
Roller diameter |
| HP-CM1400 | 2600*1400 mm | 2400*1400mm | 60(pcs/min) | 90(pcs/min) | 6mm | ±0.75mm | 11 kw | 480mm |
Main Units
|
|

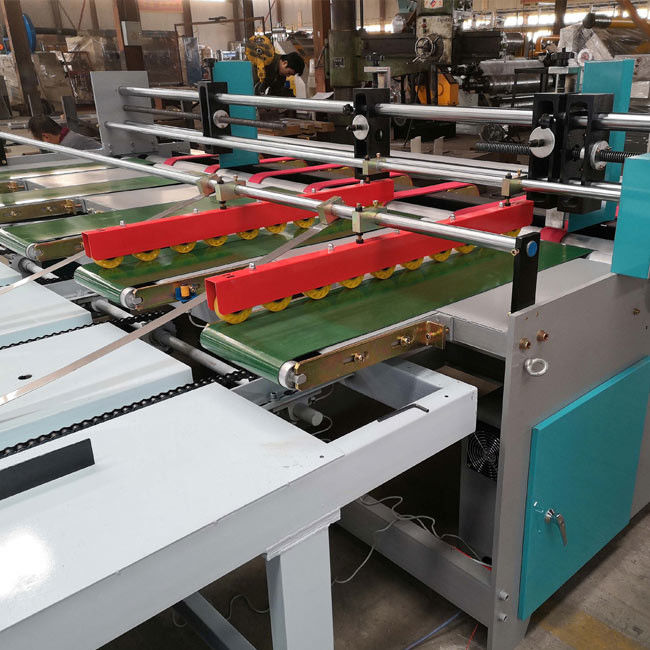

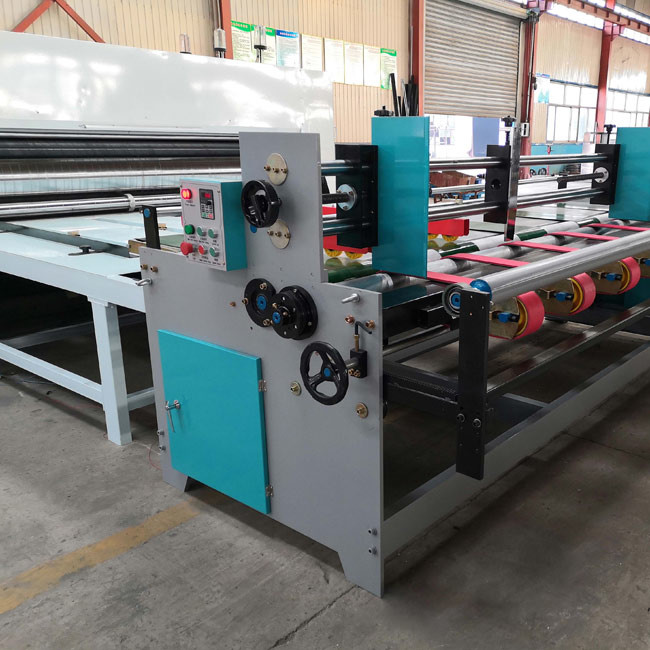

Paper feeding unit
Chain drive feeding type, separation by electricity and pneumatic locking up, pneumatic raising plate, and auto-adjusting ink.
|
|
|
Slotting unit
1.The tool shaft is seamless steel tube, and it is plated hard chromium after two times of grinding, and the movement is smooth 2.Slot width 7mm. 3.The alloy steel is grinded by heat treatment, and the hardness and toughness of the slotting cutter are guaranteed 4.The alloy steel is grinded and sharpened by heat treatment. The knife edge is sharp and the precision is high 5.Box height manual synchronous adjustment. 6.Planetary gear mechanism.
|
