Product Details:
|
|
Place of Origin: | China |
---|---|
Brand Name: | RINO |
Certification: | CE |
Model Number: | HP-LM900 |
Payment & Shipping Terms:
|
|
Minimum Order Quantity: | 1 Set |
Price: | Negotiation |
Packaging Details: | Wrapped with film or in wooden case |
Delivery Time: | 40-60 Working Days After Deposit |
Payment Terms: | L/C, T/T |
Supply Ability: | 10 Set/Month |
Detail Information |
|||
Name: | Flexo Printer Slotter Machine Automatic Die Cutter Folder Gluer Production Line For Carton Box | Maximum Speed: | 300pcs/min |
---|---|---|---|
Maximum Feeding Size: | 900mm×2000mm | Minimum Feeding Size: | 320mm×650mm |
Maximum Printing Size: | 850mm×1900mm | Paper Feeding Precision: | ±1.0mm |
Printing Precision: | ±0.5mm | Voltage: | 220V/380V |
High Light: | RINO Carton Box Flexo Printing Machine,Die Cutter Carton Folder Gluer Machine,300pcs/Min Carton Folder Gluer Machine |
Product Description

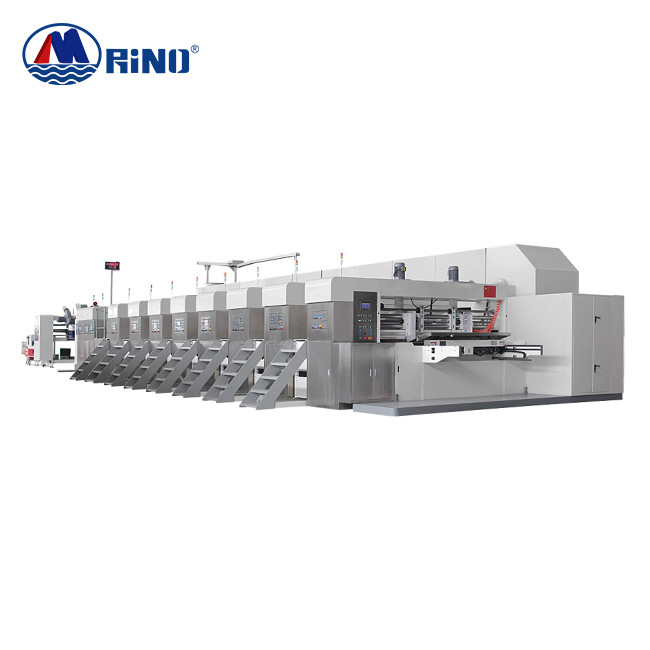

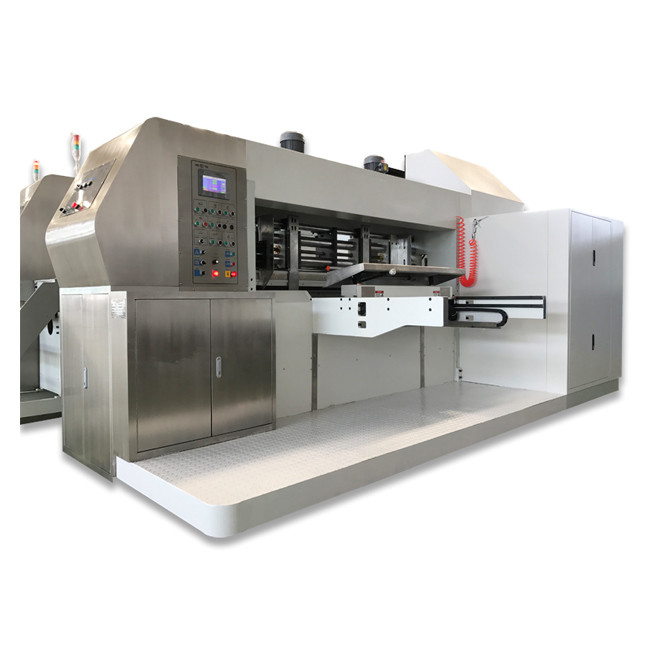

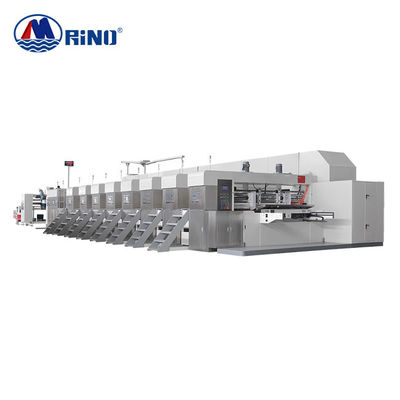

Flexo Printer Slotter Machine Automatic Die Cutter Folder Gluer Production Line For Carton Box
Machine Introduction of Flexo Printing Machine
• Adopt the printing plate change without machine stop of the world advanced technology to save the time of plate mounting and greatly improve the efficiency;
• The automatic production management system needs merely input the order of size on touch screen, then the feeder, printer, slotter, die cutter will automatically adjust all the clearances,axial,circumferential and other parameters accordingly to ensure the great accuracy and reliability without manual intervention at all and achieve full automatic adjustment and improve productionefficiency of company;
• 50-133LPI high and low line printing does not only guarantee high precision and high definition of high line printing, but also enable the ordinary printing on kraft linerboard and white board to realize of a multi-purpose printings with one machine for saving costs;
• The max mechanical speed can be 300sheets/min;
Parameter Flexo Printing Machine
Maximum speed | 300pcs/min |
Maximum feeding size |
900mm×2000mm |
Skip feeding | 1100mm×2000mm |
Minimum feeding size | 320mm×650mm |
Maximum printing size | 850mm×1900mm |
Paper feeding precision | ±1.0mm |
Printing precision | ±0.5mm |
Die cutting precision | ±1.0mm |
Slotting precision | ±1.5mm |
Main units
![]() |
Leading edge paper feeding unit 1. Wheel type leading edge feeder with vacuum absorption of fast feeding speed, high efficiency and stable system performance ensures smooth conveyance even the warp blanks at max 300sheets/min. 2. With high precise sheet conveyance, the suitable sheet thickness is 1.5—12mm; 3. Automatic side squaring unit is equipped for blanks neat; |
![]() |
Printing unit The printer has the function of plate replacement without machine stop of the world advanced technology. When machine is running, printing plate mounting or change can be carried out in printer without machine stop to greatly improve the efficiency;
|
![]() |
Slotting unit The clearance between paper pulling cylinders can be set on touch screen in electrical and digital modes; the creasing wheels are wrapped with PU covering to protect corrugated blanks; |
