Name: 6 Color Carton Box Flexo Printing Machine High Speed Slotter Die Cutter
Brand: RINO
SKU: HP-LM1400
Rating: 4.7 (170 reviews)

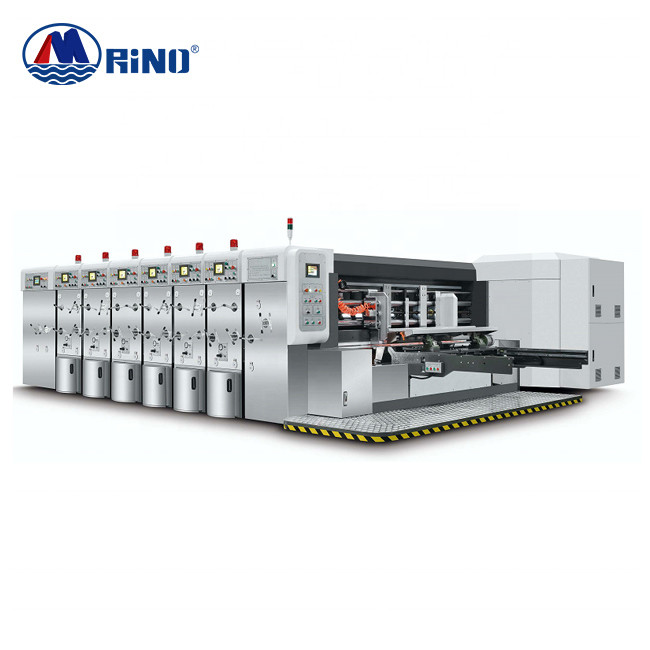

6 Color Carton Box Flexo Printing Machine High Speed Slotter Die Cutter

Product Details:

Place of Origin:

China

Brand Name:

RINO

Certification:

Model Number:

HP-LM1400

Payment & Shipping Terms:

Minimum Order Quantity:

1 Set

Price:

Negotiation

Packaging Details:

Wrapped with film or in wooden case

Delivery Time:

40-60 Working Days After Deposit

Payment Terms:

L/C, T/T

Supply Ability:

10 Set/Month

Detail Information
Product Description

Detail Information
Name:	6 Color High Speed Flexo Printing Slotter Die Cutter Machine For Corrugated Box Making	Grade:	Automatic Type
Weight:	50Ton	Voltage:	220V/380V
Slotting Precision:	±1.5mm	Tinted Precision:	±0.5mm
Total Power:	60KW	Max. Speed:	200Pcs/Min
High Light:	6 Color Carton Box Flexo Printing Machine , Slotter Carton Box Flexo Printing Machine , flexo printer slotter die cutter

Product Description

6 Color High Speed Flexo Printing Slotter Die Cutter Machine For Corrugated Box Making

Carton Box Flexo Printing Machine Introduction

1. Electrical adjustment of grooving phass with data displayed.
2. 360 degree adjustment of grooving phases with data displayed.
3. Intergrated adjustment of carbon box grooving clearance and pressing trace clearance.
4. The mid blade is move able, which makes processing of over-sized boxes easy.
5. The axis handles possessionas as a result of grinding chromate treatment.
6. Central filling of lubricant on 45# forged gears makes low noise and stable running.
7. Non-bond joining ensures long-term accurately.

Parameter of Carton Flexo Printing Machine

Width	mm	3000
Maximum Paper feeding size	mm	1400×2800
Effective printing size	mm	1400×2600
Minimum Paper feeding size	mm	350×650
Thickness of printing plate	mm	7.2
Design speed	sheets/mi n	200
Economic speed	sheets/mi n	150-180
Main motor	KW	20
Total power	KW	50-60
Weight	T	50
Tinted precision	mm	±0.5
Slotting precision	mm	±1.5

Main units

Paper feeding unit

• Front baffle is set electrically;
• PLC touch screen control includes the functions of auto counting, speed, yield, skip feeding and alarms etc.
• Upper suction fan removes dust particles on blank to make it cleaner.

Printing unit

• Printing phase adopts dual speed electrical setting;

• Printing phase settings is done with original Korean CNC meter to set from the current value to target value in one step and CNC control values are also displayed;
• Electric axial settings and digital indication are employed at 360 degrees phase for ±10mm axial setting range;
