Product Details:
|
|
| Place of Origin: | China |
|---|---|
| Brand Name: | RINO |
| Certification: | CE |
| Model Number: | HP-CM1200 |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 1 Set |
| Price: | Negotiation |
| Packaging Details: | Wrapped with film or in wooden case |
| Delivery Time: | 40-60 Working Days After Deposit |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 10 Set/Month |
|
Detail Information |
|||
| Name: | Automatic Feeder Chain Feeding Flexo Printing Machine For Carton Box With Slotter | Max. Paper Sizes: | 2600*1200 Mm |
|---|---|---|---|
| Max Printing Size: | 2400*1200mm | Economic Machine Speed: | 60(pcs/min) |
| Maximum Machine Speed: | 90(pcs/min) | Standard Flexo Printing Plate Thickness: | 7mm |
| Printing Roller Diameter: | 408mm | Usage: | Corrugated Carton Box Printing Slotting |
| High Light: | Corrugated Carton Box Flexo Printing Machine,Slotter Carton Box Flexo Printing Machine |
||
Product Description

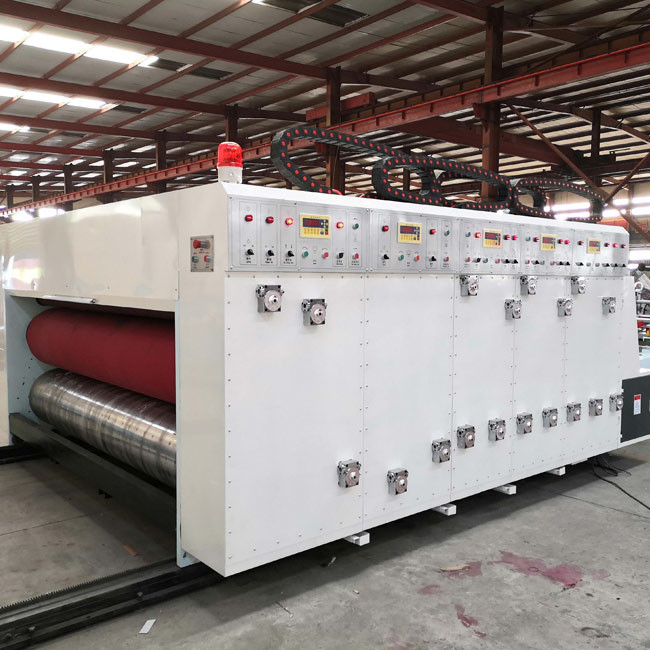

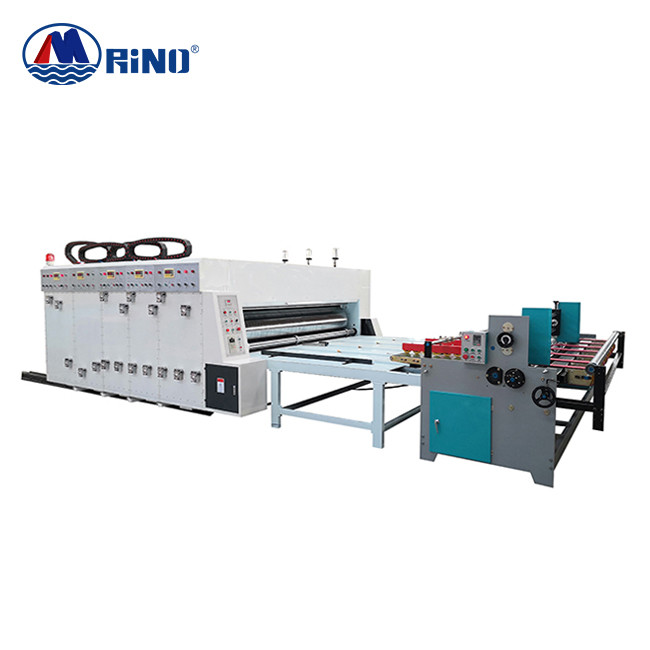

Automatic Feeder Chain Feeding Flexo Printing Machine For Carton Box With Slotter
Characteristic Carton Box Flexo Printing Machine
This product can complete three-color printing, cutting, creasing, trimming, slotting, etc. The automatic paper feeding mechanism is adopted, and the transmission gear adopts 20Cr high-quality alloy steel, the material is carburized and quenched, and is finished; the wallboard is made of cast iron, with a thickness of 50mm, without deformation. The hole processing is processed by a high-precision large-scale machining center, and the hole center distance accuracy can reach ±mm.0.01 The main transmission gear and the transmission shaft adopt a tension-free key connection method to expand the virtual position, eliminate the center wear, and maintain the long life of the printing machine. The machine has the characteristics of accurate color, exquisite printing pattern, convenient use and maintenance, and high degree of automation.
Parameter
| Model | Max. paper sizes |
Max printing size |
Working speed | Max speed | Standard Printing Plate Thickness | Color-printed precision(four color) | Power of main motor |
Roller diameter |
| HP-CM1200 | 2600*1200 mm | 2400*1200mm | 60(pcs/min) | 90(pcs/min) | 7mm | ±0.75mm | 11 kw | 408mm |
Main Units
|
|
Paper feeding unit
Chain feeding paper, side gauge ensure more accurate feeding.
|
|
|
Printing unit
1. High-precision dynamic balance anilox roller. Exquisite printing effect 2. Horizontal adjustment of printing plate cylinder, computer and electric numerical control, control range ±5mm.
|
Our Factory
Packaging&Shipping
