Product Details:
|
|
Place of Origin: | China |
---|---|
Brand Name: | RINO |
Certification: | CE |
Model Number: | HP-LM900 |
Payment & Shipping Terms:
|
|
Minimum Order Quantity: | 1 Set |
Price: | Negotiation |
Packaging Details: | Wrapped with film or in wooden case |
Delivery Time: | 40-60 Working Days After Deposit |
Payment Terms: | L/C, T/T |
Supply Ability: | 10 Set/Month |
Detail Information |
|||
Name: | 900mm Carton Box Flexo Printing Machine Die Cutting Corrugated Slotting Gluing Cardboard Box | Max. Speed: | 300pcs/min |
---|---|---|---|
Max. Feeding Size: | 900mm×2000mm | Min. Feeding Size: | 320mm×650mm |
Max. Printing Size: | 850mm×1900mm | Paper Feeding Precision: | ±1.0mm |
Printing Precision: | ±0.5mm | Voltage: | 220V/380V |
High Light: | 900mm Carton Flexo Printing Slotting Machine,300pcs/Min Flexo Printing Slotting Machine |
Product Description

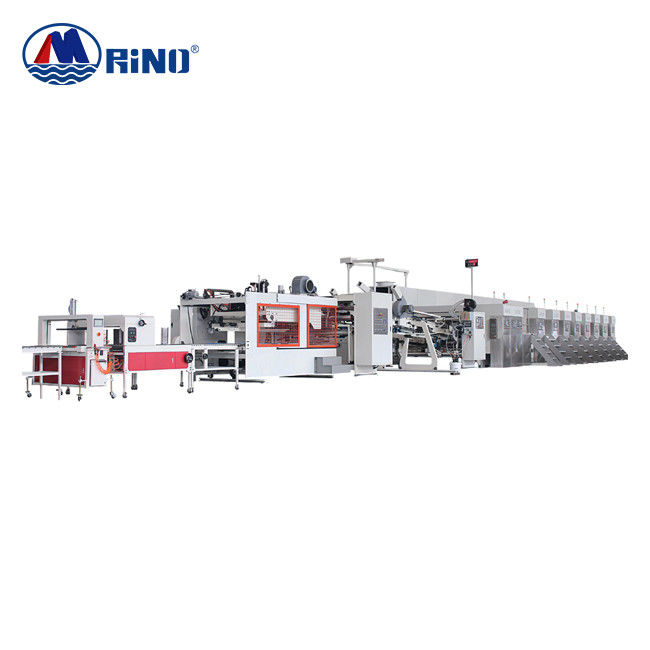

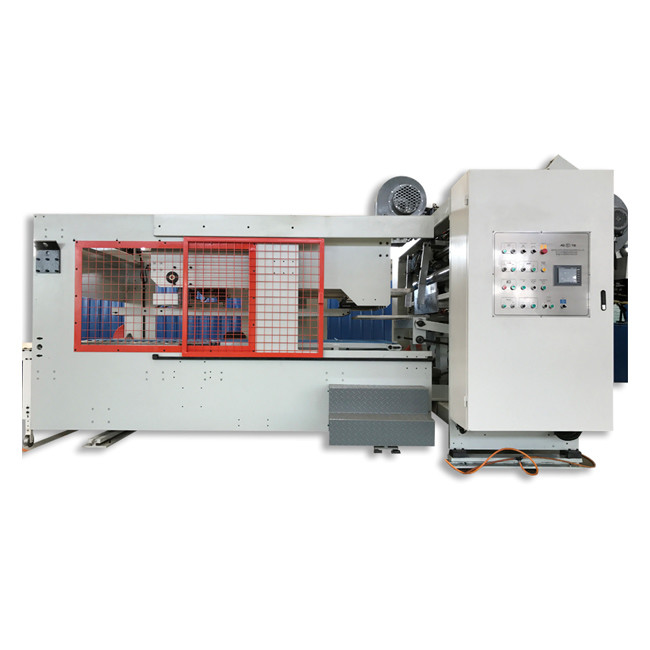

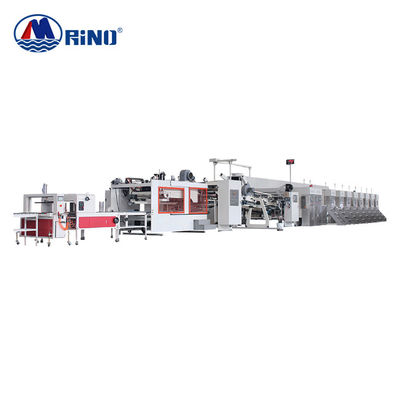

900mm Carton Box Flexo Printing Machine Die Cutting Corrugated Slotting Gluing Cardboard Box
Machine Introduction of Flexo Printing Machine
1. Equipped with a 10-inch high-definition color touch screen from SCHNEIDER France with the prominent features of clear display, easy operation, large amount of order memory and automatic order replacement;
2. Remote maintenance function can be optioned available for quick troubleshooting;
3. Electromagnetic printing plate roller bull wheel brake positioning device ensures the correct gear meshing when machine resets in order change without stop;
4. It has functions of vacuum suction conveyance, suction case elevation set electrically digitally at the max 10mm setting amount, encoder adjustment, photocell position limitation. It also uses the precise bearings and lubricating system from Japan, vacuum suction case positioned with straight rails, triple sectional vacuum structure to ensure over-printing accuracy requirements at ± 0.3mm when conveying the min 350mm paper length; the airflow of fan set in frequency conversion to ensure the printing requirements with different blanks; while the blank absorption suction power is satisfied for different blanks, energy saving is also gained.
Parameter Flexo Printing Machine
Maximum speed | 300pcs/min |
Maximum feeding size |
900mm×2000mm |
Skip feeding | 1100mm×2000mm |
Minimum feeding size | 320mm×650mm |
Maximum printing size | 850mm×1900mm |
Paper feeding precision | ±1.0mm |
Printing precision | ±0.5mm |
Die cutting precision | ±1.0mm |
Slotting precision | ±1.5mm |
Main units
![]() |
Leading edge paper feeding unit
|
![]() |
Printing unit 1. It has functions of vacuum suction conveyance, suction case elevation set electrically digitally at the max 10mm setting amount, encoder adjustment in photocell position limitation; 2. Both printing plate cylinder and anilox cylinder are fastened in machine side panels and the machine printers color can be changed according to the order entered while machine is running;
|
![]() |
Slotting unit
|
