Product Details:
|
|
| Place of Origin: | China |
|---|---|
| Brand Name: | RINO |
| Certification: | CE |
| Model Number: | HP-LD2500 |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 1 Set |
| Price: | Negotiation |
| Packaging Details: | Wrapped with film or in wooden case |
| Delivery Time: | 40-60 Working Days After Deposit |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 10 Set/Month |
|
Detail Information |
|||
| Name: | 2500*4200mm Big Household Appliances Carton Box 4 Color Flexo Printing Machine With Slotter | Grade: | Automatic |
|---|---|---|---|
| Wallboard Thickness: | 60mm | Gear Thickness: | 60mm |
| Die Cutting Accuracy: | ±1.5mm | Tinted Accuracy: | ±0.5mm |
| Maximum Paper Size: | 2500 X 4200mm | Working Speed: | 150Pcs/Min |
| High Light: | PLC 4 Color Flexo Printing Machine,150Pcs/Min 4 Color Flexo Printing Machine,150Pcs/Min Four Color Flexo Printing Machine |
||
Product Description

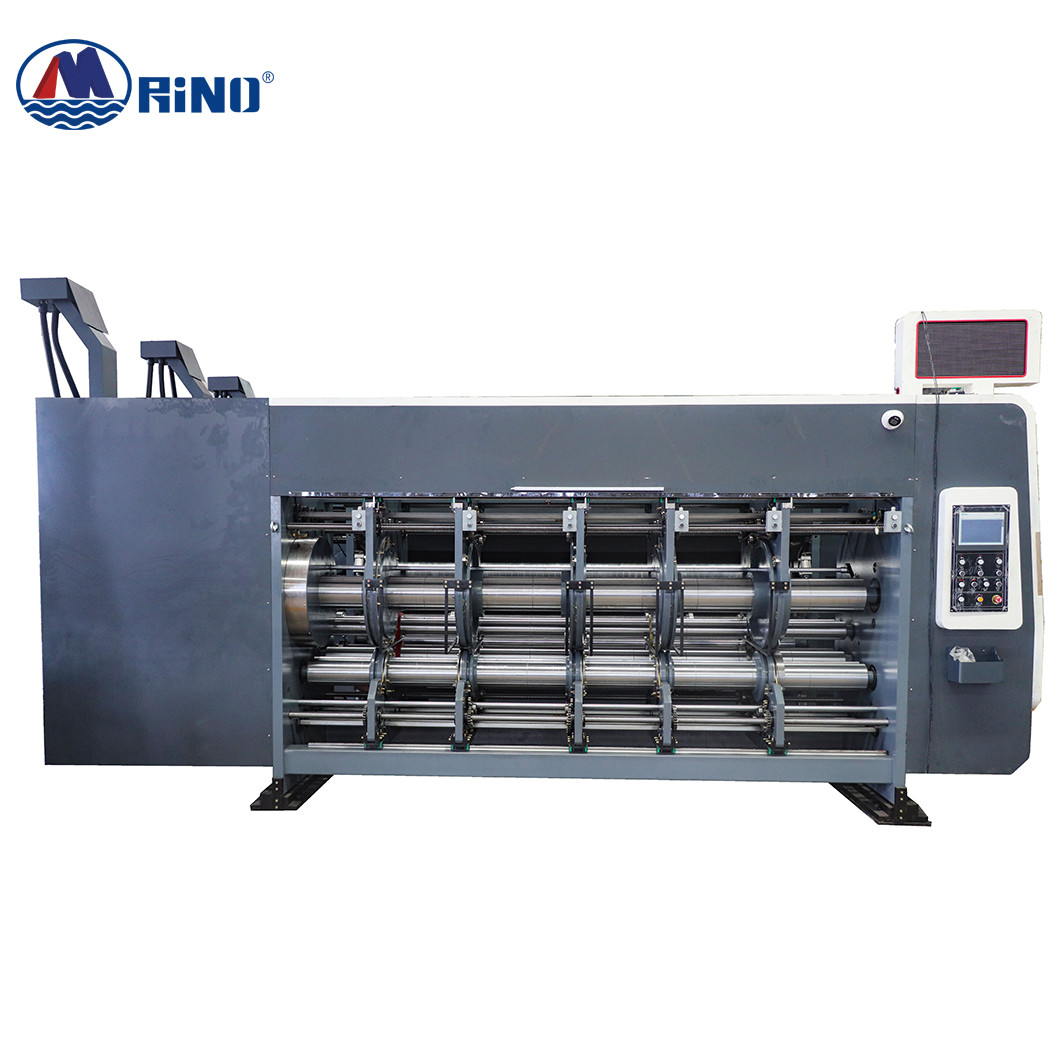

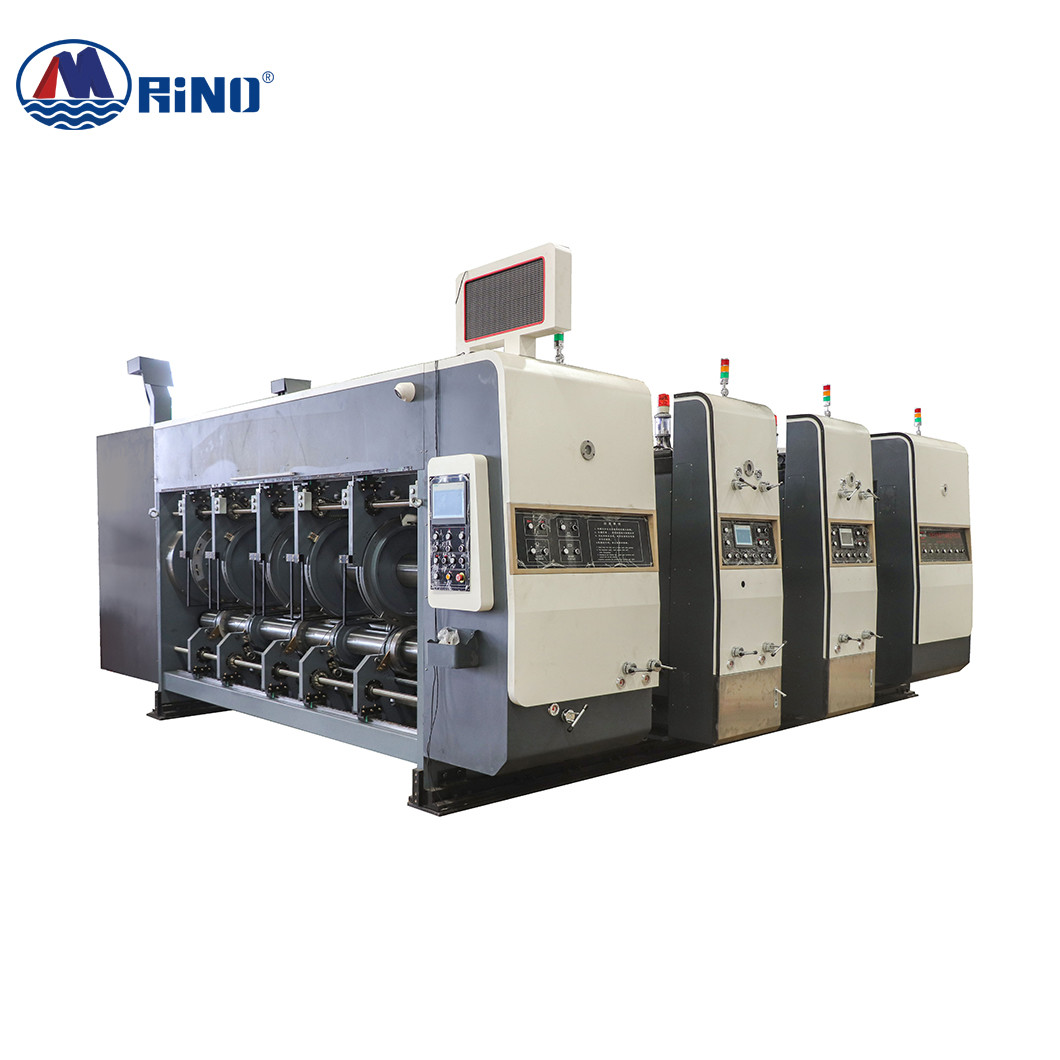

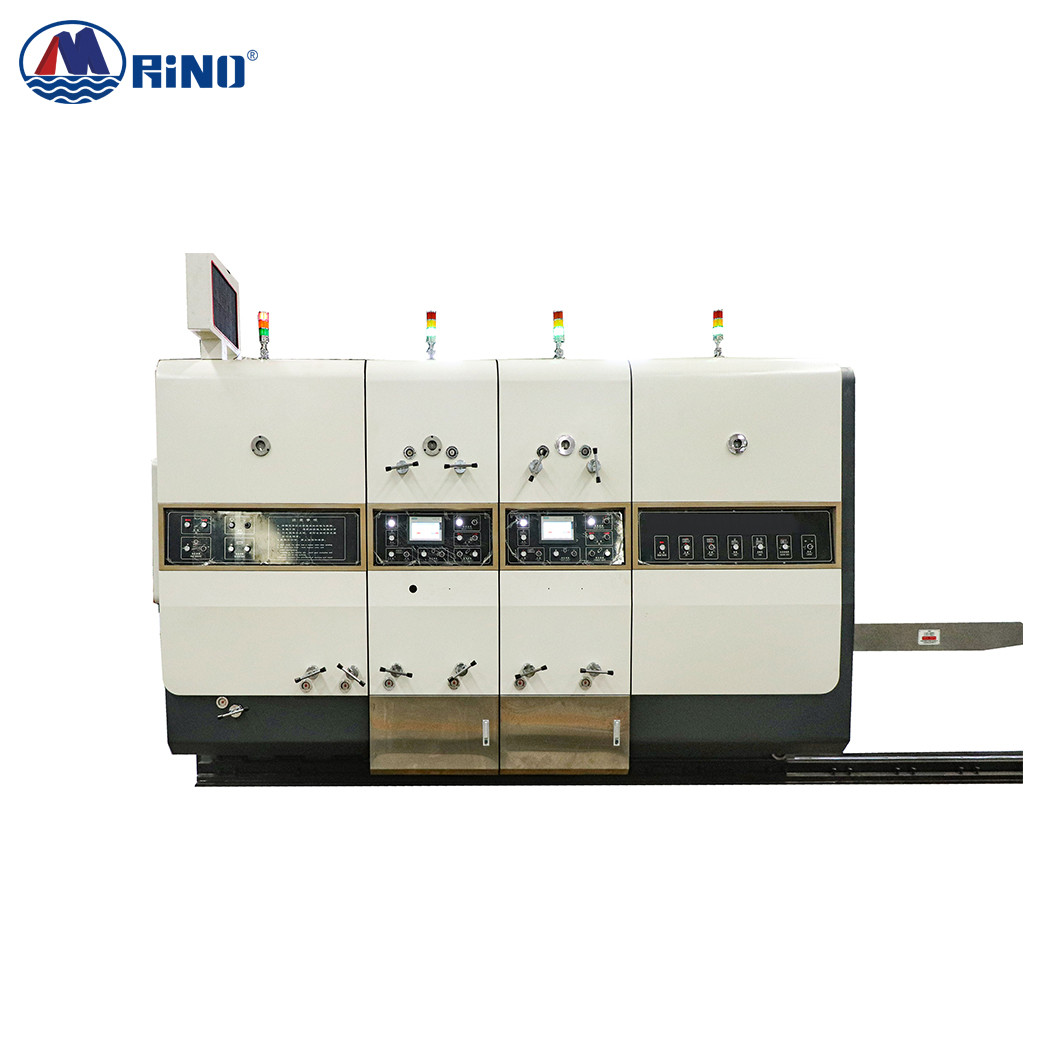

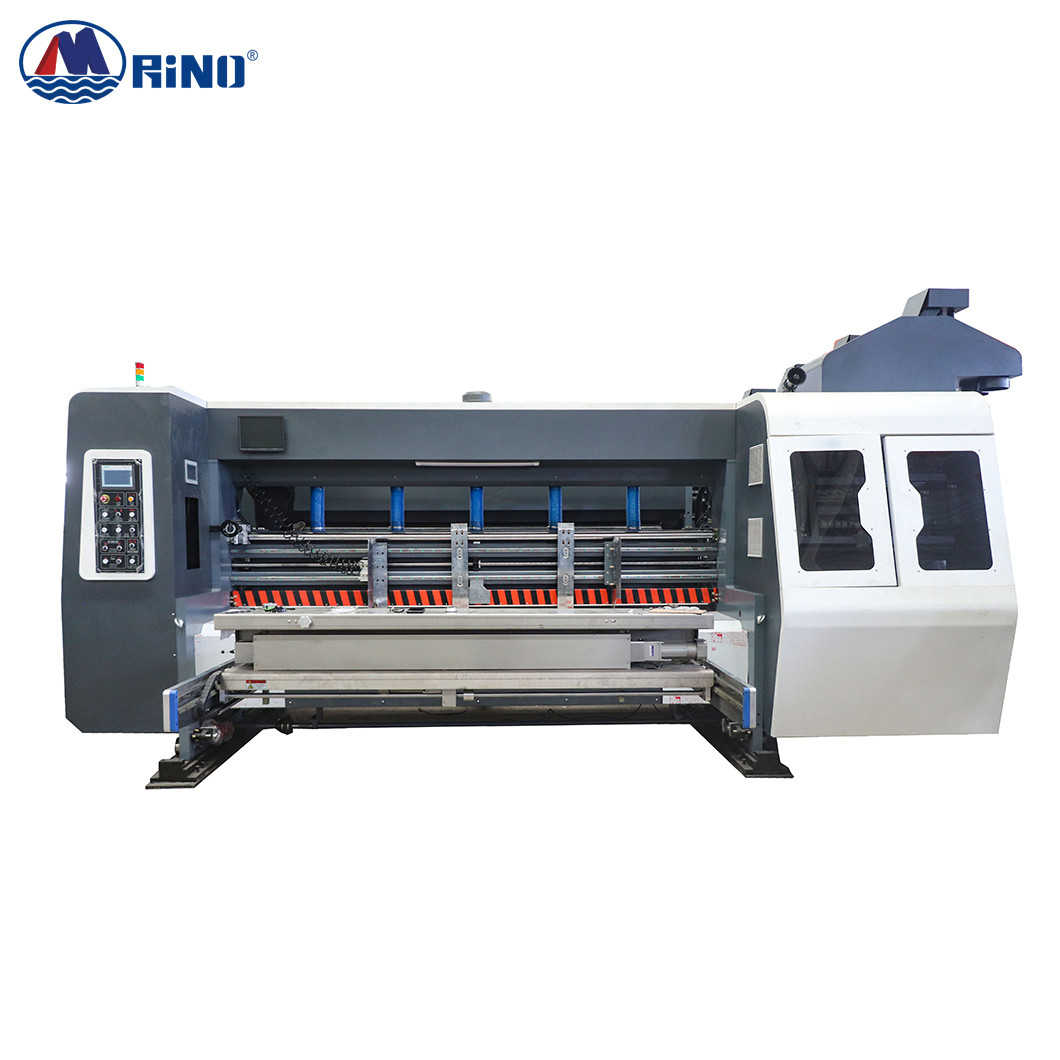

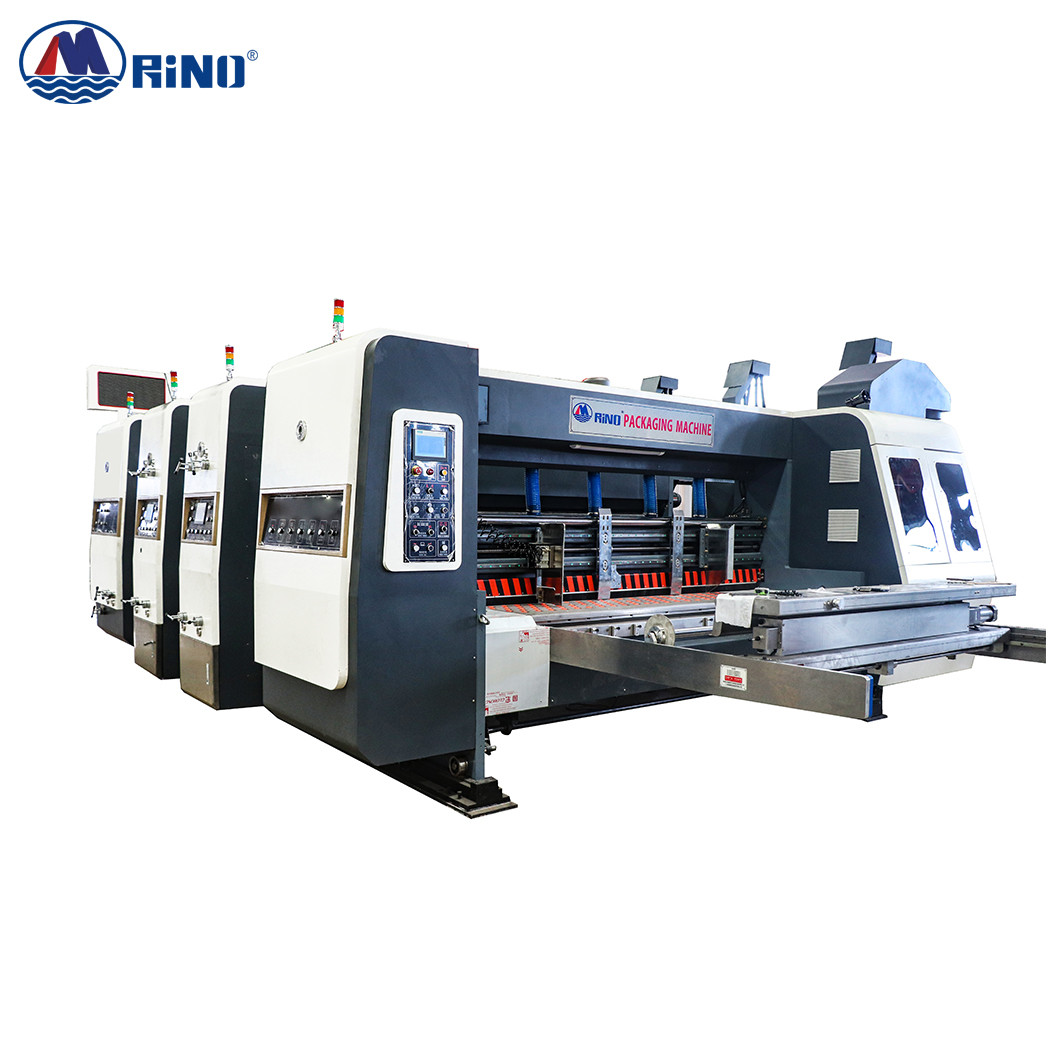

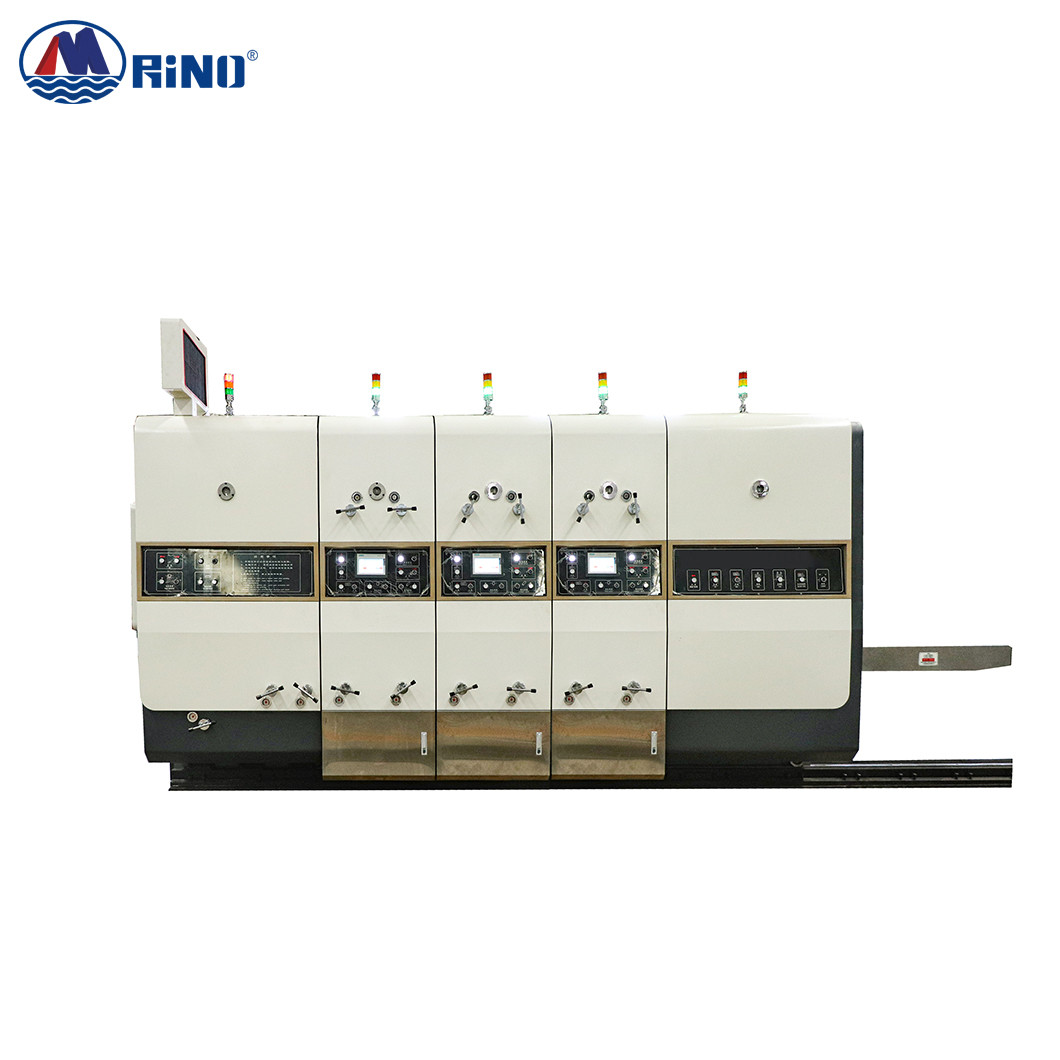

2500*4200mm Big Household Appliances Carton Box 4 Color Flexo Printing Machine With Slotter
Box Flexo Printing Machine Introduction
●PLC touch screen control, including automatic counting, speed, quantity display, interval, alarm light functions.
● Choose high-quality materials and accessories. All drive rollers are made of high-quality steel, statically and statically balanced, ground and hard chrome-plated and polished.
● The main drive gear adopts high-frequency quenching treatment of 40 chrome high-quality alloy steel, with high machining precision, high gear precision, wear resistance, stable and reliable transmission, and Rockwell hardness > 60 degrees.
Parameter of Carton Flexo Printing Machine
| Model | HP-LD2500 |
| Width | 4500mm |
| Maximum speed(pcs/min) | 150 |
| Wallboard thickness(mm) | 60 |
| Gear thickness(mm) | 60 |
| Maximum paper size(mm) | 2500 X 4200 |
| Maximum printing size(mm) | 2500 X4000 |
| Standard printing plate thickness(mm) | 3.2---7.2 |
| Cardboard thickness(mm) | 3---12 |
| Precision(mm) | Tinted accuracy ±0.5, Slotting accuracy±1.5, Die cutting accuracy ±1.5 |
| Power (kw) | 38 |
| Total power(kw) | 45 |
Main units
|
|
Paper feeding unit
1. The Hengli Servo pressure free leading edge is used to feed the paper, and the suction volume is increased, and the paper feeding is more stable and accurate.
|
|
|
Printing unit
1. Leak-proof and ink-repellent system device
|
|
|
Die Cutting Unit
The die-cutting phase adopts electric digital 360° adjustment, and the equipment can be adjusted during operation and stop.
|
Packaging&shipping
FAQ
1. Q:What is the machine warranty?
A: one year.
2. Q:What is the production time while placing order?
A: About 20 days
3. Q:What is the delivery time?
A: 40-60 days after get the payment.
4. Q:Can your company handle shipping for customers?
A: Yes, just give us destination sea port or container yard
5. Q:Does the packing strong?
A: Yes, all packages are double-checking before delivery
6. Q:Do you have machines in stock?
A: for standard model, we have a large quantity in stock. For special model, we need 20-30 days to produce it for you.
