Product Details:
|
|
| Place of Origin: | China |
|---|---|
| Brand Name: | RINO |
| Certification: | CE |
| Model Number: | HP-LD2500 |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 1 Set |
| Price: | Negotiation |
| Packaging Details: | Wrapped with film or in wooden case |
| Delivery Time: | 40-60 Working Days After Deposit |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 10 Set/Month |
|
Detail Information |
|||
| Name: | 4500mm Carton Box 3 Color Flexo Printing Machine With Die Cutting Stacking | Grade: | Automatic |
|---|---|---|---|
| Wallboard Thickness: | 60mm | Gear Thickness: | 60mm |
| Die Cutting Accuracy: | ±1.5mm | Tinted Accuracy: | ±0.5mm |
| Maximum Paper Size: | 2500 X 4200mm | Working Speed: | 150Pcs/Min |
| High Light: | 4500mm 3 Color Flexo Printing Machine,Carton Box 3 Color Flexo Printing Machine,3 Color Flexo Printing Machine 150Pcs/Min |
||
Product Description

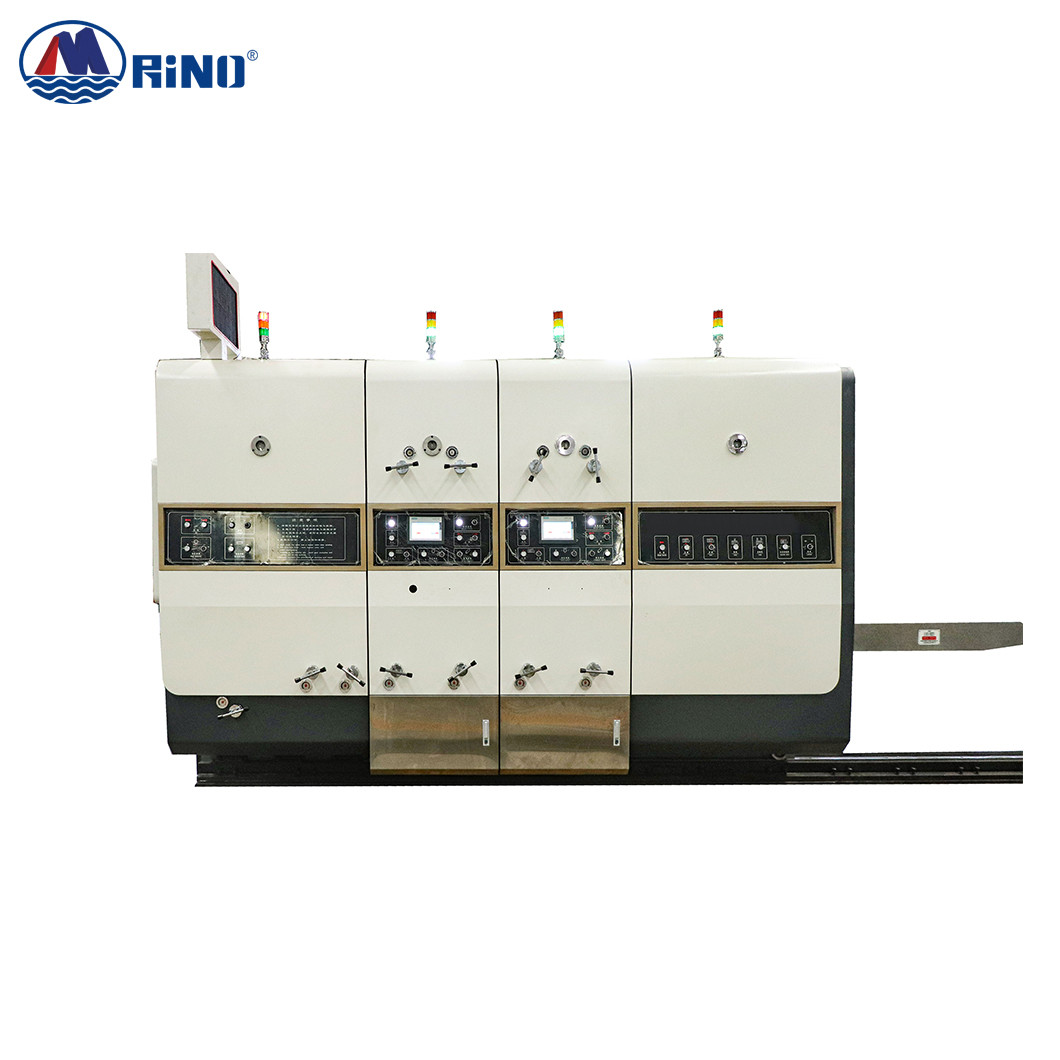

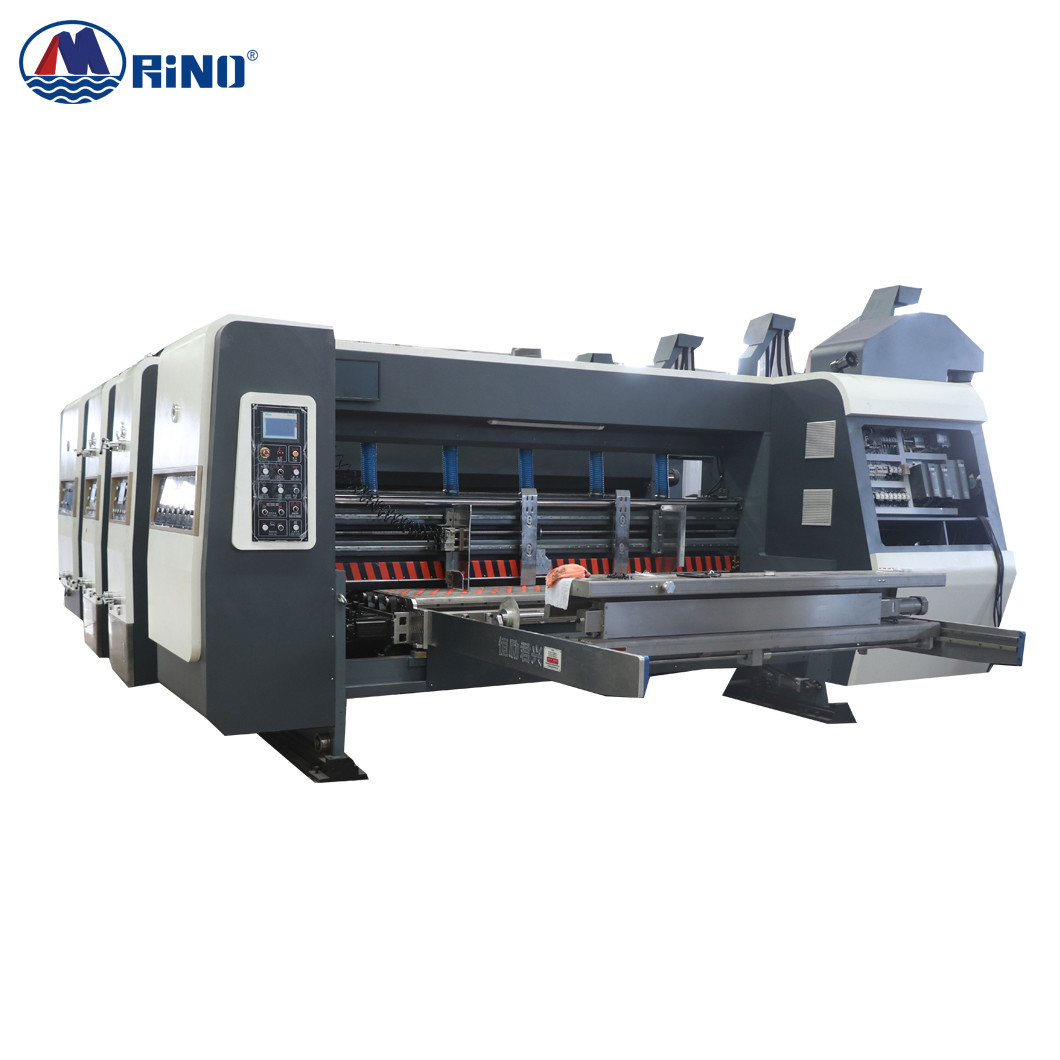

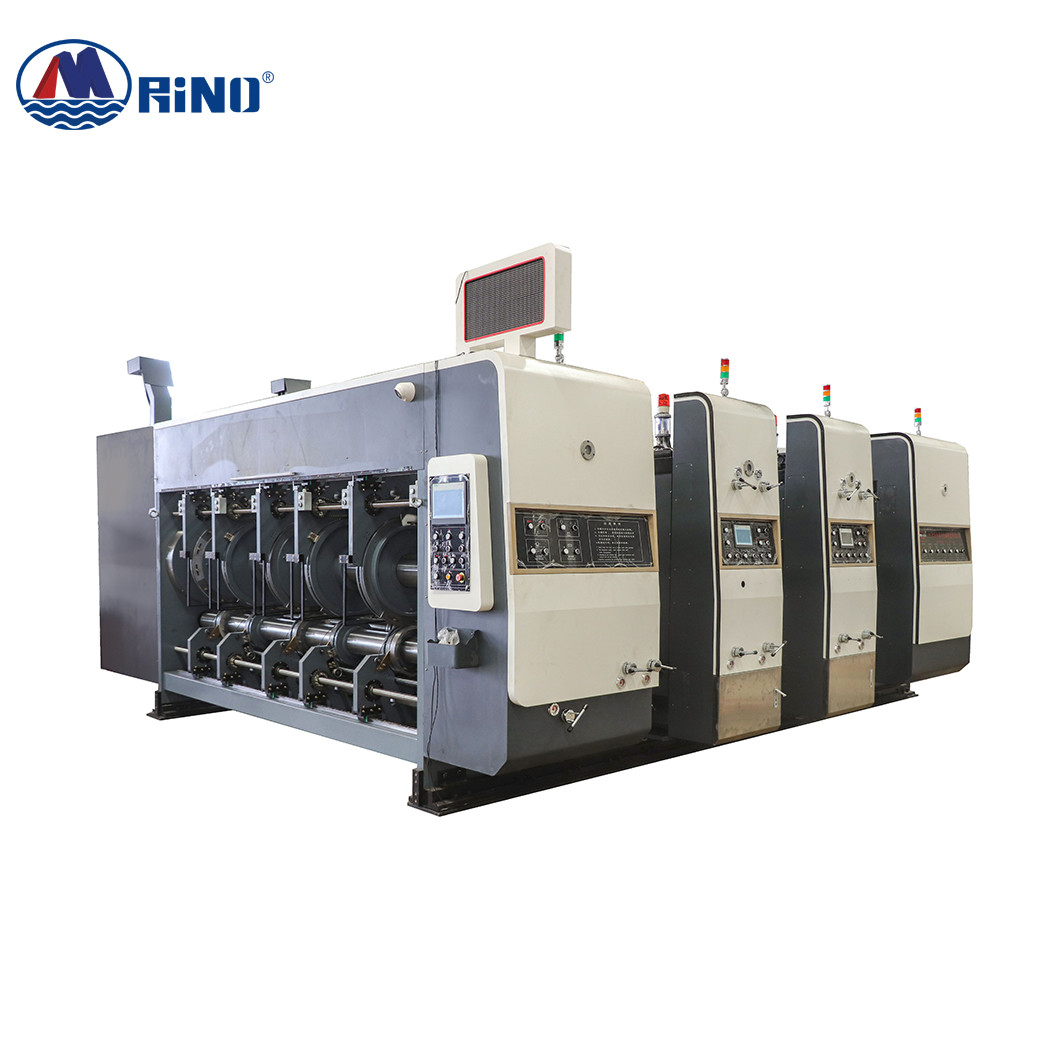

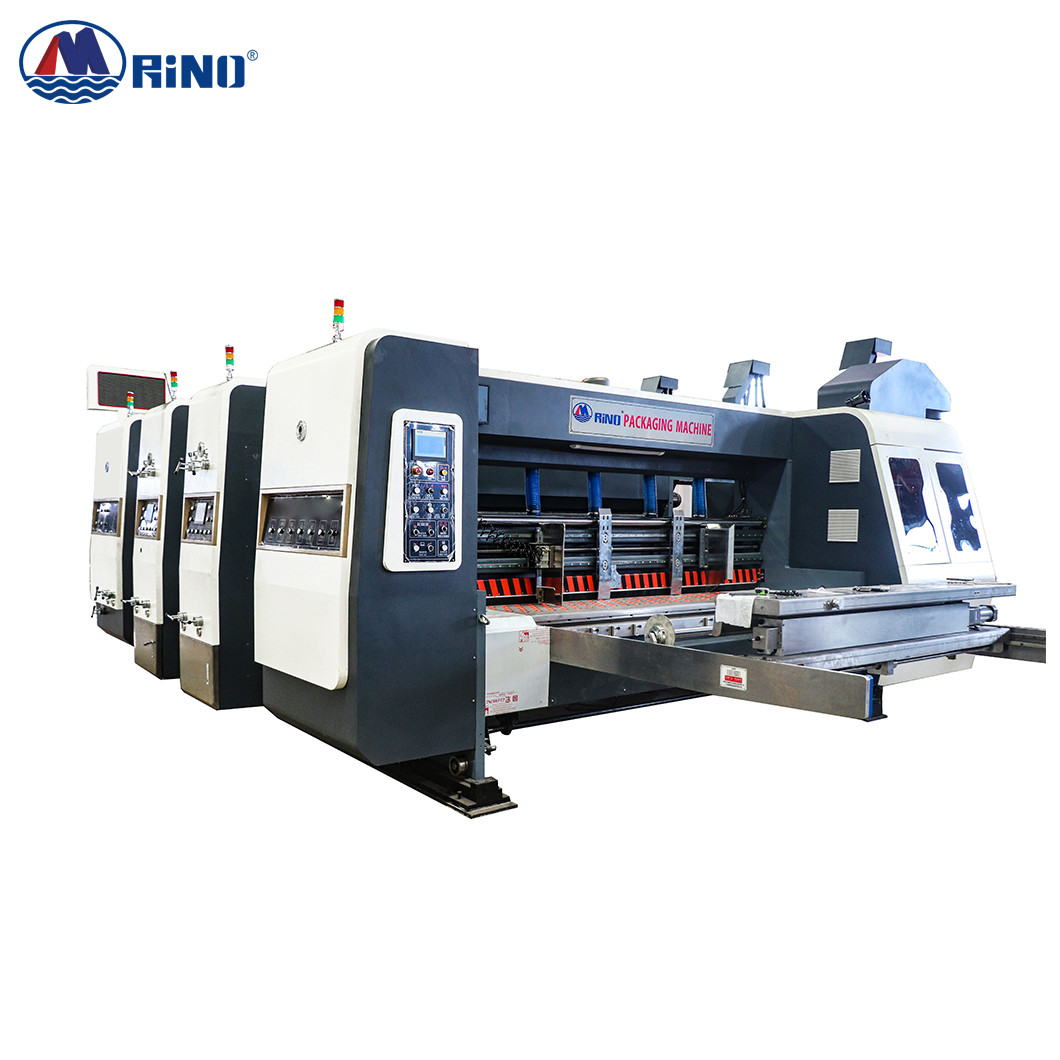

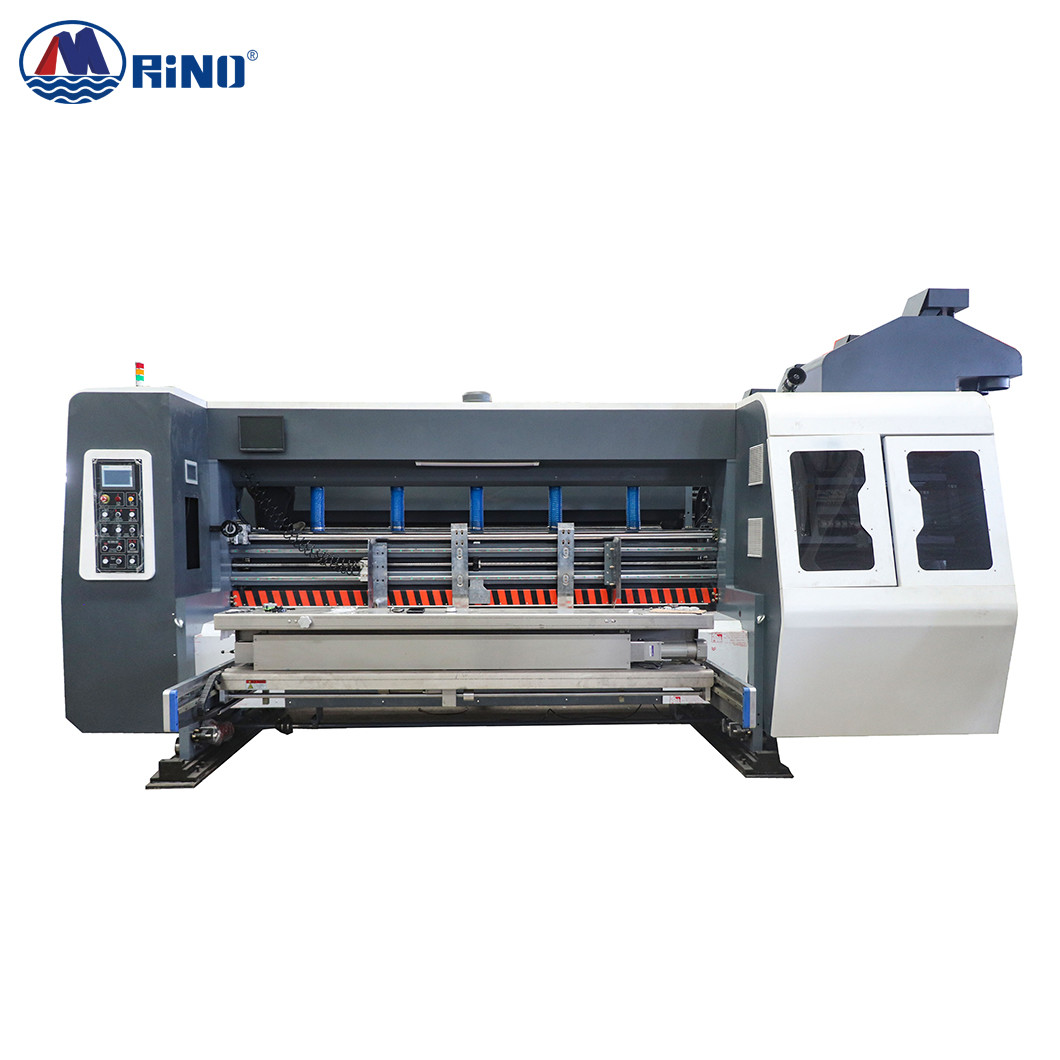

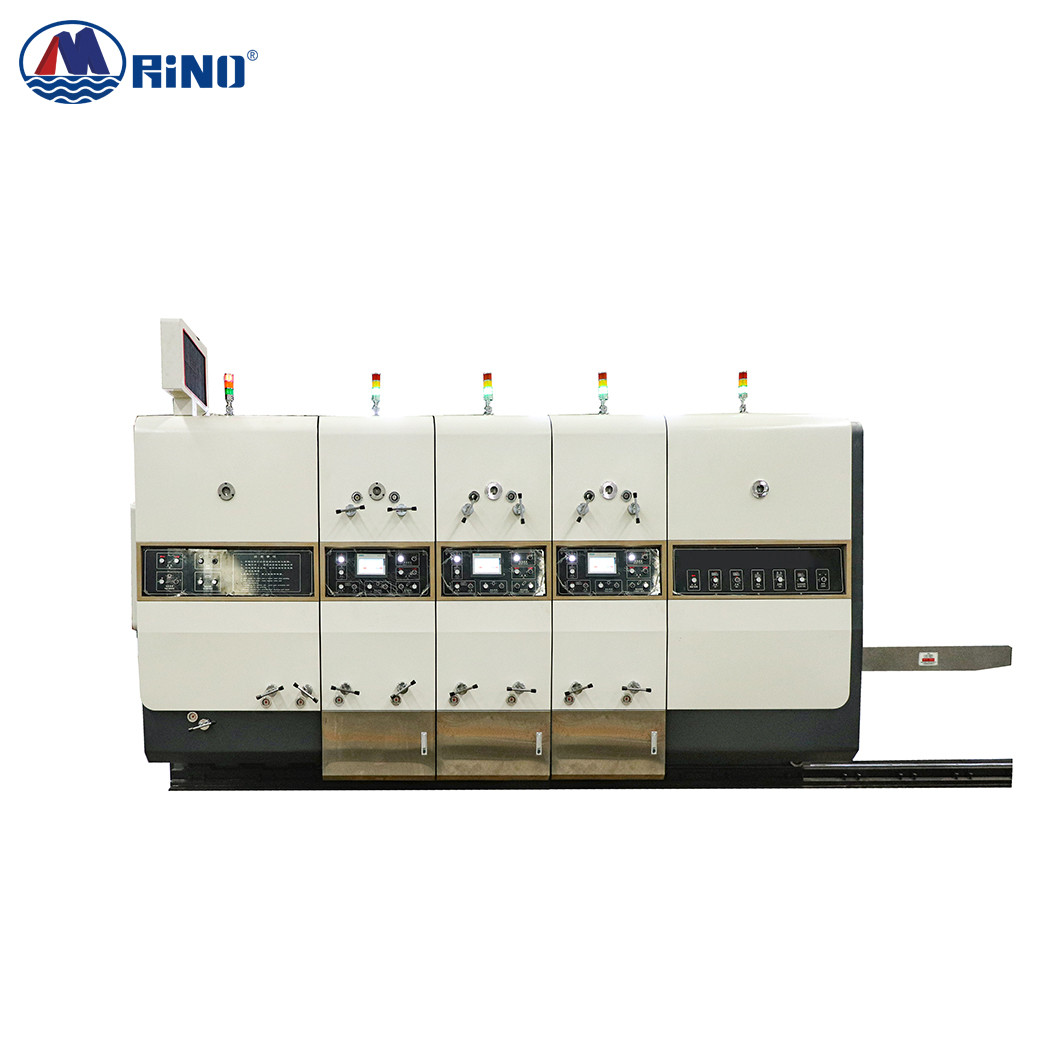

4500mm Carton Box 3 Color Flexo Printing Machine With Die Cutting Stacking
Box Flexo Printing Machine Introduction
1. Advanced scientific design concept, European CE certification, independent computer control.
2. Gap adjustment and phase adjustment are controlled by computer.
3. The main gear is made of high-quality steel, imported from Taiwan.
4. All electrical, electronic and pneumatic components adopt European standards.
5. Suitable for dot printing on coated paper, or cardboard printing.
6. Can be used with folder gluer box machine.
Parameter of Carton Flexo Printing Machine
| Model | HP-LD2500 |
| Width | 4500mm |
| Maximum speed(pcs/min) | 150 |
| Wallboard thickness(mm) | 60 |
| Gear thickness(mm) | 60 |
| Maximum paper size(mm) | 2500 X 4200 |
| Maximum printing size(mm) | 2500 X4000 |
| Standard printing plate thickness(mm) | 3.2---7.2 |
| Cardboard thickness(mm) | 3---12 |
| Precision(mm) | Tinted accuracy ±0.5, Slotting accuracy±1.5, Die cutting accuracy ±1.5 |
| Power (kw) | 38 |
| Total power(kw) | 45 |
Main units
|
|
Paper feeding unit
1. The paper feeding adopts the most advanced servo pressure free leading edge paper feeding technology, and the material of the paper feeding roller shaft is bearing steel.
|
|
|
Printing unit
The ink pump is a one-way diaphragm air-pressure pump, which can recover the accumulated water in the pump and the pipe with a filter and an ink circulation system. (Note: When the doctor blade ink control system is optional, it is equipped with a double-acting diaphragm pump.) Automatic sensor detection ink volume system, ink abnormal alarm, including warnings and alarm bells.
|
|
|
Die Cutting Unit
The die-cutting phase adopts electric digital 360° adjustment, and the equipment can be adjusted during operation and stop.
|
Packaging&shipping
FAQ
1. Q:What is the machine warranty?
A: one year.
2. Q:What is the production time while placing order?
A: About 20 days
3. Q:What is the delivery time?
A: 40-60 days after get the payment.
4. Q:Can your company handle shipping for customers?
A: Yes, just give us destination sea port or container yard
5. Q:Does the packing strong?
A: Yes, all packages are double-checking before delivery
6. Q:Do you have machines in stock?
A: for standard model, we have a large quantity in stock. For special model, we need 20-30 days to produce it for you.
