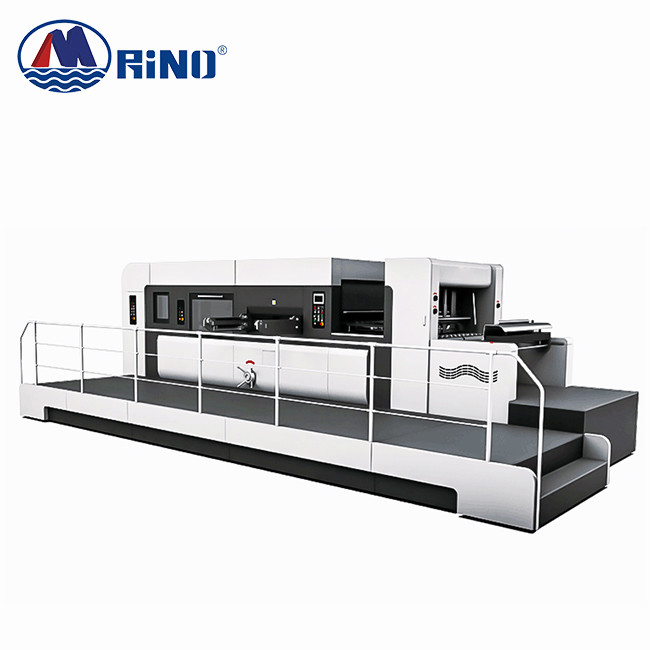

Corrugated Board Automatic Carton Box Die Cutting Machine Lead Edge Feeding

Product Details:
Place of Origin: Shandong,China
Brand Name: RINO
Certification: CE
Model Number: HD-L1500
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiation
Packaging Details: Wrapped with film or in wooden case
Delivery Time: 40-60 Working Days After Deposit
Payment Terms: L/C, T/T
Supply Ability: 10 Set/Month
  • Detail Information
  • Product Description

Detail Information

Name: Corrugated Board Automatic Carton Box Die Cutting Machine Lead Edge Feeding Maximum Paper Size: 1500×1100mm
Minimum Paper Feeding Size: 500×420mm Die Cutting Accuracy: ±0.5mm
Maximum Speed: 5500pcs/h Total Power: 38KW
Total Weight: 30 T Minimum Front Scrap Size: ≥8mm
High Light:

Servo Motor Carton Box Cutter

,

Lead Edge Feeding Cardboard Box Cutter

,

Lead Edge Feed Carton Box Cutter

Product Description

Corrugated Board Automatic Carton Box Die Cutting Machine Lead Edge Feeding Price

Carton Box Die Cutting Machine Introduction

1. Servo motor drive is adopted to realize the speed reduction of paper in place and improve the stability of paper feeding. Ensure that the paper is accurately positioned, with a set of side positioning pushers on the left and right sides.

2. High-quality wear-resistant conveyor belts, paper rollers and rubber rollers can adapt to support plates of different thicknesses.

3. The independent paper feed roller presses the paper, which is convenient and quick to operate. It can adjust when the paper is in place without stopping the machine during operation.

Carton Box Die Cutting Machine Parameter

Maximum paper size

1500×1100mm



Minimum paper size

500×420mm



Maximum die cutting pressure

300N/c㎡



Maximum die cutting size

1500×1090mm



Suitable paper corrugated board 1- 8.5mm
Power 38KW
Maximum speed 5500pcs/H
Weight 30T
Machine size 11700*5500*2250mm




Main Units


Corrugated Board Automatic Carton Box Die Cutting Machine Lead Edge Feeding 0

Paper feeding unit


1. Adopting a uniquely designed leading edge paper feeding technology device. The front board can be adjusted up and down according to the thickness of the paper.

2. The left and right side barriers can be fine-tuned independently. Using high-pressure blower, the air volume can be adjusted.

3. The wall panels are all cast iron wall panels, which increases the stability of the equipment. The valve core and valve housing use a unique material design,

It is not easy to be deformed and abraded, and its service life is prolonged.



Corrugated Board Automatic Carton Box Die Cutting Machine Lead Edge Feeding 1

Die cutting unit

The degree of automation of the waste removal unit is greatly improved. The upper, middle and lower frames of the waste removal adopt a central positioning system and can realize quick and convenient micro adjustments, which greatly simplifies the operation process. The upper frame can separately fix the stripping needle. Stable and reliable waste edge discharge unit. The progressive opening structure ensures the smooth removal of the scrap edges, and the separate power-driven scrap discharge line device ensures that the paper is discharged smoothly at a fixed speed without accumulation.




Finished Products



Corrugated Board Automatic Carton Box Die Cutting Machine Lead Edge Feeding 2





Our Factory



Corrugated Board Automatic Carton Box Die Cutting Machine Lead Edge Feeding 3

Corrugated Board Automatic Carton Box Die Cutting Machine Lead Edge Feeding 4
