Product Details:
|
|
| Place of Origin: | China |
|---|---|
| Brand Name: | RINO |
| Certification: | CE |
| Model Number: | HD-CR1200 |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 1 Set |
| Price: | Negotiation |
| Packaging Details: | Wrapped with film or in wooden case |
| Delivery Time: | 40-60 Working Days After Deposit |
| Payment Terms: | T/T |
| Supply Ability: | 100 Set/Month |
|
Detail Information |
|||
| Name: | Chain Feeding Semi Automatic Rotary Die Cutting Corrugated Carton Box Making Machine | Maximum Paper Feeding Size: | 1200*2800mm |
|---|---|---|---|
| Thickness Of Feeding Paperboard: | 1-10mm(3-7 Layer) | Power Of Main Motor: | 7500W |
| Maximum Speed: | 60pcs/min | Bearings: | HA,WA,LUO |
| Minimum Paperboard Size: | 350*450mm | Volatge: | 220V/380V |
| High Light: | 1200x2800mm Rotary Die Cutter For Corrugated,60pcs/Min Rotary Die Cutter,Semi Automatic Rotary Die Cutter For Corrugated |
||
Product Description

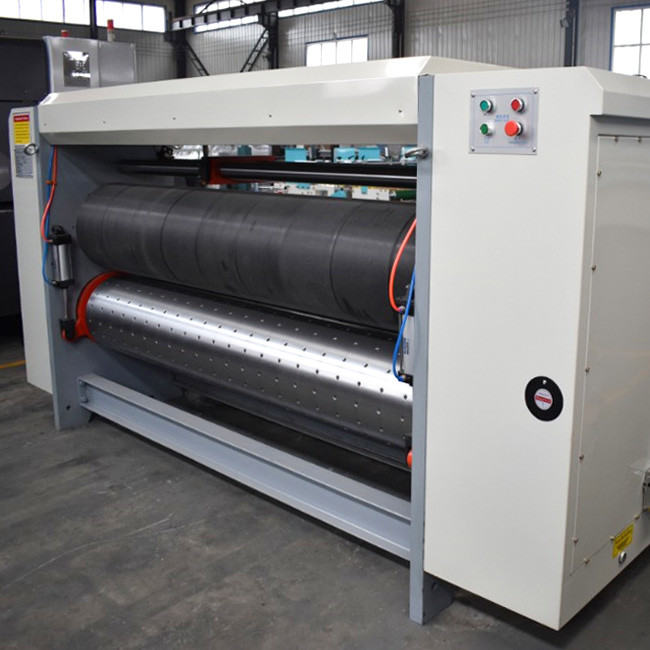

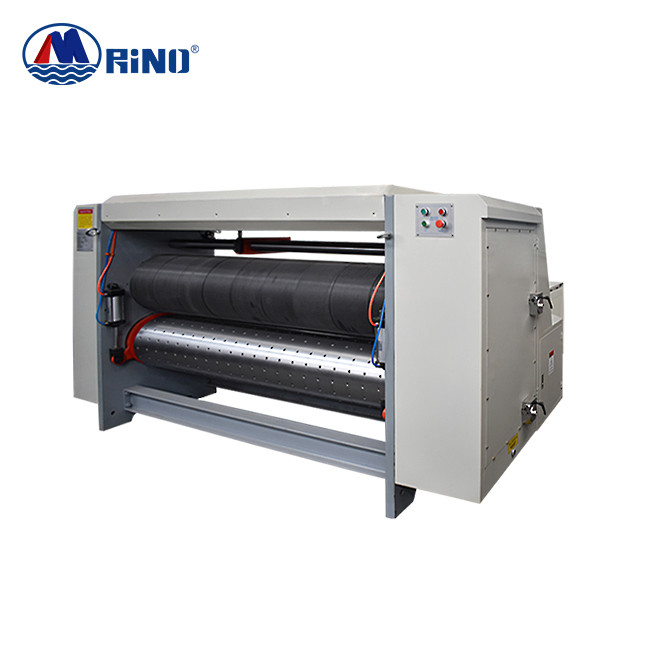

Chain Feeding Semi Automatic Rotary Die Cutting Corrugated Carton Box Making Machine
Machine Features Of Carton Box Die Cutting Machine
1. The chain feeding method and the position of the gear set on both sides ensure the feeding accuracy.
2. Die-cutting roller 360 degree electric adjustment, digital display, electronic counter.
3. High-frequency processing of all gears and automatic spray lubrication greatly improve the operation accuracy and service life.
4. High-quality steel, internal tempering, surface grinding, hard chrome plating, dynamic balance correction, stable operation.
5. American CUE company imported die-cutting rubber pad, easy to install and replace, smooth die-cutting blade, and the service life can reach 12 million times, which greatly reduces the production cost.
6. The die-cut rubber cushion roller adopts a mechanical lateral moving device, about 40mm, controlled by a pneumatic device. The mold moves up and down to extend the life of the rubber pad.
7. Automatic line speed compensation, the high-strength rubber pad wears evenly, and is equipped with a rubber pad repair system, the rubber pad can be repaired multiple times.
8. The function of die-cutting without template can be added.
Parameter Carton Box Die Cutting Machine
| Model | Maximum paper feeding size(mm) | Thickness of feeding paper | Power of main motor(kw) | Speed |
|
HD-CR1200 |
1200*2800 | 1-10mm(3-7 layer) | 7.5 | 60pcs/min |
Finished Products
Packaging&Shipping
