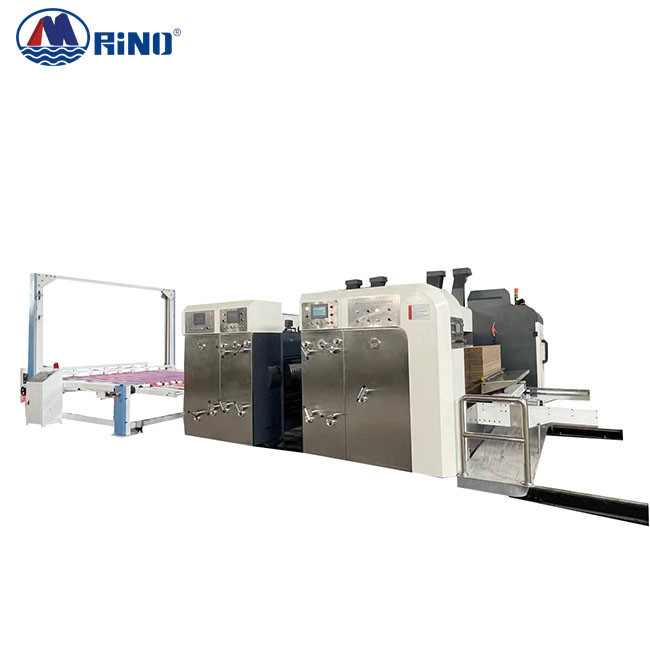

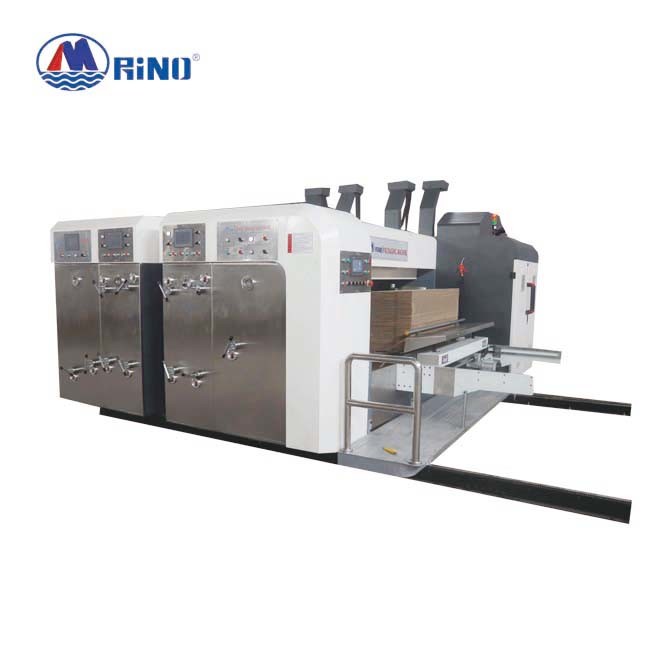

Automatic Carton Box 2 Color Flexo Printing Machine With Slotting

Product Details:
Place of Origin: China
Brand Name: RINO
Certification: CE
Model Number: HP-LD1250
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiation
Packaging Details: Wrapped with film or in wooden case
Delivery Time: 40-60 Working Days After Deposit
Payment Terms: L/C, T/T
Supply Ability: 10 Set/Month
  • Detail Information
  • Product Description

Detail Information

Name: Hot Sale Carton Box 2 Color Flexo Printing Machine With Slotting Factory Price Grade: Automatic
Weight: 16 Ton Power Supply: 220V/380V
Slotting Accuracy: ±1.5mm Printing Precision: ±0.5mm
Total Power: 38 KW Maximum Speed: 180Pcs/Min
Wallboard Thickness: 50mm Gear Thickness: 50mm
High Light:

180Pcs/Min 2 Colour Flexo Printing Machine


Auto 2 Color Flexo Printing Machine


Auto Two Color Flexo Printing Machine

Product Description

Hot Sale Carton Box 2 Color Flexo Printing Machine With Slotting Factory Price



Box Flexo Printing Machine Introduction


This machine adopts vacuum adsorption paper feeding and PLC touch screen control system. Human-machine dialogue, the host adopts frequency conversion motor. The microcomputer controls the 360 phase adjustment, and the speed is automatically given. At the same time, it adopts computer program and plastic box repair equipment, and the feeding accuracy is less than 0.5mm, which has the advantages of high slicing accuracy, fast speed and easy operation.


1. Computer control, automatic adjustment.

2. Precise planetary gear phase adjustment device.

3. The anvil roller can be electrically adjusted in the circumference and transverse direction to prolong the service life.

4. Quickly replace the rubber anvil with good wear resistance.

5. The speed difference compensation system synchronizes the line speed to ensure the precision of die cutting.

6. The anvil roller is repaired by a special device, which can reduce the product cost.


Parameter of Carton Flexo Printing Machine


Model HP-LD1250
Width 2800mm
Maximum speed(pcs/min) 180
Wallboard thickness(mm) 50
Gear thickness(mm) 50
Maximum paper size(mm) 1250 X 2500
Minimum paper size(mm) 350 X 650
Maximum printing size(mm) 1200 X 2500
Standard printing plate thickness(mm) 3.2---7.2
Cardboard thickness(mm) 3---12
Precision(mm) Tinted accuracy ±0.5, Slotting ,die cutting accuracy±1.5
Power (kw) 38
Total power(kw) 45


Main units

Automatic Carton Box 2 Color Flexo Printing Machine With Slotting 0

Paper feeding unit


The lower roller of the feeding roller is made of high-quality seamless steel pipe, which is finely ground, pressed horizontally, and electroplated to increase the friction force of the cardboard. Rubber paper feed roller, the rubber roller is covered with two layers of rubber, the inner layer is 28 degrees, which increases the elasticity of the friction rubber shaft, and the outer layer is 45 degrees, which increases the wear resistance. The pressure adjustment of the feeding rubber roller adopts a two-stage worm gear deceleration adjustment mechanism, which is manually adjusted, and the adjustment value dial shows the adjustment amount.


Automatic Carton Box 2 Color Flexo Printing Machine With Slotting 1

Printing unit


Diameter of printing roller ¢396mm( ¢410mm with plate). Made of high-quality steel, the surface is finely ground, hard chrome plated, dynamic balance correction runs smoothly, and is suitable for high-speed printing. The roller is engraved with reference marks in the horizontal and circumferential directions, which is convenient for hanging and matching printing plate. The ratchet-wheeled fixed plate reel with plate hanging groove is suitable for quick plate change. The horizontal distance adjusted of the printing plate roller is 6mm electric adjustment, the effective adjustment range: 12mm, the printing plate can be corrected when running and stopping.


Automatic Carton Box 2 Color Flexo Printing Machine With Slotting 2

Slotting Unit


The single-axis double-knife slotting structure, the box height adopts the internal tooth structure, so that the lubricating oil is not easy to contaminate the carton. The slotting unit is equipped with an emergency stop device to ensure safety and is equipped with forward and reverse jogging of the whole machine, which is convenient and flexible to operate.







1. Q:What is the machine warranty?
A: one year.
2. Q:What is the production time while placing order?
A: About 20 days
3. Q:What is the delivery time?
A: 40-60 days after get the payment.
4. Q:Can your company handle shipping for customers?
A: Yes, just give us destination sea port or container yard
5. Q:Does the packing strong?
A: Yes, all packages are double-checking before delivery
6. Q:Do you have machines in stock?
A: for standard model, we have a large quantity in stock. For special model, we need 20-30 days to produce it for you.
