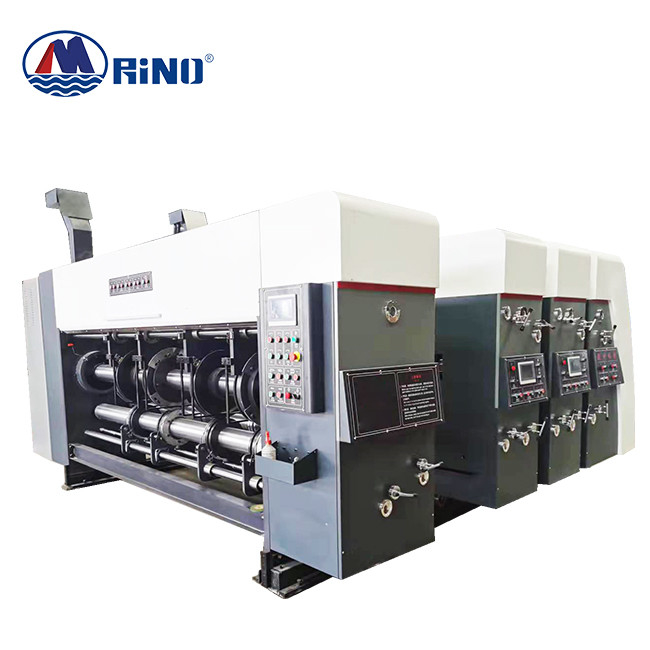

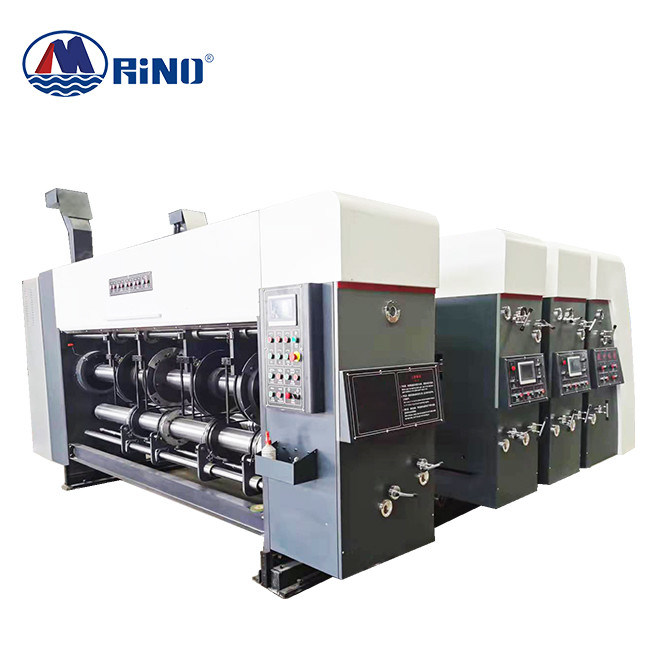

1400mm Corrugated Carton Printing Slotting Machine Two Color

Product Details:
Place of Origin: China
Brand Name: RINO
Certification: CE
Model Number: HP-LD1400
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiation
Packaging Details: Wrapped with film or in wooden case
Delivery Time: 40-60 Working Days After Deposit
Payment Terms: L/C, T/T
Supply Ability: 10 Set/Month
  • Detail Information
  • Product Description

Detail Information

Name: Rino 2 Color 1400mm Carton Box Corrugated Box Flexo Printing Machine With Slotter Exporter Function: Carton Box Printing Cutting Machine
Max. Paperboard Size: 1400*2600mm Min. Paperboard Size: 450x650mm
Max. Paper Printing Size: 1400×2500mm Printing Repeating Dots: 1683
Standard Printing Plate Thickness: 7.2mm Machine Weight: 16T
High Light:

1400mm carton printing slotting machine

,

two color corrugated flexo printing machine

Product Description

Rino 2 Color 1400mm Carton Box Corrugated Box Flexo Printing Machine With Slotter Exporter



Box Flexo Printing Machine Introduction



The anilox roller, rubber roller adopts advanced [cantilever independent quick change] structure, which is convenient for installation and maintenance, and a scraper doctor blade system can be installed later. The anilox roller is made of "Haili or Dalian" with high-quality steel and special technology, which has long operating life, wear resistance and corrosion, and good ink control. Cellular mesh number: 200, 220, 250, 280 lines/inch, which can be optionally installed according to the printed product.



Parameter of Carton Flexo Printing Machine



Inside width of wallboard 2800
Max Machine Speed (sheets/min) 150
Economic Working Speed (sheets/min) 100
Max Feeding Size (mm) 1400×2600
Max Printing Size (mm) 1400×2500
Min Feeding size (mm) 450*650
Color registering accuracy ±0.5
Slotting accuracy ±1.5
Standard Plate Thickness (mm) 3.2-7.2
Suitable Cardboard Thickness (mm) 2 - 11
Min Slotting Distance (mm) Positive Knife 130×130×130×130
  Negative Knife 260×80×260×80
Total Power (kw) 33



Main units



1400mm Corrugated Carton Printing Slotting Machine Two Color 0

Paper feeding unit



With the leading edge of the cardboard as the positioning reference, the influence of the length of the cardboard is greatly reduced. When the cardboard is sent to the pulling wheel, the speed is the same as that pulling wheel, and the transfer accuracy will not be affected by the speed difference.



1400mm Corrugated Carton Printing Slotting Machine Two Color 1

Printing unit



Doctor blade system (optional additional price)

1. The innovative chamber fluid dynamics and ink sealing design of the enclosed double squeegee system have a good ink delivery effect and can save ink. The air pressure or cylinder is adjusted and locked, and the doctor blade wear is automatically compensated, so that the anilox roller and the doctor blade can fit better to obtain the best scraping effect. The Teflon anti-corrosion and anti-sticking coating in the inner chamber makes the ink transfer and cleaning easier. The all-round installation design can replace any old-fashioned rubber roller or single-squeegee system. "Fully enclosed" in the true sense, especially suitable for volatile solvent units, saving solvents and improving the working environment.



1400mm Corrugated Carton Printing Slotting Machine Two Color 2

Die Cutting Unit



1. The die-cutting phase adopts electric digital 360° adjustment, and the equipment can be adjusted during operation and stop.

2. (Optional extra price) Independent servo drive phase adjustment is in place in seconds, faster and more accurate, and it can also test the die-cutting pressure of the cardboard.





Packaging&shipping

1400mm Corrugated Carton Printing Slotting Machine Two Color 3

FAQ

1. Q:What is the machine warranty?
A: one year.
2. Q:What is the production time while placing order?
A: About 20 days
3. Q:What is the delivery time?
A: 40-60 days after get the payment.
4. Q:Can your company handle shipping for customers?
A: Yes, just give us destination sea port or container yard
5. Q:Does the packing strong?
A: Yes, all packages are double-checking before delivery
6. Q:Do you have machines in stock?
A: for standard model, we have a large quantity in stock. For special model, we need 20-30 days to produce it for you.
