Rino Packaging Machinery Co., Ltd

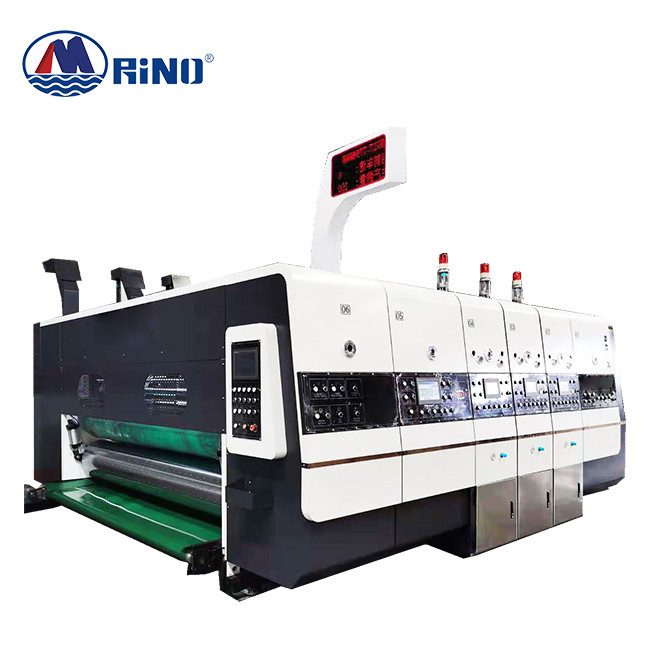

3 Color Carton Corrugated Box Flexo Printing Machine With Die Cutter Slotter

Product Details:
Place of Origin: China
Brand Name: RINO
Certification: CE
Model Number: HP-LD1728
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiation
Packaging Details: Wrapped with film or in wooden case
Delivery Time: 40-60 Working Days After Deposit
Payment Terms: L/C, T/T
Supply Ability: 10 Set/Month
  • Detail Information
  • Product Description

Detail Information

Name: Low Price 3 Color Carton Box Corrugated Box Flexo Printing Machine With Die Cutter Slotter Supplier Function: Carton Box Printing Cutting Machine
Max. Paperboard Size: 1728×2600mm Min. Paperboard Size: 450x850mm
Max. Paper Printing Size: 1728×2500mm Printing Repeating Dots: 1683
Standard Printing Plate Thickness: 7.2mm Machine Weight: 15T
High Light:

3 color corrugated flexo printing machine

,

3 color carton printing slotting machine

Product Description

Rino Low Price 3 Color Carton Box Corrugated Box Flexo Printing Machine With Die Cutter Slotter Supplier



Box Flexo Printing Machine Introduction



Diameter of printing roller ¢550mm. Made of high-quality steel, the surface is finely ground, hard chrome plated, dynamic balance correction runs smoothly, and is suitable for high-speed printing. The roller is engraved with reference marks in the horizontal and circumferential directions, which is convenient for hanging and matching printing plate. The ratchet-wheeled fixed plate reel with plate hanging groove is suitable for quick plate change. The horizontal distance adjusted of the printing plate roller is 6mm electric adjustment, the effective adjustment range: 12mm, the printing plate can be corrected when running and stopping.



Parameter of Carton Flexo Printing Machine



Inside width of wallboard 2800
Max Machine Speed (sheets/min) 150
Economic Working Speed (sheets/min) 100
Max Feeding Size (mm) 1728×2600
Max Printing Size (mm) 1728×2500
Min Feeding size (mm) 450*850
Color registering accuracy ±0.5
Die cutting accuracy ±1.5
Standard Plate Thickness (mm) 3.2-7.2
Suitable Cardboard Thickness (mm) 2 - 11
Min Slotting Distance (mm) Positive Knife 130×130×130×130
  Negative Knife 260×80×260×80
Total Power (kw) 33



Main units



3 Color Carton Corrugated Box Flexo Printing Machine With Die Cutter Slotter 0

Paper feeding unit



The control panel is equipped with a 7-inch human-machine interface color touch screen, which can realize the operation of the paper feeding unit, the printing unit, the slotting unit, and the die-cutting unit. It can control and display the current phase , the speed of the whole machine, the counting and stop to change orders, lifting delay, fixed-speed adjustment of adsorption fan and dust removal fan, slapping time, continuity , interval and other system settings, man-machine dialogue or manual electronic control of each unit dual operating system, fast adjustment speed, safe and easy operation.



3 Color Carton Corrugated Box Flexo Printing Machine With Die Cutter Slotter 1

Printing unit



The printing roller phase planetary gear controls the circumference 360° to adjust, the forward and reverse 360° computer control motor operation adjustment, can be operated or stopped, the touch screen automatically displays the adjustment amount, and automatically adjusts after inputting the size. The printing plate roller is automatically reset to zero. The system is equipped with a hanging position. Click the hanging position button, and the equipment will automatically run to a convenient position for hanging the plate, which improves efficiency. The pedal switch is installed for the positive and negative rotation of the plate cylinder, which is convenient for plate changing and cleaning.



3 Color Carton Corrugated Box Flexo Printing Machine With Die Cutter Slotter 2

Die Cutting Unit



The gap between the die roller and the rubber roller is adjusted electrically, and the air-locked fixed adjustment mechanism is stable and reliable. The rubber roller has a 50mm horizontal travel device and a speed difference compensation system. Each knife is in a different position and wears evenly, which effectively prolongs the service life of the rubber pad.





Packaging&shipping

3 Color Carton Corrugated Box Flexo Printing Machine With Die Cutter Slotter 3

FAQ

1. Q:What is the machine warranty?
A: one year.
2. Q:What is the production time while placing order?
A: About 20 days
3. Q:What is the delivery time?
A: 40-60 days after get the payment.
4. Q:Can your company handle shipping for customers?
A: Yes, just give us destination sea port or container yard
5. Q:Does the packing strong?
A: Yes, all packages are double-checking before delivery
6. Q:Do you have machines in stock?
A: for standard model, we have a large quantity in stock. For special model, we need 20-30 days to produce it for you.
