Product Details:
|
|
| Place of Origin: | China |
|---|---|
| Brand Name: | RINO |
| Certification: | CE |
| Model Number: | HP-LD1728 |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 1 Set |
| Price: | Negotiation |
| Packaging Details: | Wrapped with film or in wooden case |
| Delivery Time: | 40-60 Working Days After Deposit |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 10 Set/Month |
|
Detail Information |
|||
| Name: | Best 2 Color Carton Box Corrugated Box Flexo Printing Machine With Die Cutter Slotter Factory | Grade: | Automatic |
|---|---|---|---|
| Maximum Paperboard Size: | 1728×2600mm | Minimum Paperboard Size: | 450x850mm |
| Maximum Paper Printing Size: | 1728×2500mm | Printing Repeating Dots: | 1683 |
| Standard Printing Plate Thickness: | 7.2mm | Machine Weight: | 15T |
| High Light: | 2 color flexo corrugated box printing machine,2 color corrugated flexo printing machine |
||
Product Description

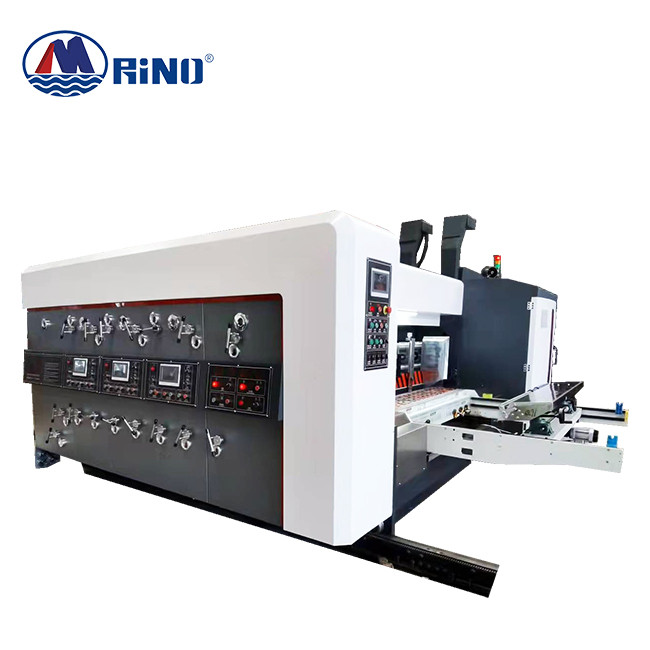

Best 2 Color Carton Box Corrugated Box Flexo Printing Machine With Die Cutter Slotter Factory
Box Flexo Printing Machine Introduction
(1) Adopt high quality seamless delicately processing, dynamic balance adjustment, stable operation
(2) Gear adopt backlash adjustment mechanism, adjustment none-affect gear enunciation, guarantee transmission accuracy
(3) Printing roller can be adjusted for a distance 0-12mm
(4) Embossing roller, feeding shaft can be adjusted PLC electric hoist, roll elastic PLC electric network.
Parameter of Carton Flexo Printing Machine
| Inside width of wallboard | 2800 | |
| Max Machine Speed (sheets/min) | 150 | |
| Economic Working Speed (sheets/min) | 100 | |
| Max Feeding Size (mm) | 1728×2600 | |
| Max Printing Size (mm) | 1728×2500 | |
| Min Feeding size (mm) | 450*850 | |
| Color registering accuracy | ±0.5 | |
| Die cutting accuracy | ±1.5 | |
| Standard Plate Thickness (mm) | 3.2-7.2 | |
| Suitable Cardboard Thickness (mm) | 2 - 11 | |
| Min Slotting Distance (mm) | Positive Knife | 130×130×130×130 |
| Negative Knife | 260×80×260×80 | |
| Total Power (kw) | 33 | |
Main units
|
|
Paper feeding unit
(1) Left and right side of the baffle position electrically adjustable, screw-driven. (2) Front baffle adjust the position of the upper and lower intervals synchronization.
|
|
|
Printing unit
(1) Optional ceramic roller,used(USA)praxair (2) Pneumatic roller automatic lifting device and idle device. (3) Ceramic anilox roller can be selected,350 LPI. (4) Metal roller used (JIANGSU) HAILI
|
|
|
Die Cutting Unit
(1) The rubber roller compensated by motor-driven,control the speed of the rubber roller, range ±3mm (2) Rubber roller cutting structure, keep rubber surface roughness
|
Packaging&shipping
FAQ
1. Q:What is the machine warranty?
A: one year.
2. Q:What is the production time while placing order?
A: About 20 days
3. Q:What is the delivery time?
A: 40-60 days after get the payment.
4. Q:Can your company handle shipping for customers?
A: Yes, just give us destination sea port or container yard
5. Q:Does the packing strong?
A: Yes, all packages are double-checking before delivery
6. Q:Do you have machines in stock?
A: for standard model, we have a large quantity in stock. For special model, we need 20-30 days to produce it for you.
