Product Details:
|
|
| Place of Origin: | China |
|---|---|
| Brand Name: | RINO |
| Certification: | CE |
| Model Number: | HP-LD1728 |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 1 Set |
| Price: | Negotiation |
| Packaging Details: | Wrapped with film or in wooden case |
| Delivery Time: | 40-60 Working Days After Deposit |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 10 Set/Month |
|
Detail Information |
|||
| Name: | 1726mm 2 Color Carton Box Corrugated Box Flexo Printer With Die Cutter | Grade: | Automatic |
|---|---|---|---|
| Maximum Paper Size: | 1728×2600mm | Minimum Paper Size: | 450x850mm |
| Maximum Printing Size: | 1728×2500mm | Printing Repeating Dots: | 1683 |
| Standard Printing Plate Thickness: | 7.2mm | Weight: | 15T |
| High Light: | 1728mm Corrugated Box Flexo Printer,Die Cutter Carton Box Flexo Printer,Auto Corrugated Box Flexo Printer |
||
Product Description

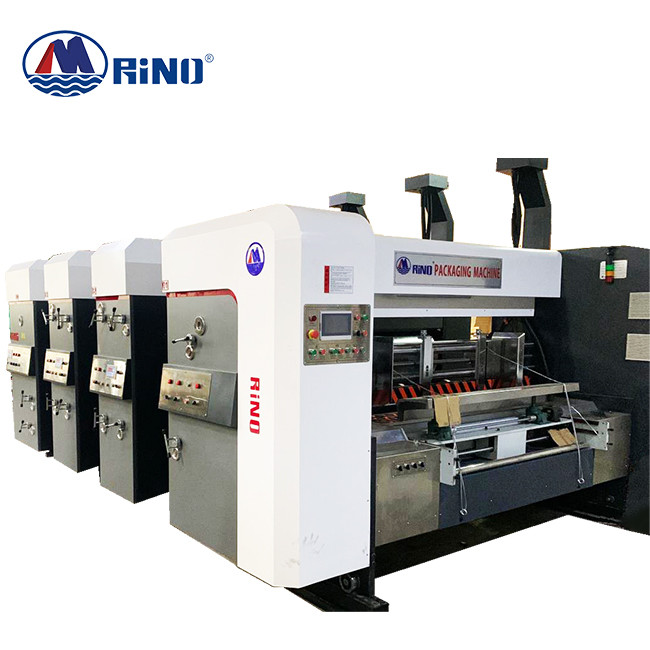

1728mm 2 Color Carton Box Corrugated Box Flexo Printer With Die Cutter
Box Flexo Printing Machine Introduction
(1) With printing plate, outer diameter φ550mm
(2) High quality steel production, surface grinded, hard chromium-plated. Static balance adjustment, stable operation, suitable for high speed running
(3) Roller horizontal direction and circumferential direction with datum line, convenient for align plate
(4) Fixed coil axis, suitable for standard hanging slats, realize rapid change plate
(5) Electric 360° adjust printing roller, automatic digital display adjustment
(6) Installed with foot switch to control plate roller reversing, convenient change plate
Parameter of Carton Flexo Printing Machine
| Inside width of wallboard | 2800 | |
| Max Machine Speed (sheets/min) | 150 | |
| Economic Working Speed (sheets/min) | 100 | |
| Max Feeding Size (mm) | 1728×2600 | |
| Max Printing Size (mm) | 1728×2500 | |
| Min Feeding size (mm) | 450*850 | |
| Color registering accuracy | ±0.5 | |
| Die cutting accuracy | ±1.5 | |
| Standard Plate Thickness (mm) | 3.2-7.2 | |
| Suitable Cardboard Thickness (mm) | 2 - 11 | |
| Min Slotting Distance (mm) | Positive Knife | 130×130×130×130 |
| Negative Knife | 260×80×260×80 | |
| Total Power (kw) | 33 | |
Main units
|
|
Paper feeding unit
Lead-edge suction feeding system, easy operation, high accuracy,adopts lead feeder system). 7.5KW high pressure centrifugal fans, according to the cardboard warping degree of frequency control pressure, to ensure warp cardboard or thin cardboard high-speed accurate transmission.
|
|
|
Printing unit
(1) Planetary gear structure (2) Digital computer 360 ° adjustment, both running and stopping state conditions (3) Printing phase adjustment of PLC computer display adjustment (4) After units separate, automatic reset system (eraser memory) (5) Electrically adjust the lateral position, and the adjustment distance is 5mm in total
|
|
|
Die Cutting Unit
(1) Rubber roller mechanical spiral commutation 40mm move about horizontal structure (2) Die-cutter phase, computer and electric digital control. (3) Horizontal phase, computer and electric digital control, range ±5mm (4) Rubber roller and die roller gap mechanical control (5) Adjust the transfer roller use computer and electric digital control
|
Packaging&shipping
FAQ
1. Q:What is the machine warranty?
A: one year.
2. Q:What is the production time while placing order?
A: About 20 days
3. Q:What is the delivery time?
A: 40-60 days after get the payment.
4. Q:Can your company handle shipping for customers?
A: Yes, just give us destination sea port or container yard
5. Q:Does the packing strong?
A: Yes, all packages are double-checking before delivery
6. Q:Do you have machines in stock?
A: for standard model, we have a large quantity in stock. For special model, we need 20-30 days to produce it for you.
