Product Details:
|
|
| Place of Origin: | China |
|---|---|
| Brand Name: | RINO |
| Certification: | CE |
| Model Number: | HP-LM1400 |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 1 Set |
| Price: | Negotiation |
| Packaging Details: | Wrapped with film or in wooden case |
| Delivery Time: | 40-60 Working Days After Deposit |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 10 Set/Month |
|
Detail Information |
|||
| Name: | 150pcs/min Carton Box 5 Color Flexo Printing Slotting Die Cutting Machine For Corrugated Board Supplier | Grade: | Automatic |
|---|---|---|---|
| Maximum Paper Size: | 1400×2600mm | Minimum Paper Size: | 350×650mm |
| Maximum Printing Size: | 1400×2400mm | Wallboard Thickness: | 50mm |
| Gear Thickness: | 50mm | Type: | Carton Printer Slotter Die Cutter Machine |
| Condition: | New | After-sales Service Provided: | Avaliable |
| Maximum Speed: | 150pcs/min | ||
| High Light: | 5 Color Carton Box Slotting Machine,150pcs/Min Carton Box Printing Slotting Machine,150pcs/Min Carton Box Slotting Machine |
||
Product Description

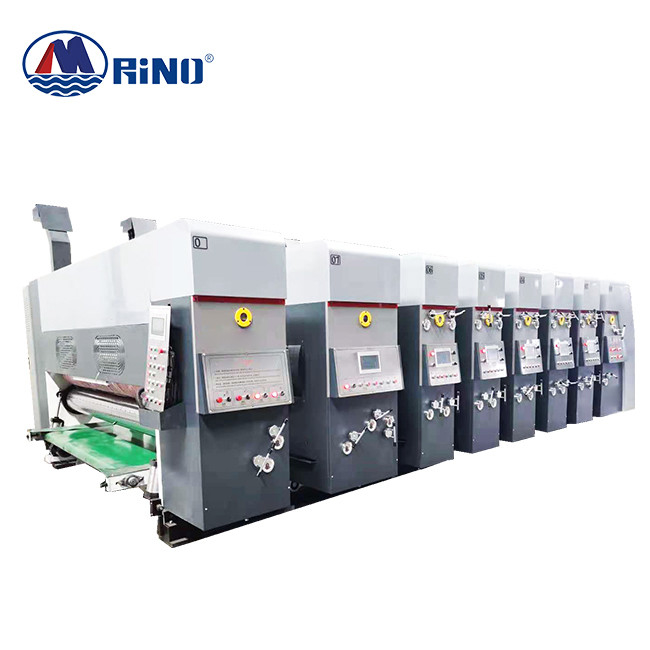

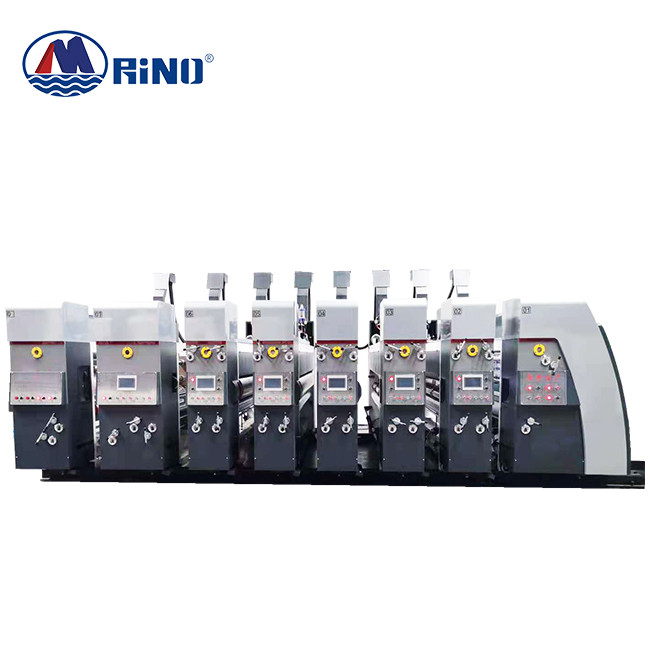

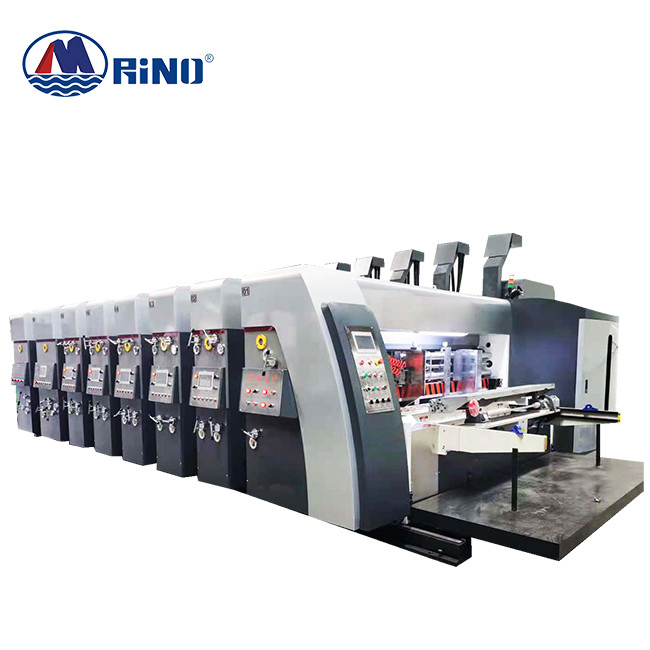

150pcs/min Carton Box 5 Color Flexo Printing Slotting Die Cutting Machine For Corrugated Board Supplier
Box Flexo Printing Machine Introduction
1. All rollers are chrome plated to increase hardness.
2. Spray circulating oil for lubrication.
3. Return to zero and automatically adjust the printing plate.
4. Module design. The multi-color printing part can be combined according to your requirements.
5.. The side baffles of the feeder are electrically adjusted.
Parameter of Carton Flexo Printing Machine
| Model | HP-LM1400 |
|
Maximum paper size |
1400×2800mm |
|
Minimum paper size |
350×650mm |
|
Maximum printing size |
1400×2600mm |
|
Printing repeating dots |
1683 |
|
Standard printing plate thickness |
7.2mm |
|
Cardboard thickness |
2-11mm |
|
Number of stacking columns |
1 |
|
Machine weight |
30-40T |
Main units
|
|
Paper feeding unit
1. Leading edge feed type. 2. Vacuum adsorption assisted paper feeding to ensure high-speed and stable operation. The air volume can be adjusted according to the radian of the paperboard. 3. The front baffle can be electrically adjusted through the scale on it, which is easy to understand. 4. The side baffle can be adjusted electrically, with digital setting and pneumatic device. 5. The clutch of the machine is electrically controlled. With vigilance.
|
|
|
Printing unit
1. Computer digital axis adjustment, adjustment distance ± 10mm 2. The anilox roller is equipped with an automatic lifting device, which can separate the printing board when stopping paper feeding 3. All intervals adopt computer adjustment and digital setting 4. Install the rotary motor of the ink roller to prevent the ink from drying when the host is shut down.
|
|
|
Die Cutting Unit
The gap between die roll and rubber roll is electrically adjusted, and the air lock is fixed. The adjustment mechanism is stable and reliable. The cot has a 50mm horizontal moving device and a speed difference compensation system. The rubber pads at different positions wear evenly, which effectively prolongs the service life of the tool.
|
Packaging&shipping
FAQ
1. Q:What is the machine warranty?
A: one year.
2. Q:What is the production time while placing order?
A: About 20 days
3. Q:What is the delivery time?
A: 40-60 days after get the payment.
4. Q:Can your company handle shipping for customers?
A: Yes, just give us destination sea port or container yard
5. Q:Does the packing strong?
A: Yes, all packages are double-checking before delivery
6. Q:Do you have machines in stock?
A: for standard model, we have a large quantity in stock. For special model, we need 20-30 days to produce it for you.
